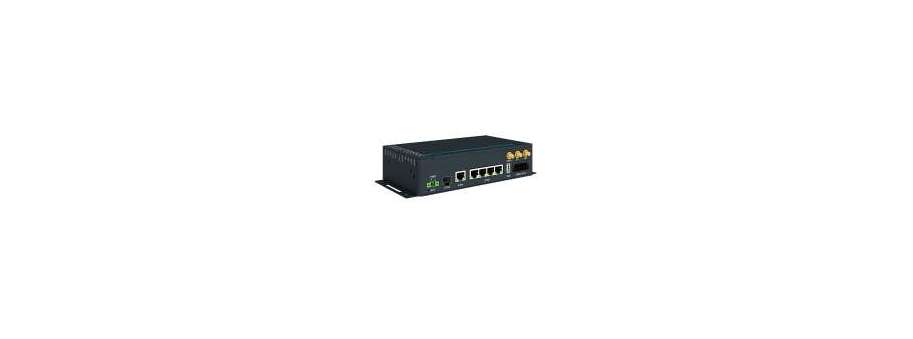

High-Speed 4G Router & Powerful Edge Computing Gateway Advantech ICR-4434

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-4434 Cellular Router, Cat12, 5x ETH  61 917,0
ICR-4434S Мережевий рутер Advantech ICR-4434S Cat12, 5x ETH, POE  68 260,3
ICR-4434W Cellular Router, Cat12, 5x ETH, WIFI  65 332,9
ICR-4434WS Cellular Router, Cat12, 5x ETH, WIFI, POE  71 675,3
ICR-4434W1 Cellular Router, Cat12, 5x ETH, WIFI, low temp  64 844,4
ICR-4434W1S Cellular Router, Cat12, 5x ETH, WIFI, POE, low t  71 187,7

The ICR-4434 is a High-Speed 4G Router & Powerful Edge Computing Gateway focused on the global market. The LTE-A Cat.12 worldwide connectivity with 3G fallback is an ideal choice for high demand data transfer in IoT/M2M applications. Due to the high-speed data transfer of up to 600 Mbps (download) and up to 150 Mbps (upload) this router is an ideal solution for specialized M2M devices and IIoT. It serves well also for the wireless connection of traffic and security camera systems, individual computers, LAN networks, Industrial systems, and various self-service terminals.

  • LTE Advanced Cat.12 Global Cellular Connectivity
  • Download Speed Up to 600 Mbps
  • Quad-core CPU with 1 GB RAM
  • 2× SIM, eSIM Ready, TPM 2.0
  • 5× Gigabit Ethernet (Optional 4× PoE+ PSE)
  • SFP Connector for SFP modules up to 10 Gbps
  • GNSS Receiver, Micro SD Card
  • RS232, RS485, CAN BUS, 2× DI, 2× DO, USB Host
  • Robust metal cover with wall and DIN mount options
  • Wide operational temperature range
  • Optional Dual-Band WiFi

Additional information

System
CPU Quad-Core ARM Cortex-A72, 1200 MHz
Memory RAM - 1024 MB eMMC - 4096 MB (838 MB for Router Apps, 512 MB for customer data)
Watchdog HW Watchdog
RTC Battery backup RTC
TPM Trusted Platform Module (TPM) 2.0

Interfaces
Ethernet 5× Ethernet (4+1), RJ45, 10/100/1000 Mbps *Optional 4× PoE PSE, IEEE 802.3at-2009 (PoE+) and IEEE 802.3af-2003 (PoE) (PoE use is limited – see the ICR-4461 user manual)
SFP Cage 1× SFP cage (up to 10 Gbps)
Serial Lines
  • 1× RS232 (Tx, Rx, GND, RTS, CTS)
  • 1× RS485 (A(-), B(+), GND)
  • 1× CAN (CAN_H, CAN_L)
  • (14-pin terminal block)
I / O
  • 2× Digital Input (3 mA consumption)
  • 2× Digital Output (Open Drain, 48 V / 500 mA)
  • (14-pin terminal block)
USB 1× USB 2.0 Host Connector
MicroSD Card 1× Micro SD Card Slot
Reset Button Reboot / Factory reset
LED Indicators System, 3-level signal strength, Data activity, SIM1/SIM2 status, 3G/4G technology, 2× Input, 2× Output, User, ETH

GNSS
Antenna 1× SMA connector, active (50 mA), passive
Systems GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS
Protocol NMEA
Ac Time-to-First-Fix Cold 25 s, Warm 10 s

Environmental
Power Supply 9 – 48 V DC (2-pin terminal block)
Consumption
  • Without WiFi Idle 4.6 W / Average 5.7 W / Peak 13 W
  • With WiFi Idle 5.8 W / Average 7.2 W / Peak 15 W
  • PoE PSE without WiFi Idle 4.8 W / Average 5.7 W / Peak 128 W
  • PoE PSE with WiFi Idle 6.3 W / Average 7.2 W / Peak 130 W
Sleep Mode Yes, 24 mW, 310 mW for PoE PSE
Operating Temperature
  • -40 to +75 °C
  • -40 to +60 °C - ICR-4434W1, ICR-4434W1S
Storage Temperature -40 to +85 °C
Humidity 0 to 95 %
IP Cover IP30

Physical Characteristics
Dimensions 47 × 109 × 195 mm
Enclosure Robust Metal Case, Grounding Screw
Mounting Wall Mounting, DIN Rail (o ptional)
Weight 1275 g

WiFi - optional (ICR-4434W, ICR-4434WS, ICR-4434W1, ICR-4434W1S)
Antenna 3× R-SMA connectors, 3×3 MIMO
Standards IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz
Data Rate
  • Up to 600 Mbps @ 2.4 GHz
  • Up to 1300 Mbps @ 5 GHz
Security WEP, WPA, WPA2, WPA3, 802.1X
Modes Access Point (unlimited clients), Station, Multirole STA & AP

WiFi - optional (ICR-4434W3, ICR-4434W3S)
Antenna 2× R-SMA connectors, 2×2 MIMO
Standards IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz
Data Rate
  • Up to 300 Mbps @ 2.4 GHz
  • Up to 867 Mbps @ 5 GHz
Security WEP, WPA, WPA2, WPA3, 802.1X
Modes Access Point (unlimited clients), Station, Multirole STA & AP

Cellular Interface
SIM Slots
  • 2× SIM (Mini SIMs – 2FF)
  • 1× eSIM Ready
Antennas 2× SMA connector (1× Main, 1× Diversity)
LTE Parameters
  • Supported LTE-FDD frequency bands: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B66
  • Supported LTE-TDD frequency bands: B38/39/B40/B41
  • Transfer rate: 600 Mbps (DL), 150 Mbps (UL)
HSPA+/UMTS Parameters
  • Supported frequency bands: B1/B2/B3/B4/B5/B8/B19
  • Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)

Standards & Regulations
Radio EN 3001 908-1, EN 301 908-2, EN 301 908-13, EN 303 413, EN 301 893, EN 300 328
EMC EN 301 489-1,EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 610000-6-2, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
Safety EN 62 368-1, IEEE 802.3
Transportation E-mark (ICR-4434W, ICR-4434WS, ICR-4434W3, ICR-4434W3S)
National CE, UKCA
Mechanical EN 60068-2-27, EN 60068-2-64, EN 60529
Climatic EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-30
Environmental REACH, RoHS3, WEEE
Cellular Module Approvals*

Regulatory: GCF, CE, FCC, PTCRB, IC, Anatel, CCC, NCC, KC, JATE/TELEC, RCM, ICASA, Carrier: Vodafone Global, Deutsche Telekom, British Telecom, Telefonica Spain, TIM, Verizon, AT&T, FirstNet, T-Mobile, Rogers, Telus, NTT Docomo, Telstra

*- Approvals are valid for the integrated cellular module inside the router only. Cellular module approvals are not always applicable for the whole router – see “Standards and Regulations” chart for complete router approvals available. **- Models having ICR-4434W1, ICR-4434W1S order codes have no E8 certification.
