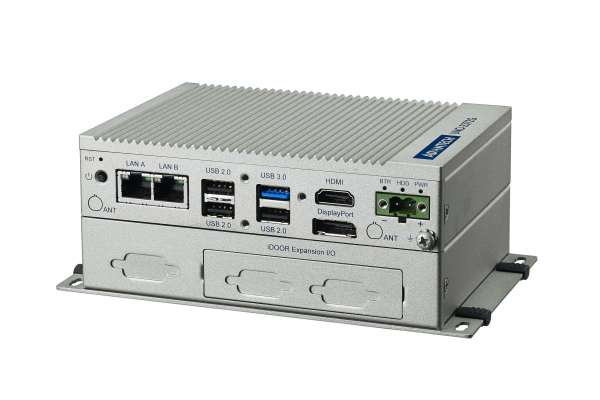

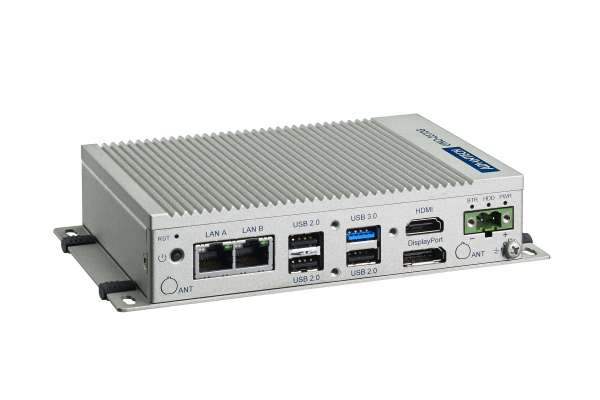

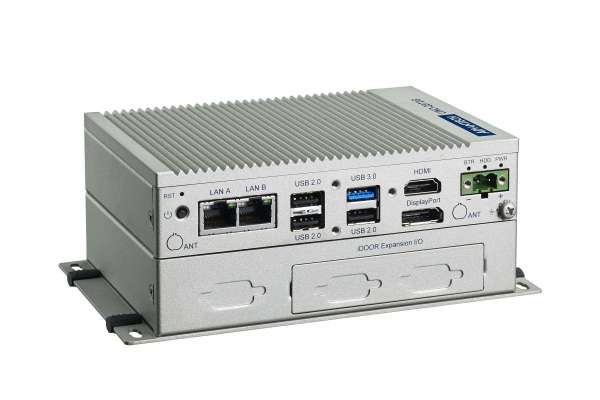

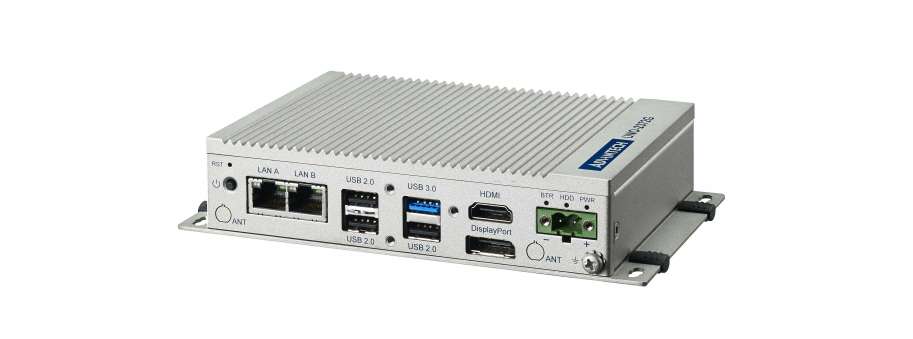

Intel Atom/Celeron Small-Size Modular Box Platform with 2 GbE,4 USB, 4 COM, 2 x mPCIe, HDMI, DP Advantech UNO-2372G
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UNO-2372G-J121AU | Компактний промисловий комп'ютер Advantech UNO-2372G Single stack, J3455,4G RAM,2LAN,4COM,2mPCIe | 39 988,1 | |
| UNO-2372G-J021BE | Компактний промисловий комп'ютер Advantech UNO-2372G J1900, 4G w/2xLAN,4xCOM,1xmPCIe,1xmSATA, i8119i | 41 583,1 | |
| UNO-2372G-E021BE | Компактний промисловий комп'ютер Adavntech UNO-2372G E3845, 4G RAM w/2xLAN,4xCOM,1xmPCIe,1xmSATA | 41 583,1 | |
| UNO-2372G-J121AE | Компактний промисловий комп'ютер Advantech UNO-2372G Single stack, J3455,4G RAM,2LAN,4COM,2mPCIe | 36 958,7 | Доступно |

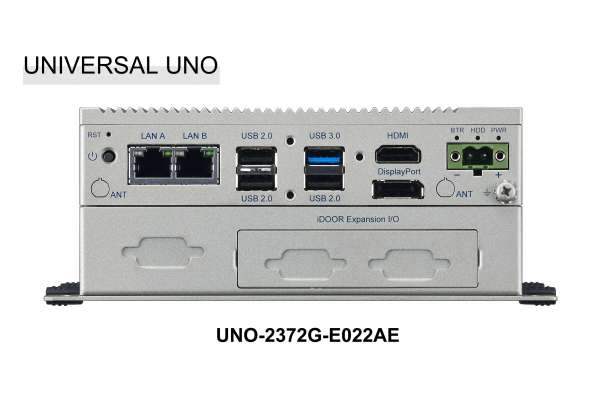

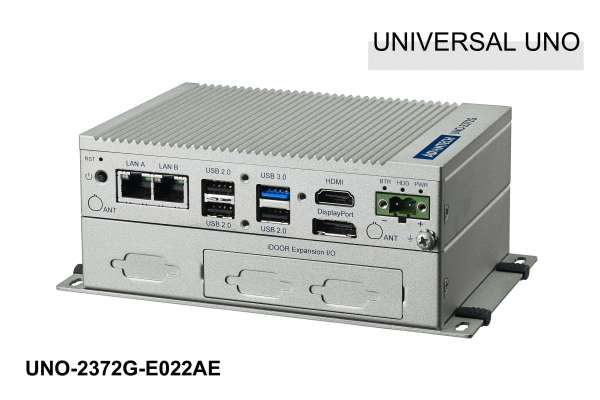

| UNO-2372G-E022BE | E3845, 4G RAM w/2xLAN,4xCOM,1xmPCIe,2xiDOOR | 44 544,3 | |
| UNO-2372G-J022BE | Компактний промисловий комп'ютер Advantech UNO-2372G J1900, 4G RAM w/2xLAN,4xCOM,1xmPCIe,2xiDOOR | 43 911,5 | |
| UNO-2372G-J122AE | Компактний промисловий комп'ютер Advantech UNO-2372G Double stack, J3455,4G RAM,2LAN,4COM,2iDoor | 39 988,1 | |
| UNO-2372G-EKBE | Модуль розширення UNO-2372G 2nd stack expansion module | 4 779,7 | Доступно |
| SQF-SMSM4-128G-SBC | Твердотільний диск/накопичувач SQF mSATA 640 128G MLC (0~70°C) | 9 646,5 | |
| 96PSA-A60W24T2-3 | Зовнішнє джерело живлення FSP Adapter AC to DC 100-240V 60W 24V C14 Cord End Terminal 2 Pin (Phoenix) | 1 439,8 | Доступно |
Actual replacement of the UNO-2362 model
Advantech's new generation UNO-2000 series of Embedded Automation Computers are highly ruggedized fanless and modular design. The incredible modularity of UNO-2372G offers numerous performance and cost-saving advantages, including elimination of unnecessary features and expenses, accelerated production and delivery, rapid deployment and integration, reduced system downtime and maintenance costs, and support for future upgrades and expansion. The UNO-2372G’s modular design features optimized I/O and an optional second expansion stack that support Advantech’s iDoor technology. This allows the platform functionalities to be easily extended and customized with the integration of various iDoor modules, including industrial Fieldbus, wireless communication, I/O and peripheral module, to provide purpose-built, future-proof solutions that satisfy specific application requirements.
- Intel Atom E3845/Celeron® J1900 Quad-Core Processors with 4G DDR3L Memory
- Robust and cableless design with high stability

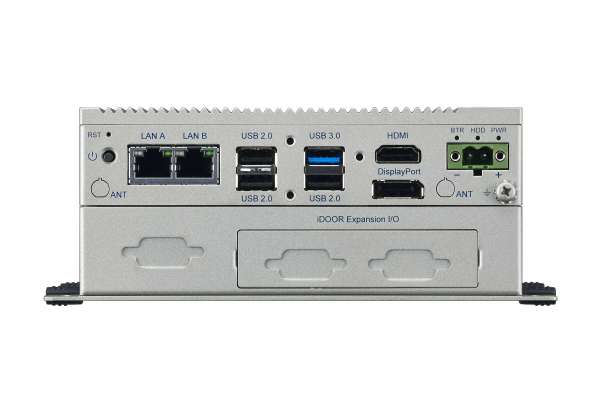

- 2 x GbE, 4 x USB, 4 x RS-232/422/485, 1 x HDMI, 1 x DP
- Modular design with flexibility to extend second stack for function enhancement
- Compact size with fanless Design
- Rubber stopper design for stand mount and optional kit for DIN-rail mount, and VESA mount
- Optional 3G/GPS/GPRS/Wi-Fi Communication
Additional information
|
Part Number
|
UNO-2372G-E021AE
|
UNO-2372G-E022AE
|
|
General
|
|
|
|
Power Consumption
|
30W (Typical), 42W (Max)
|
30W (Typical), 42W (Max)
|
|
Certifications
|
CE, FCC, UL, CCC, BSMI
|
UL, CE, FCC, CCC, BSMI
|
|
Mounting
|
Stand, Wall, VESA (Optional), Din-rail (Optional)
|
Stand, Wall, VESA (Optional), Din-rail (Optional)
|
|
Enclosure
|
Aluminum Housing
|
Aluminum Housing
|
|
OS Support
|
Microsoft® Windows 7, Windows 10, Advantech Linux
|
Microsoft® Windows 7, Windows 10, Advantech Linux
|
|
Weight (Net)
|
1 Kg (2.20 lbs)
|
1 Kg (2.20 lbs)
|
|
Power Requirement
|
10~36 VDC
|
10~36 VDC
|
|
Form factor
|
Small Size
|
Small Size
|
|
Dimensions ( W x D x H )
|
150 x 105 x 35mm (5.8" x 4.2" x 1.4")
|
150 x 105 x 35mm (5.8" x 4.2" x 1.4")
|
|
System Hardware
|
|
|
|
Memory
|
Built-in 4GB DDR3L 1333 MHz (Up to 8GB)
|
Built-in 4GB DDR3L 1333 MHz (Up to 8GB)
|
|
Storage
|
1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)
|
1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)
|
|
Watchdog Timer
|
Programmable 255 levels timer interval, from 1 to 255 sec
|
Programmable 255 levels timer interval, from 1 to 255 sec
|
|
Expansion
|
2 Full-size mPCIe
|
2 Full-size mPCIe
|
|
BIOS
|
AMI EFI64 Mbit
|
AMI EFI64 Mbit
|
|
Processor
|
Intel Atom E3815 1.46GHz
|
Intel Atom E3815 1.46GHz
|
|
Graphics Engine
|
Intel® HD Graphics
|
Intel® HD Graphics
|
|
Ethernet
|
Intel i210 GbE, 802.10av, IEEE1588/802.1AS, 803.3az
|
Intel 82583V GbE, 802.10av, IEEE1588/802.1AS, 803.3az
|
|
LED Indicators
|
LEDs for Power, RTC battery, LAN (Active, Status) and HDD
|
LEDs for Power, RTC battery, LAN (Active, Status) and HDD
|
|
I/O Interface
|
|
|
|
Serial Ports
|

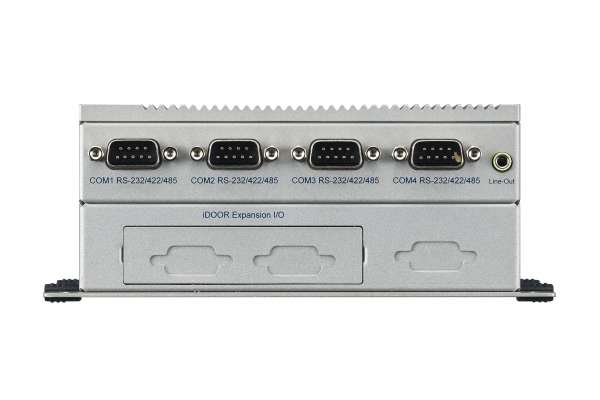

4 x RS232/422/485, DB9, 50 ~ 115.2kbps
|
4 x RS232/422/485, DB9, 50 ~ 115.2kbps
|
|
Displays
|
1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz
|
1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz
|
|
USB Port
|
1 x USB 3.0, 3 x USB 2.0 Compliant
|
1 x USB 3.0, 3 x USB 2.0 Compliant
|
|
Power Connector
|
1x 2 Pins, Terminal Block
|
1x 2 Pins, Terminal Block
|
|
LAN Ports
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
|
Environment
|
|
|
|
Relative Humidity
|
10 ~ 95% @ 40°C non-condensing
|
10 ~ 95% @ 40°C non-condensing
|
|
Vibration Protection
|
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
|
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
|
|
Ingress Protection
|
IP40
|
IP40
|
|
Shock Protection
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
|
Operating Temperature
|
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
|
- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
|
|
Storage Temperature
|
-40 ~ 85°C ( -40 ~ 185°F)
|
-40 ~ 85°C ( -40 ~ 185°F)
|
