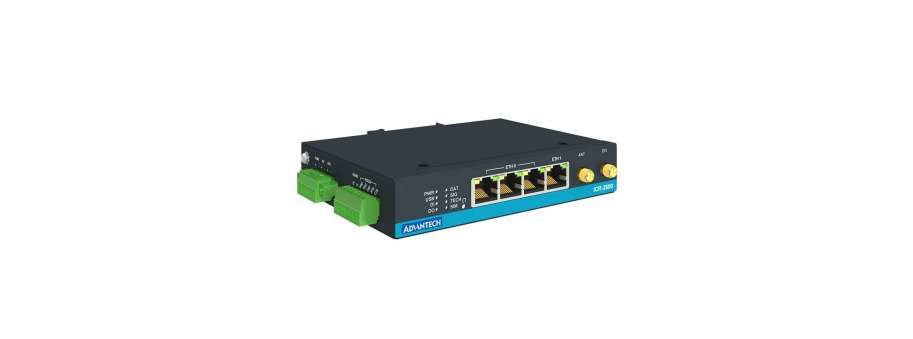

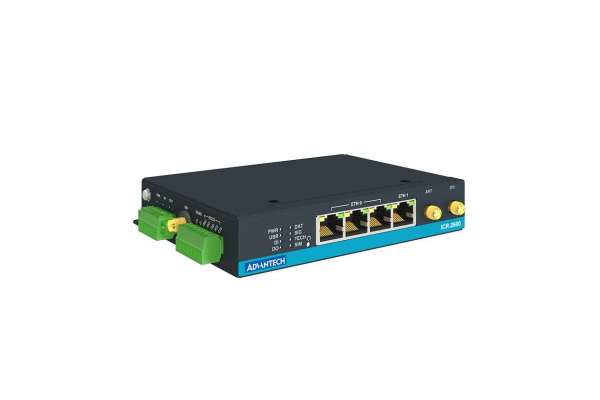

Industrial cellular router EMEA, 4x Ethernet , 1x RS232, 1x RS485, Metal, Without Accessories Advantech ICR-2631

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-2631 Мережевий рутер Advantech EMEA cat4,4xETH, 1x RS232, 1x RS485 NOACC  19 312,6
ICR-2631W Cellular Router, Cat4, EMEA, 4x ETH, WIFI  22 769,3
  • LTE Cat.4 with 3G/2G fallback
  • 2× SIM for redundancy
  • 4× Ethernet 10/100 Mbps (3+1 RJ45)
  • 1× RS232, 1× RS485
  • 1× DI, 1× DO
  • Wide operational temperature range
  • Wall and DIN mount options
  • Linux based OS & SW customization
  • Optional WiFi 802.11n

Industrial cellular router ICR-2631 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. Optional built-in WiFi 802.11a,b,g,n with AP, Client and Multirole modes are available. The router is equipped with four Ethernet ports while three are switched and one is separated. Both 3× ETH0 and 1× ETH1 ports may be independently configurable as LAN or WAN interfaces. The router is also equipped with 1× serial port RS232, 1× RS485, and digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx, and others are supported on the router.

Additional information

System

CPU ARM926EJ-S, 600 MHz
Memory RAM - 128 MB NOR Flash - 64 MB (12 MB for Router Apps, 2 MB for customer data)
Watchdog HW Watchdog
RTC Battery backup RTC

Interfaces

Ethernet 4× Ethernet (3+1), RJ45, 10/100 Mbps, 1.5 kV
Serial Lines

1× RS232 (Tx, Rx, GND, RTS, CTS)

1× RS485 (A(-), B(+), GND)

(7-pin terminal block)

I / O

1× Digital Input (48 V / 0.5 mA)

1× Digital Output (Open Drain, 48 V / 100 mA)

(6-pin terminal block together with PWR)

Reset Button Reboot / Factory reset
LED Indicators System, Signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, Input, Output, User, ETH

Environmental

Power Supply 9 – 48 V DC (6-pin terminal block together with I/O)
Consuption Idle 2.6 W / Average 3.5 W / Maximum 5 W
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Humidity 5 to 95 %, non-condensing
IP Cover IP30

Physical Characteristics

Dimensions 130 mm × 95 mm × 25 mm
Enclosure Metal Case, Grounding Screw
Mounting Wall mount, * Optional DIN Rail mount
Weight 380 g

WiFi - ICR-2631W

Antenna 1× R-SMA connector
Standards IEEE802.11 a/b/g/n 2.4 GHz / 5 GHz
Security WEP, TKIP, AES, WPA, WPA2, 802.1X
Modes Access Point (up to 8 clients), Station, Multirole STA & AP

Cellular Interface

SIM Slots 2× SIM (Micro SIM – 3FF)
Antennas 2× SMA connector (1× ANT, 1× DIV)
LTE Parameters
  • Supported FDD frequencies: B1, B3, B7, B8, B20, B28A
  • Supported TDD frequencies: B38, B40, B41
  • Transfer rate: 150 Mbps (DL), 50 Mbps (UL)
HSPA+/UMTS Parameters
  • Supported frequencies: B1, B8
  • Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)
EDGE/GPRS Parameters
  • Supported frequencies: B3, B8
  • Transfer rate: 296 kbps (DL), 236.8 kbps (UL)
