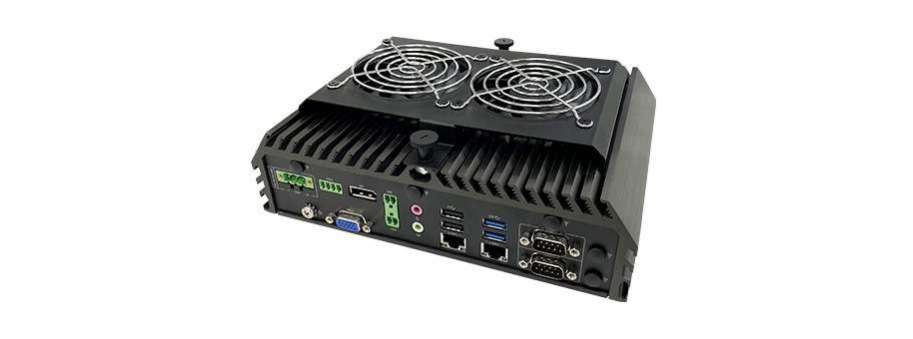

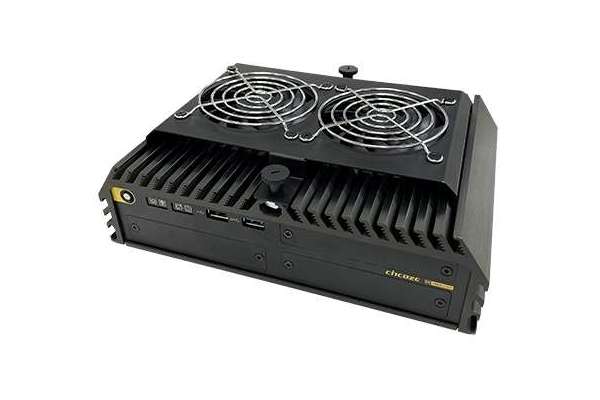

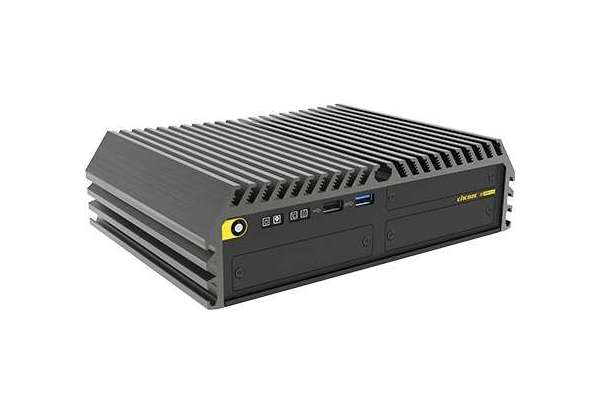

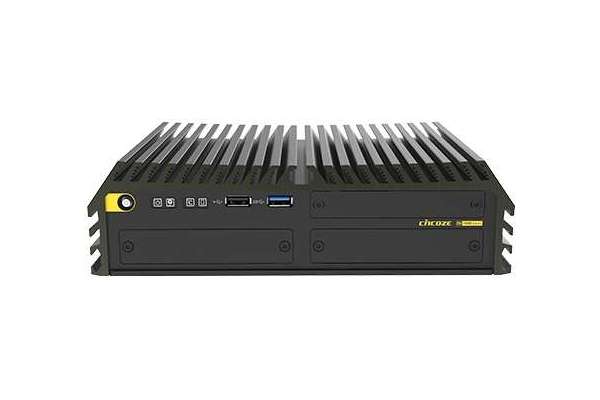

High Performance and Essential Rugged Embedded Computer Cincoze DV-1000 9/8th Gen. Intel® Core™ Series EN50155, MIL-STD-810G

Price and avalability

Partnumber Description Price VAT incl Avalability
DV-1000-R10 Високопродуктивний компактний комп'ютер Cincoze DV-1000 9/8th Generation Intel Core Series Processors, High Performance and Essential Rugged Embedded Computer  40 857,6

The DV-1000 features a 9/8th Generation Intel® Core™ i7/i5/i3 (Coffee Lake-R S series) processor and Intel® H310 chipset, supporting up to 128 GB of DDR4 2666 MHz memory. The DV-1000 provides plenty of power for heavy multitasking workloads and applications.

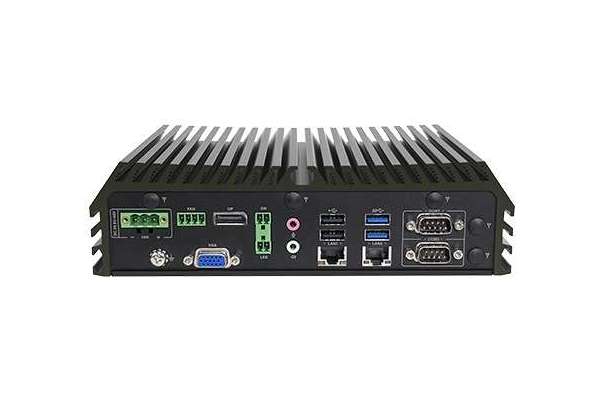

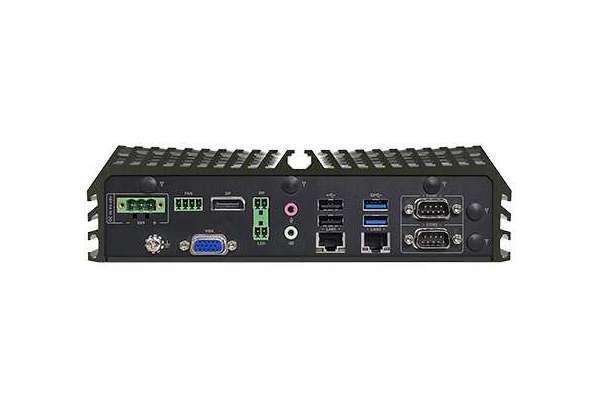

DV-1000 has the most frequently used I/O (LAN, USB, COM ports), analog and digital displays (VGA and DP), and storage options (SATA HDD/SSD, mSATA, or NVMe) sufficient for most industrial applications.

For adding extra I/O or functions Cincoze offers proprietary Combined Multiple I/O (CMI) modules, Control Function Module (CFM), and also Mini-PCIe Expansion Card Module (MEC). The CMI modules support HDMI, DisplayPort, COM and DIO, MEC modules support GbE LAN and USB expansion, and CFM modules have IGN function.

The DV-1000 has been tested to meet a range of industry standards, including MIL-STD-810G to ensure reliable operation under harsh shock and vibration, and EMC compliance EN50155 (EN 50121-3-2 only) for rolling stock deployments

  • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
  • Compact size (224 x 162 x 64 mm)
  • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
  • 1 x M.2 2230 key E for Intel® CNVi/wireless module
  • 2 x Full-size Mini PCIe sockets for module expansion
  • Optional CMI/MEC modules for I/O expansion
  • Wide operating temperature: -40°C to 70°C
  • Military standard (MIL-STD-810G) shock & vibration proof
  • Railway EMC standard EN50155 (EN 50121-3-2 only) certified

Additional information

System

Processor

9th Generation Intel® Coffee Lake-R S Series CPU:
  • Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  • Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  • Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  • Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  • Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  • Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
8th Generation Intel® Coffee Lake S Series CPU:
  • Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
  • Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
  • Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
  • Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
  • Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
  • Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
  • Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
  • Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
  • Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
  • Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
Chipset Intel H310 Chipset
Memory 1x DDR4 2666 MHz 260-Pin SO-DIMM Socket, Supports Up to 32 GB ( Un-buered and non-ECC)
BIOS AMI BIOS

Graphics

Graphics Engine
  • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3
  • Integrated Intel® UHD Graphics 610: Pentium® /Celeron®
Maximum Display Output Supports Dual Independent Display
DP 1x DisplayPort Connector (4096 x 2304@60Hz)
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio

Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

2x GbE LAN, RJ45

  • GbE1: Intel® I219
  • GbE2: Intel® I210
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 3x 5Gbps USB 3.2 Gen1, Type A
  • 3x 480Mbps USB 2.0, Type A

Storage

SSD/HDD 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
mSATA 2x mSATA Socket (SATA 3.0)
M.2 SSD 1x M.2 Key M 2280 Socket, Supports SATA SSD (SATA 3.0) and NVMe PCIe
RAID Do not Support RAID Function

Expansion

Mini PCI Express 2x Full-size Mini-PCIe Socket
SIM Socket 1x SIM Socket
M.2 1x M.2 Key E 2230 Socket, Support Intel CNVi Module
CMI (Combined Multiple I/O) Interface
  • 1x CMI Interface for optional CMI Display Module Expansion
  • 2x CMI Interface for optional CMI I/O Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function

External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power

Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block

Physical

Dimension ( W x D x H ) 224.1 x 162 x 64.2 mm
Weight Information 2.22 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableess Design
  • Jumper-less Design
  • Unibody Design

Reliability & Protection

Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
Surge Protection 2 kV
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF

458,722 Hours

Database: Telcordia SR-332 Issue3, Method 1, Case 3

Operating System

Windows Windows® 10
Linux Supports by project

Environment

Operating Temperature
  • 35W TDP Processor: -40°C to 70°C
  • 65W TDP Processor: -40°C to 60°C (With External Fan Kit)

- With extended temperature peripherals; Ambient with air flow

- According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
Safety IEC/EN 62368-1
