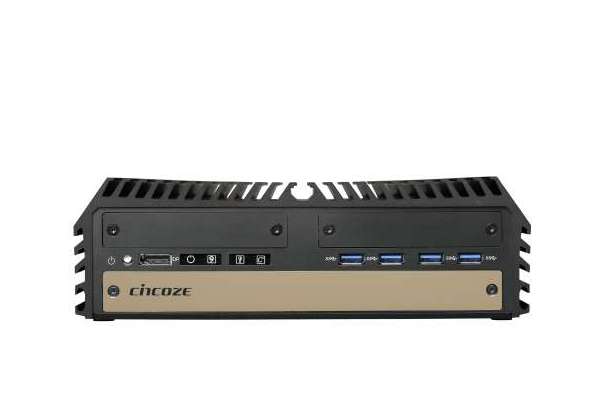

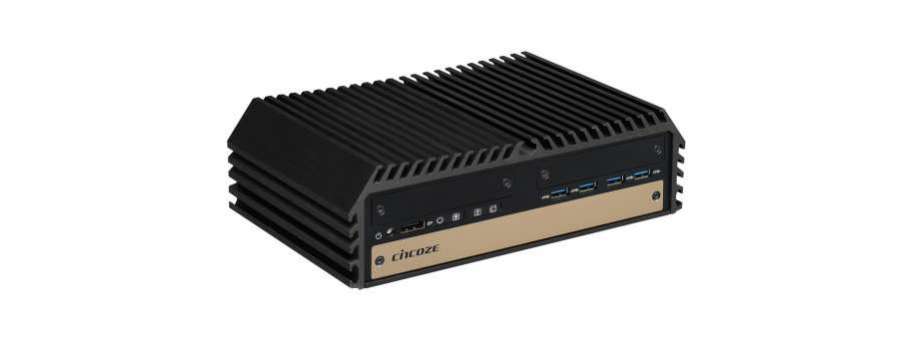

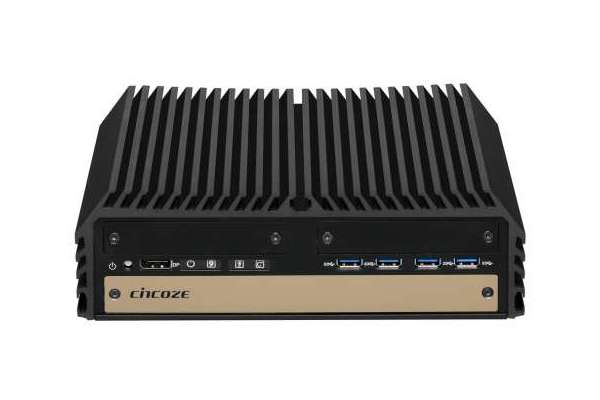

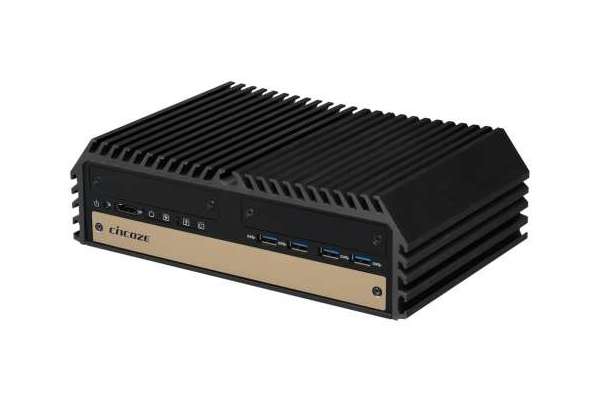

Extreme Performance Modular Workstation DX-1000

7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation DX-1000

Industrial Computer >> High-performance computer systems

 Price and avalability

Manufacturer: Cincoze

The Cincoze DX-1000 is a rugged workstation series based on LGA 1151 socket and Intel® C236 chipset supporting 7th/6th generation Intel® Xeon® and Intel® Core™ Processors, DX-1000 Series supports 4K resolution through Intel® Gen9 graphics engine with two DDR4 SO-DIMM sockets up to 64GB memory which delivers outstanding computing performance for high-end applications. Despite remarkably compact footprint and rich I/O including 1x DVI-I, 2x Display ports, 2x GbE LAN ports, 4x RS232/422/485 serial ports and 8x USB 3.0 ports, Cincoze provides its exclusive CMI (Combined Multiple I/O) and CFM (Control Function Module) technologies to make DX-1000 Series a highly scalable system for specific applications such as Industrial automation, transportation, machine vision, in-vehicle and mobile surveillance. DX-1000 Series can be expanded with powered serial port, optical isolated digital I/O, multiple GbE LAN, M12 connector, Power over Ethernet and power ignition sensing function through versatile modules. Featuring wide operating temperature (-40~+70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), rugged uni-body construction, fanless, cable-less and jumper-less design, the DX-1000 Series is ideal to be deployed in harsh environments.

  • Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors with Intel® C236 Chipset
  • 2x DDR4-2133/2400 SO-DIMM Sockets, up to 64GB Memory
  • Triple Independent Display (1x DVI-I, 2x DisplayPort)
  • 2x 2.5" Hot Swap SATA III HDD/SSD bays, Supports RAID 0/1
  • 3x CMI Interfaces for RJ45/M12 GbE LAN, COM & DIO Expansions
  • 2x CFM Interfaces for Power Ignition Sensing and PoE Functions
  • 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
  • EN50121-3-2 Certified for Railway Application
  • E-Mark (E13, No.10R-0514546) Certification for In-vehicle Application

Price and avalability

Partnumber Description Price VAT incl Avalability
DX-1000-R11 Високопродуктивний компактний комп'ютер Cincoze DX-1000-R11, 7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation  31 159,3

Additional information

Specifications

Processor

 7th Generation Intel® CPU (Kaby Lake-S)

  •  Intel® Core i3-7101TE: 3M Cache, 3.4 GHz, TDP 35W
  •  Intel® Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W
  •  Intel® Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W
  •  Intel® Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W
  •  Intel® Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W
  •  Intel® Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W

 6th Generation Intel® CPU (Skylake-S)

  • Intel® Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W
  • Intel® Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W
  • Intel® Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W
  • Intel® Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W
  • Intel® Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W
  • Intel® Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W
  • Intel® Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W
  • Intel® Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W
  • Intel® Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W

Chipset

Intel® C236

BIOS

AMI 16MB BIOS

Memory

2x DDR4-2133/2400MHz SO-DIMM Sockets, Support up to 64 GB (Un-buffered and Non-ECC type

Graphics

Integrated Intel® HD Graphics supports triple independent display (1x DVI-I, 2x DisplayPort)

Audio

  • Realtek® ALC888
  • High Definition Audio

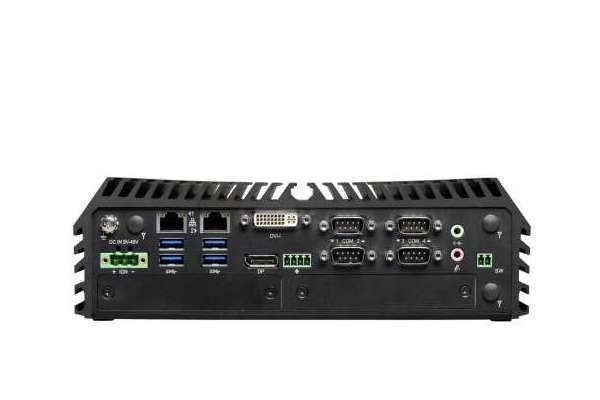

I/O Interface

  • 1x DVI-I Connector (1920 x 1080 @60Hz)
  • 2x DisplayPort Connectors (3840 x 2160 @30Hz)
  • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45

- GbE1: Intel® I219-LM

- GbE2: Intel® I210-IT

  • 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
  • 8x USB 3.0 (Type-A)
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x Reset Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Swit ch
  • 1x Remote Power On/Off Connector, 2-pin Terminal Block
  • 1x External FAN Connector, 4-pin Terminal Block (supports smart fan by BIOS)

Storage

  • 2x SATA III (6Gbps) for 2.5” HDD/SSD
  • 4x mSATA (Shared by Mini-PCIe Socket) (Gen3)
  • Supports S/W RAID 0, 1, 5 & 10

Expansion

  •  Supports CFM (Control Function Module) Technology

- CFM IGN Module, CFM PoE Module

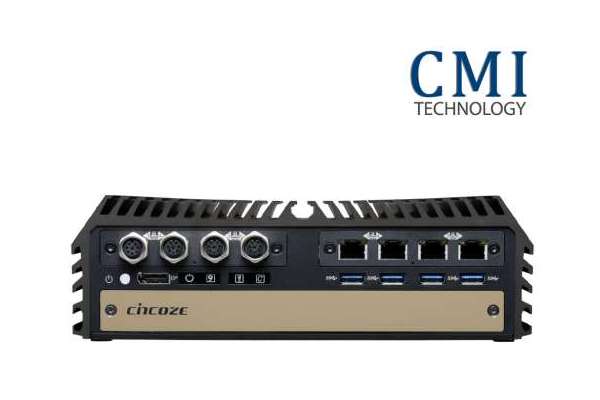

  • Supports CMI (Combined Multiple I/O) Technology

- 4x RJ45 GbE LAN Module, 4x M12 GbE LAN Module (via 2x High Speed CMI Interfaces)

- 2x COM Module, 16x Optical Isolated DIO Module (via 1x Low Speed CMI Interface)

  •  4x Full-size Mini-PCIe Sockets
  •  1x SIM Socket

Other Function

  • Supports Instant Reboot Technology (0.2 sec)
  • SuperCap Integrated for CMOS Battery-free Operation
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset

Power Requirement

  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 3-pin Terminal Block
  • Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)

Physical

  • Dimension (WxDxH): 242 x 174 x 77 mm
  • Weight: 3.6 kg
  • Extruded Aluminum with Heavy Duty Metal
  • Wall mount / VESA mount / DIN Rail Mount / Side Mount
  • Unibody Chassis
  • Fanless Design
  • Jumper-less Design
  • Cable less Design

Protection

  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 3.84 kV (impedance 12 ohm 1.2/50us waveform)

Operating System

  • 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10
  • 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7
  • Linux: Supports by project

Environment

  • Operating Temperature:

7th Generation Intel® CPU (Kaby Lake-S)

- 35W TDP CPU: -40°C to 50°C

- 51W~65W TDP CPU: -40°C to 45°C

- 73W TDP CPU: -40°C to 40°C

6th Generation Intel® CPU (Skylake-S)

- 35W TDP CPU: -40°C to 70°C

- 51W~65W TDP CPU: -40°C to 55°C

- 80W TDP CPU: -40°C to 40°C (With Extended Temperature Peripherals; Ambient with Air Flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 40°C @ 95% RH (non-Condensing)
  • Shock: Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • EMC: CE, FCC Class A, EN50121-3-2, E-Mark (E13, No.10R-0514546)
  • Safety: LVD (EN60950-1)
  • Fire Protection: EN45545-2
  • MTBF: 457,941 Hours Database: Telcordia SR-332 Issue 3, Method 1, Case 3
