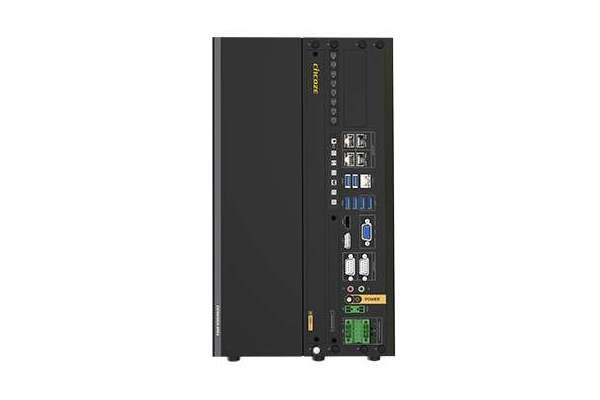

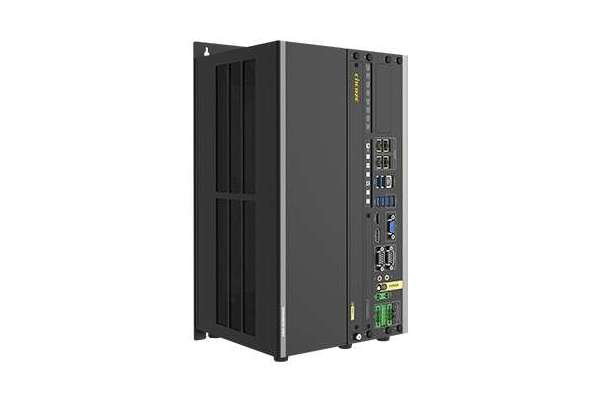

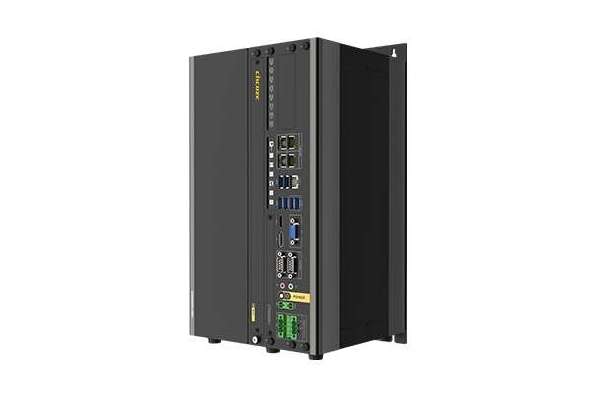

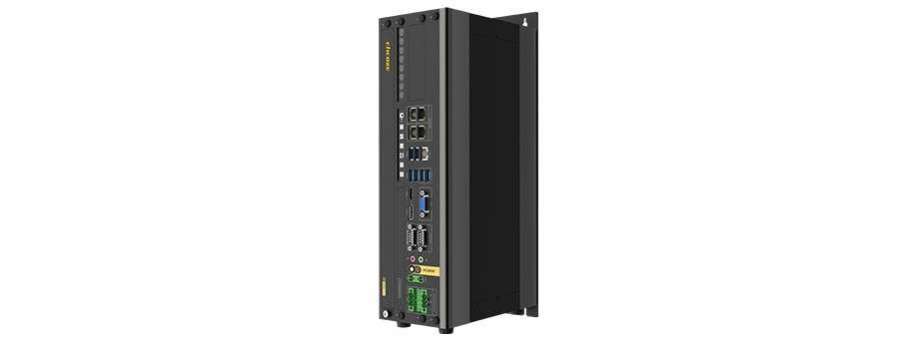

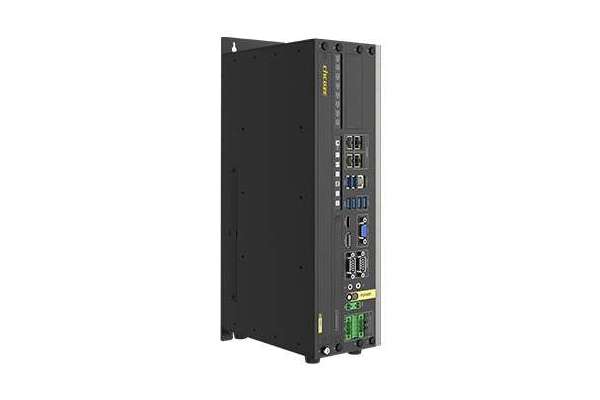

Dual Full-length GPU Expandable PC GP-3000

Dual Full-length GPU Expandable Computer GP-3000 by Cincoze Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)

Industrial Computer >> High-performance computer systems

 Price and avalability

Manufacturer: Cincoze

GP-3000 is an expandable high-performance GPU computer. An Intel® workstation-grade processor and up to two 250W full-length graphic cards provide unparalleled performance within a total 720W power budget. GP-3000 features the unique GPU Expansion Box (GEB) design, whereby a single- or dual-GPU GEB is attached to the main embedded system to add GPU processing power. The additional GPU performance massively accelerates complex industrial AI and machine vision tasks.

GP-3000 is engineered to deliver superior performance, fast data storage, and high-speed I/O connectivity. The combination of high-quality mechanical design and industrial ruggedness (MIL-STD-810G compliance (pending)) brings new possibilities and innovative transformations for AI applications at the edge.

Product features

  • Supports 9th/8th Gen Intel® Xeon®/Core™ Processor (35W / 65W / 80W)
  • 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
  • 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
  • 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
  • 2 x Front Accessible SIM Card Slots for Signal Redundancy
  • CMI Technology for Various I/O Module Expansions
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Versatile Mounting Methods (Wall / Stand / Face-up / 19" Rack Mount)
  • Military Standard Shock & Vibration Proof (pending)

Price and avalability

Partnumber Description Price VAT incl Avalability
GP-3000-R10 9th/8th Gen Intel® Xeon®/Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W  72 847,5

Additional information

Specifications

Processor

9th Generation Intel Coffee Lake-R S Series CPU:

  •  Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W
  •  Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
  •  Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  •  Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  •  Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  •  Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  •  Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  •  Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W

8th Generation Intel Coffee Lake S Series CPU:

  •  Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W
  •  Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W
  •  Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W
  •  Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W
  •  Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W
  •  Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W
  •  Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W
  •  Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W
  •  Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W
  •  Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W
  •  Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W
  •  Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W

Chipset

Intel® C246

Memory

  •  2x DDR4-2666/2400 MHz SO-DIMM Sockets
  •  Supports ECC / non-ECC Type Up to 64 GB

* Xeon/i7/i5: Up to DDR4 2666MHz

* i3/Pentium/Celeron: Up to DDR4 2400MHz

Graphics

  •  Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
  •  Supports Triple Independent Display (VGA/DisplayPort/HDMI)

Audio

Realtek® ALC888, High Definition Audio

BIOS

AMI BIOS

I/O Interface

1x HDMI Connector (4096 x 2160 @30Hz)

1x DisplayPort Connector (4096 x 2340 @60Hz)

1x VGA Connector (1920 x 1200 @30Hz )

5x GbE LAN, RJ45 - GbE1: Intel® I219-LM

  •  GbE2: Intel® I210-IT
  •  GbE3: Intel® I210-IT
  •  GbE4: Intel® I210-IT
  •  GbE5: Intel® I210-IT

 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9

 2x 10Gbps USB 3.2 Gen2, Type A

 4x 5Gbps USB 3.2 Gen1, Type A

 1x Line-out, Phone Jack 3.5mm

 1x Mic-in, Phone Jack 3.5mm

 1x ATX Power On/Off Button

 1x Remote Power On/O, 2-pin Terminal Block

 1x Remote Reset, 2-pin Terminal Block

 1x AT/ATX Mode Switch

 1x Reset Button

 1x Clear CMOS Switch

Storage

  • 4x 2.5“ Front Accessible SATA HDD/SSD Bay (SATA 3.0), Supports Up to 15mm in Height
  • 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
  •  Supports RAID 0 / 1 / 5 / 10

Expansion




PCIe

Optional GPU Expansion Box

- 1 x PCIe x 4 + 1 x PCIe x 16

- 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4

* Please See "Chapter 3 – GPU Expansion Box Specification" for more information

  •  2x Full-size Mini-PCIe Socket
  •  1x M.2 Key E 2230 Socket, Supports Intel CNVi Module
  •  1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD
  •  1x Universal Bracket
  •  2x SIM Socket
  •  7x Antenna Holes

Cincoze Modular Technology

CMI Interface

1 x High Speed CMI (Combined Multiple I/O) Interface

1 x Low Speed CMI (Combined Multiple I/O) Interface

CMI Module

Optional Modules:

- 4x GbE LAN, RJ45

- 4x GbE LAN, M12 A-Coded

- 2x 10GbE LAN, RJ45

- 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9

- 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block

CFM Interface

1x CFM(Control Function Module) IGN Interface

1x CFM(Control Function Module) PoE Interface

CFM Module Optional Module

- 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V

- 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W

MEC Module Optional Modules:

- 2x 5Gbps USB 3.2 Gen1, Type A

- 2x GbE LAN, RJ45

Other

  • 2x Fan Kits ( Air-flow isolated from the electronics )
  • Support 0.2 sec Instant Reboot Technology
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset

Power Requirement

  •  Supports AT/ATX Power Type
  •  Power Input Voltage: 9-48 VDC, Single Power Source
  •  Total Power Budget: 220W
  •  Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
  •  Power Supply:

- Optional AC/DC or DC/DC 24V 480W Power Supply

- Optional AC/DC or DC/DC 24V 1000W Power Supply

Physical

  •  Dimension (WxDxH): 105 x 195 x 370 mm
  •  Weight: 8 kg
  •  Extruded Aluminum with Heavy Duty Metal
  •  Wall Mount / Desktop Mount / 19” Rack Mount / Face-up Mount
  •  Unibody Chassis
  •  Jumper-less Design

Protection

  •  Reverse Power Input Protection
  •  Over Voltage Protection

- Protection Range: 51~58V

- Protection Type: shut down operating voltage, re-power on at the preset level to recover

  •  Over Current Protection: 30A
  •  ESD Protection: +/-8kV (air), +/-4kV (contact)
  •  Surge Protection: 3.84 kV (Impedance 12 ohm 1.2/50us Waveform)

Operating System

  •  Windows® 10
  •  Linux: Supports by Project

Environment


Operating Temperature:

Operating Temperature:

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

* 100% CPU and GPU without thermal throttling

  •  Storage Temperature: -40°C to 85°C
  •  Relative Humidity: 95% RH @ 70°C (Non-condensing)
  •  Shock: MIL-STD-810G (pending)
  •  Vibration: MIL-STD-810G (pending)
  •  EMC: CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark
  •  Safety: LVD (EN62368-1)
  •  MTBF: 441,283hr
