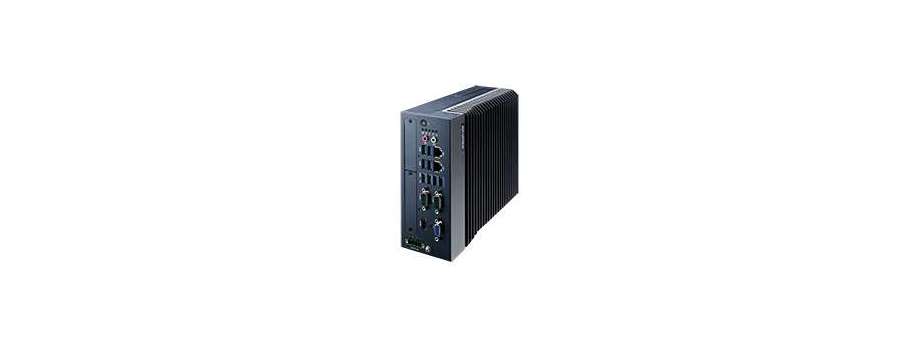

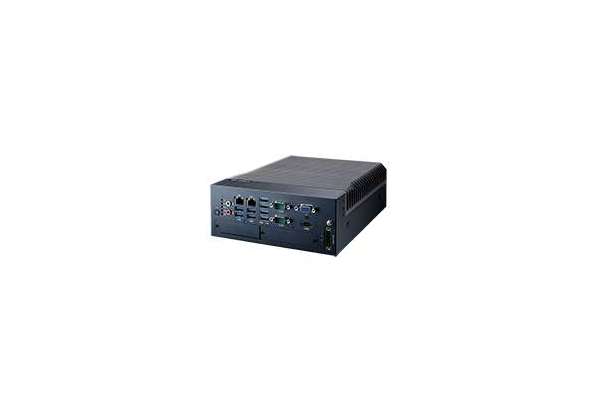

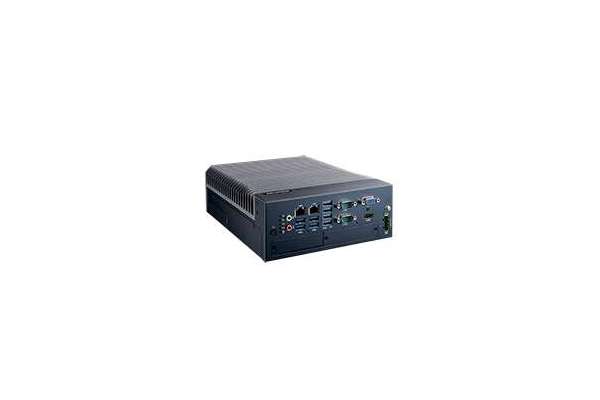

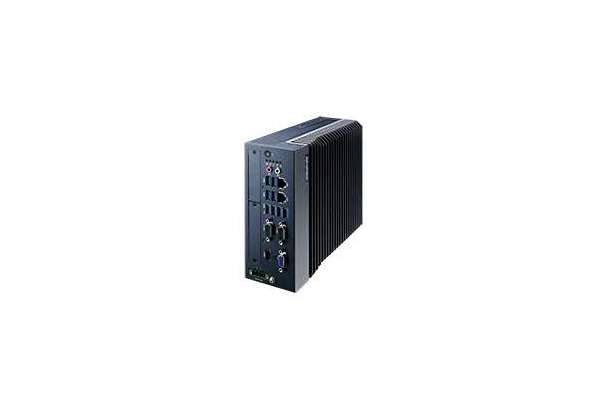

Compact Fanless System MIC-770

Compact Fanless System MIC-770 Advantech with 8th Gen Intel® Core™ i CPU Socket

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Intel® 8th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q370/H310 chipset
  • Wide operating temperature (-10 ~ 50 °C)
  • VGA and HDMI output
  • 2 x GigaLAN, 2 x USB 3.1 and 6 x USB 3.0
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
  • 1 x 2.5" HDD/SSD, and 1 x mSATA
  • 9 ~ 36 VDC input power range
  • Supports 2 x LAN, isolation COMs, and 32-bit GPIO modules
  • Supports Advantech i-Modules
  • Supports Advantech SUSIAccess and embedded software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-770H-00A1 Компактний промисловий комп'ютер Advantech MIC-770H, шасі, H310, Modular IPC  29 668,5
MIC-770Q-00A1 Компактний промисловий коп'ютер Advantech MIC-770Q, Q370, Modular IPC  32 931,2
MIC-770W-20A1 Компактний промисловий комп'ютер Advantech MIC-770W v2, W480E, Modular IPC  33 240,9
MIC-770H-20A1 Компактний промисловий комп'ютер Advantech MIC-770H v2, H420E, Modular IPC  29 945,9

Additional information

Part Number

MIC-770H-00A1 MIC-770Q-00A1
Expansion Slot

Mini-PCIE

1 x miniPCIe with USIM and 1 x mSATA

1 x miniPCIe with USIM and 1 x mini-PCIe/mSATA

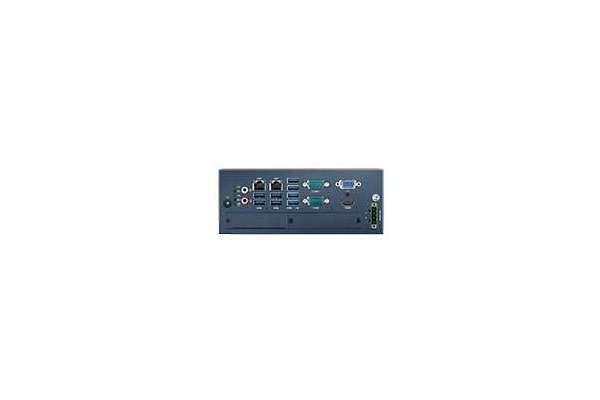

Front I/O Interface

USB3.0

4 6

USB3.1

- 2

USB2.0

4 -

Audio Jack

1xLine-out; 1x Mic-in

1xLine-out; 1x Mic-in

Serial Port

2xRS-232/422/485

2xRS-232/422/485

Internal USB

USB2.0

- 1
Ethernet

Interface

2 x RJ-45

2 x RJ-45

Controller

LAN1: Intel I219V, LAN2: Intel I210IT

LAN1: Intel I219V, LAN2: Intel I210IT

Graphics

Graphic Interface

HDMI + VGA

HDMI + VGA

Physical Characteristics

Dimensions (W x H x D)

78 x 192 x 230 mm

78 x 192 x 230 mm

Weight

2.8 kg (6.17 lbs)

2.8 kg (6.17 lbs)

Power

Power Input

9-36VDC

9-36VDC

Power Type

ATX/AT

ATX/AT

Storage

HDD

1 x internal 2.5" HDD Bay

1 x internal 2.5" HDD Bay

WatchDog Timer

Interval

Programmable 1 ~ 255 sec

Programmable 1 ~ 255 sec

Memory

Max. Capacity

32GB (16GB per DIMM)

32GB (16GB per DIMM)

Socket

2 x 260-pin SO-DIMM

2 x 260-pin SO-DIMM

Technology

Dual Channel DDR4 2400/2666 MHz

Dual Channel DDR4 2400/2666 MHz

Processor System

CPU

Intel Core i3/i5/i7(LGA1151)

Intel Core i3/i5/i7(LGA1151)

Chipset

Intel H310

Intel Q370

Core Number

2/4/6

2/4/6

BIOS

AMI SPI 256 Mbit

AMI SPI 256 Mbit

Frequency

Based on Intel CPU spec

Based on Intel CPU spec

L3 Cache

Based on CPU spec

Based on CPU spec
