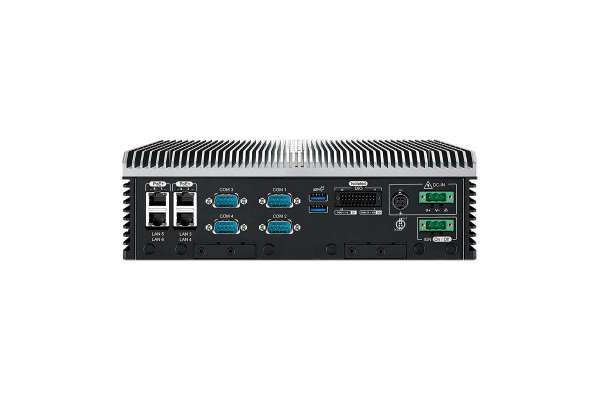

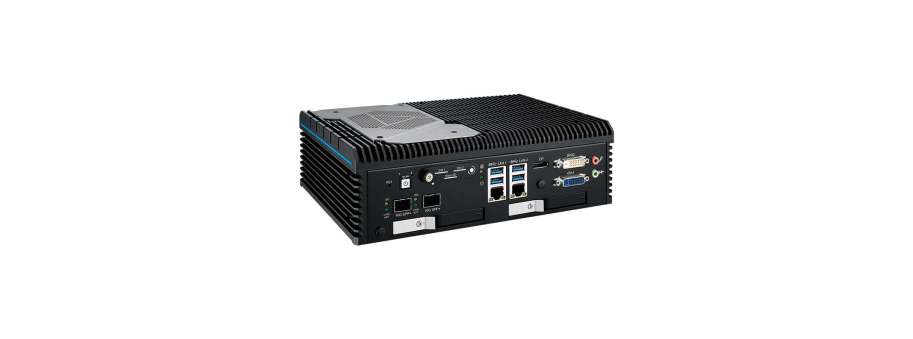

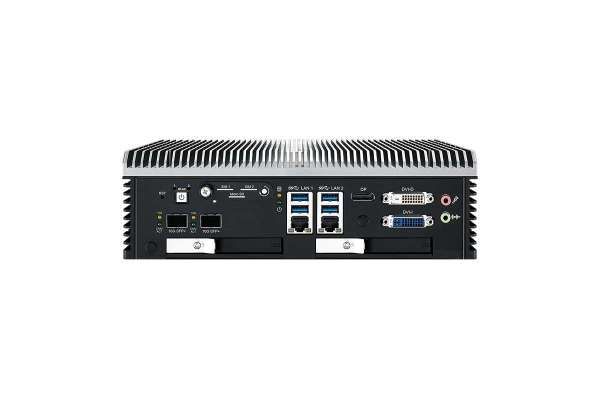

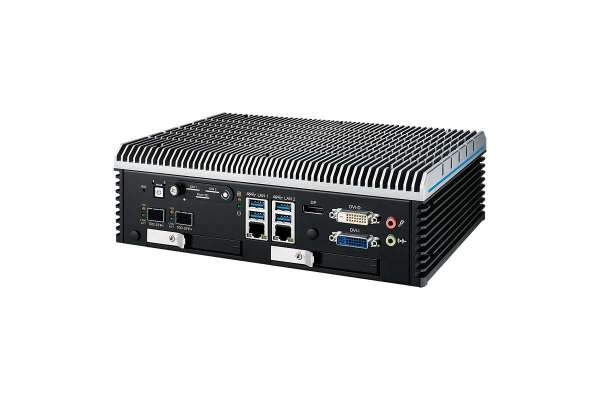

High Performance Embedded System Vecow with ECX-2071/2071F 10th Gen Intel® Xeon® /Core™ i9/i7/i5/i3 (Comet Lake)

Price and avalability

Partnumber Description Price VAT incl Avalability
ECX-2071 Промисловий компактний комп'ютер Vecow ECX-2000, Intel Core i7/ i5/ i3 Processor (Comet Lake-S), 6 GigE LAN with 4 PoE+, 2 10G SFP+, 4 COM, 2 SIM, 6 USB 3.1, 16 Isolated DIO  95 823,0
ECX-2071F Промисловий компактний комп'ютер Vecow ECX-2000, Intel Core i7/ i5/ i3 Processor (Comet Lake-S), 6 GigE LAN with 4 PoE+, 2 10G SFP+, 4 COM, 2 SIM, 6 USB 3.1, 16 Isolated DIO, with CPU fan  98 280,0

Powered by 10th generation 10-core Intel® Core™ i9/i7/i5/i3 processor (Comet Lake), fanless -40°C to 75°C operating temperature, multiple 2.5GigE/10GigE RJ45/SFP+ Fiber LAN, max 6 USB 3.2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input with 80V surge protection, ignition power control, smart circuit protection and rugged reliability in harsh environments, all-in-one integrated features, Vecow ECX-2000 Series Fanless Embedded System is your new generation choices for Factory Automation, Intelligent Vending, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, any Artificial Intelligent oriented AIoT or Industry 4.0 applications.

  • 10-core 10th Gen Intel® Core™ i9/i7/i5/i3 Processor (Comet Lake)
  • 2 DDR4 2933MHz Memory supports up to 64GB, optional with ECC
  • 9V to 50V wide range DC Power Input with 80V Surge Protection
  • 2-port 10G SFP+ supports up to 10Gbps data delivery
  • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
  • Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
  • Expansion : 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe
  • 6-port USB 3.2 supports up to 10Gbps data transfer
  • Front Access : 2 2.5" SSD Tray, 2 Nano SIM Socket, 1 Micro SD Card
  • Supports Configurable Software Ignition Power Control and TPM 2.0
  • Fanless -40°C to 55°C Operating Temperature
  • Optimized user-friendly design for easier system maintenance
  • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Additional information

System

Processor 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S)
Chipset Intel®W480E
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC)

I/O Interface

Serial 4 COM RS-232/422/485 (ESD 8kV)
USB
  • 6 USB 3.2 (External)
  • 1 USB 2.0 (Internal)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED Power, HDD, PoE, Wireless
SIM Card 2 External Nano SIM Card Socket

Expansion

Mini PCIe 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA
M.2
  • 1 M.2 Key B Socket (3042/3052)
  • 1 M.2 Key E Socket (2230)
SUMIT A, B 2 SUMIT Slot (Optional)

Graphics

Graphics Processor Intel® UHD Graphics 630
Interface
  • DVI-I : Up to 1920 x 1080 @60Hz
  • DVI-D : Up to 1920 x 1080 @60Hz
  • DisplayPort : Up to 4096 x 2304 @60Hz

Storage

SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Storage Device
  • 1 Micro SD Card, Push-in/Push-out Ejector
  • ECX-2071F:2 Front-access 2.5" SSD/HDD Tray
  • ECX-2071:2 2.5" SSD/HDD Bracket (Internal)

Audio

Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 14.0
LAN 2 Intel® I210 GigE LAN

PoE

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

10G Ethernet/SFP+ (ECX-2071R/2071)

LAN 7 Intel® X710-BM2 supports IEEE 802.3 10GBASE-T SFP+
LAN 8 Intel® X710-BM2 supports IEEE 802.3 10GBASE-T SFP+

Power

Power Input 9V to 50V, DC-in
Power Interface
  • 3-pin Terminal Block : V+, V-, Frame Ground
  • 4-pin Mini-DIN
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power

Others

TPM Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Software Support

OS Windows 10, Linux

Mechanical

Dimension (W x L x H) 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11")
Weight 3.8 kg (8.38 lb)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)

Environment

Operating Temperature
  • 35W, 65W TDP CPU :-40°C to 55°C (-40°F to 131°F), Fanless
  • 80W, 95W TDP CPU :-40°C to 45°C (-40°F to 113°F), with Fan Sink
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 55°C
Shock
  • IEC 60068-2-27
  • SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
