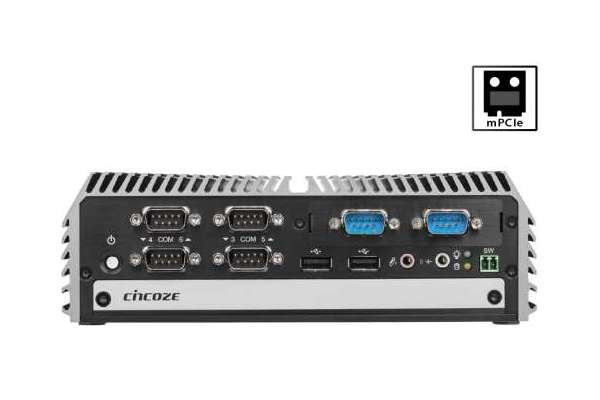

Compact and Modular Rugged Embedded PC on 6th Generation Intel® Core™ Processor (Skylake-U) Cincoze DI-1000

Price and avalability

Partnumber Description Price VAT incl Avalability
DI-1000-i7-R11 Компактний комп'ютер Cincoze DI-1000-i7-R11, 6th Gen. Intel® Core™ i7-6600U High Performance, Compact and Modular Rugged Embedded Computer  83 385,6
DI-1000-i5-R11 Компактний комп'ютер Cincoze DI-1000-i5-R11, 6th Gen. Intel® Core™ i5-6300U High Performance, Compact and Modular Rugged Embedded Computer  70 423,7
DI-1000-i3-R11 Компактний комп'ютер Cincoze DI-1000-i3-R11, 6th Gen. Intel® Core™ i3-6100U High Performance, Compact and Modular Rugged Embedded Computer  58 700,2

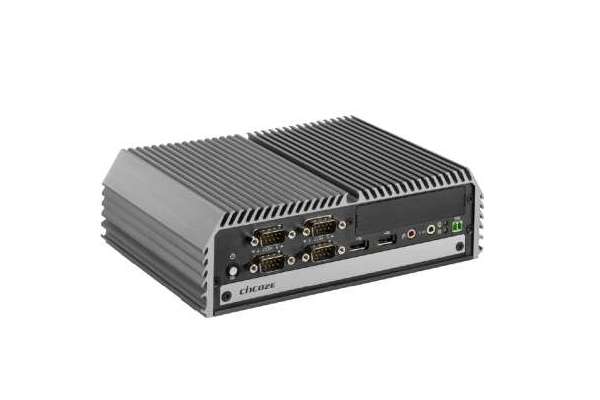

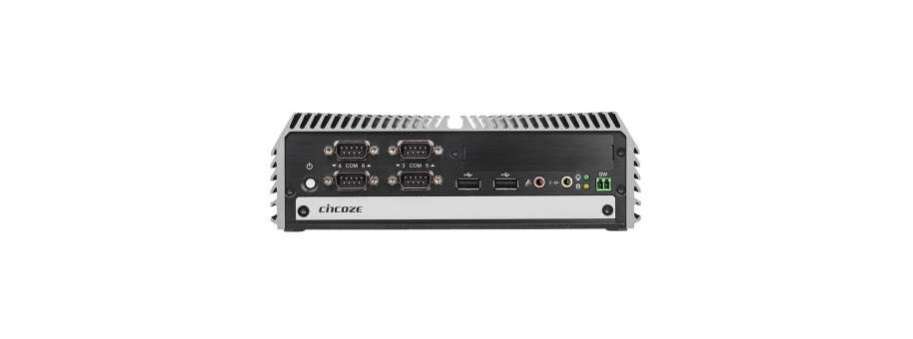

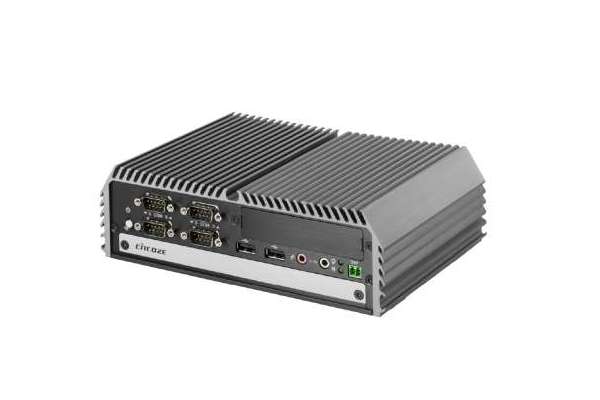

Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer powered by 6th generation Intel® Core™ mobile processor (Skylake-U), it integrates Intel® HD graphic engine and accommodates one DDR4 socket up to 32 GB which allows DI-1000 Series to fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x 66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000 Series to be expanded according to the specific needs. The options of ready-to-use modules including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O interface, making DI-1000 series application-ready platform for factory automation, machine vision, in-vehicle, and mobile surveillance applications. DI-1000 Series inherited the Rugged DNA design from Cincoze, featuring Fan-less design, cable-less design, wide operating temperature (-40~ 70˚C), wide range DC input (9~48 VDC), high tolerance for shock and vibration, high standard electric protection, Long MTBF hours and integrated SuperCAP for CMOS battery maintenance-free. Those Rugged features making DI-1000 series suitable to be deployed in harsh and demanding environment.

  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
  • Triple Independent Display (DVI-I, DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
  • Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO

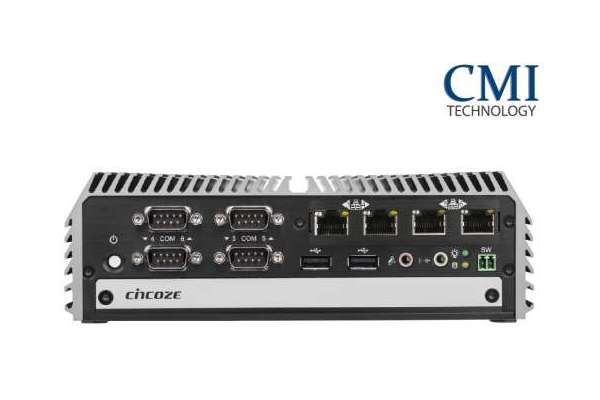

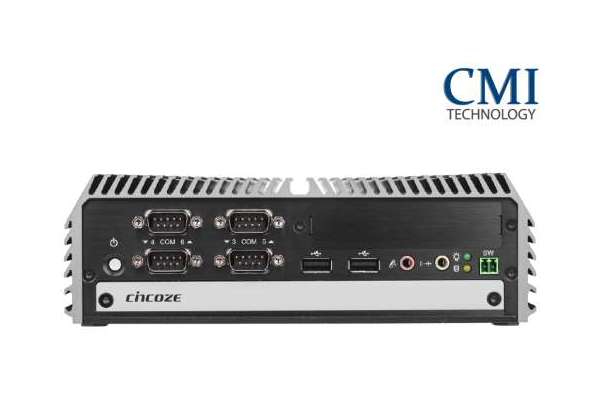

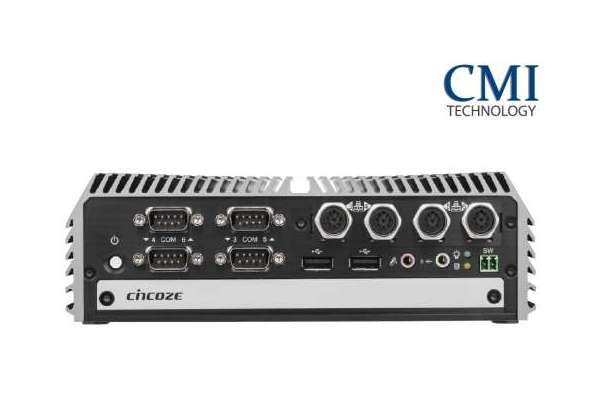

  • Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion

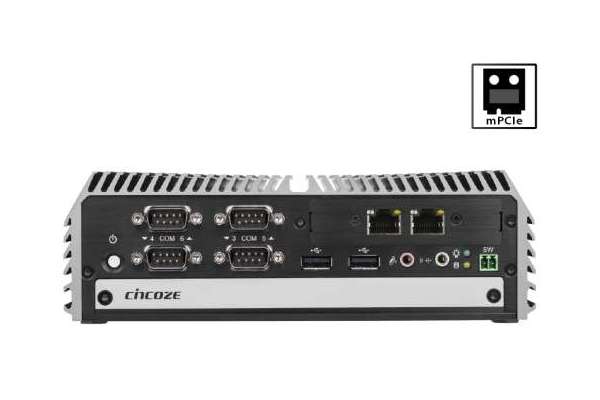

  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • E-Mark (E13, No.10R-0514273) Certified

Additional information

System

Processor
  • On board Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz, 15W TDP)
  • Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP)
  • Onboard Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz, 15W TDP)
Chipset SoC
BIOS AMI 8Mbit SPI BIOS
Memory 1x DDR4 260-pin SO-DIMM Socket, Support up to 32 GB (2133MHz, Un-buered and Non-ECC type)
Graphics
  • Integrated Intel® HD Graphics
  • Three Independent Display
Audio
  • Realtek® ALC888-GR
  • High Definition Audio

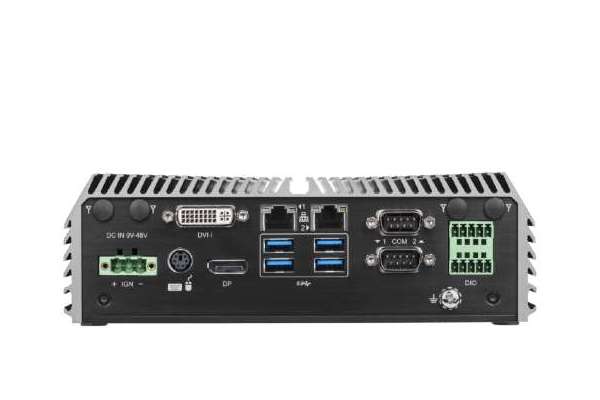

I/O Interface
  • 1x DVI-I Connector, Resolution 1920 x 1080
  • 1x DisplayPort Connector, Resolution 3840 x 2160
  • 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 - GbE1: Intel I210 - GbE2: Intel I219-LM
  • 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
  • 4x USB 3.0 (Type-A) & 2x USB 2.0 (Type-A)
  • 1x PS/2, 6-Pin Mini-DIN Female Connector
  • 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
  • 1x Line-out, Phone Jack 3.5mm
  • 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/Off Connector, 2-Pin Terminal Block
Storage
  • 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible & Hot-swappable)
  • 2x mSATA (shared by Mini-PCIe socket) (Gen3)
Expansion
  • 1x CFM Interface for Cincoze CFM Modules
  • 1x CMI Interface for Cincoze CMI Modules
  • 2x Full-size Mini-PCIe Sockets for Wireless & I/O Expansion
  • 1x SIM Socket
Other Function
  • Support CFM (Control Function Module) Technology
  • Support CMI (Combined Multiple I/O) Technology
  • Support Instant Reboot Technology (0.2 sec)
  • SuperCap Integrated for CMOS Battery Maintenance-free
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
Power Requirement
  • Support AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • One 3-Pin Terminal Block Connector
  • Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
Physical
  • Dimension (WxDxH): 203 x 142 x 66.8 mm
  • Weight: 1.65 kg
  • Extruded Aluminum with Heavy Duty Metal
  • Support Wall / Side / DIN-RAIL / VESA Mounting
  • Fanless Design
  • Cable-less Design
  • Unibody Chassis
  • Jumper-less Design
Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 2 kV
MTBF
  • Time: 360,145 Hours
  • Calculation Model: Telcordia SR-332 Issue 3, Method 1, Case 3
  • Environment: GB, GC
  • Temperature: 40°C
Operating System Windows® 10 / 8.1 / 7
Environment
  • Operating Temperature: -40°C to 70°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 95% RH @ 70°C (Non-condensing)
  • Shock: Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
  • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
  • EMC: CE, FCC Class A, EN50121-3-2, E-Mark (E13, No.10R-0514273)
