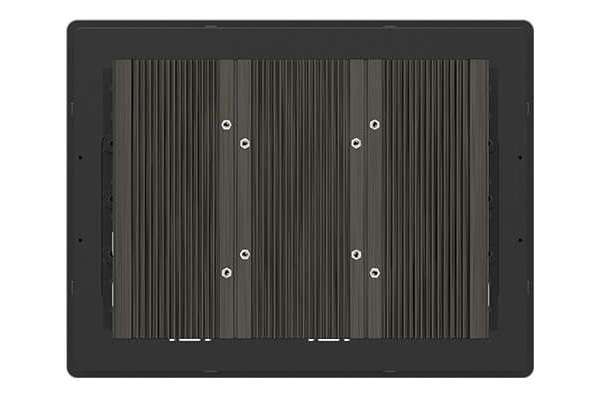

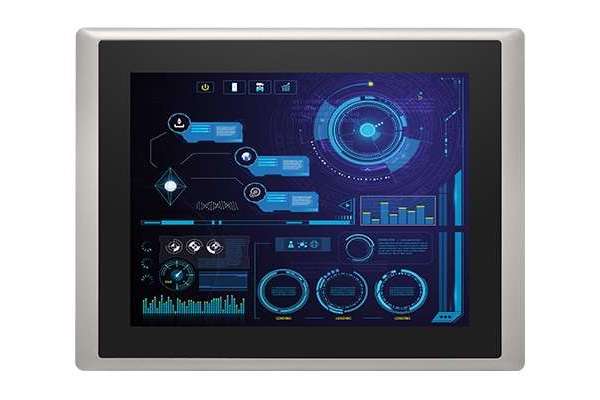

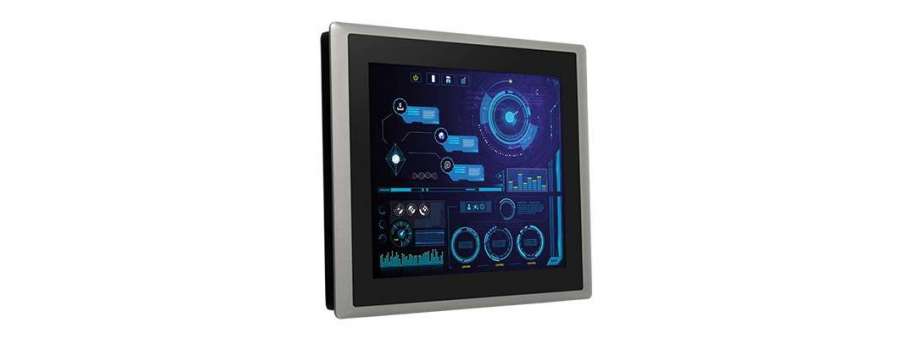

12.1" TFT XGA 4:3 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Slim / Embedded PC Cincoze CV-112H/P2302
The CV-100/P2302 series are high-performance modular industrial panel PCs supporting the latest Intel® Core Ultra processors (Meteor Lake-PS) across 20 model variations with flexible expansion capabilities. The series features rich built-in I/O interfaces and supports a variety of expansion slots, including M.2 Key B and Key E, PCI/PCIe (P2302E only), and CFM and MEC modular expansion (P2302E only) for adding wireless communication, NVMe storage, and I/O functions as needed. The rugged design makes the CV-100/P2302 series suitable for diverse application fields such as equipment HMI and production process visualization.
- 12.1" XGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 96GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
- Designed with Aluminum Die-cast Front Bezel
- Front Panel IP65 Compliant
Additional information
Display |
|
| LCD Size |
12.1" (4:3)
|
| Max. Resolution |
1024 x 768
|
| Brightness (cd/m2) |
500
|
| Contrast Ratio |
700 : 1
|
| LCD Color |
16.7M
|
| Pixel Pitch (mm) |
0.24 (H) x 0.24 (V)
|
| Viewing Angle (H-V) |
160 / 140
|
| Backlight LED Life Time |
50,000 hrs (LED Backlight)
|
Touch Screen |
|
| Touch Type |
|
| Wet Touch Tracking |
only CV-112HC
|
Physical |
|
| Dimension ( W x D x H ) |
345 x 265.3 x 57 mm
|
| Weight Information |
3.16 kg
|
| Mechanical Construction |
Die-Casting Flat Surface
|
Power |
|
| Power Consumption |
|
Environment |
|
| Front Panel Protection |
IP 65 Compliant
|
| Operating Temperature |
|
| Storage Temperature |
-30°C to 80°C (-22°F to 176°F)
|
| Relative Humidity |
90% RH @ 40°C (Non-condensing)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
System |
P2302 P2302E
|
| Processor |
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP
|
| Memory |
2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB
|
| BIOS |
AMI BIOS
|
Graphics |
|
| Graphics Engine |
Intel® Graphics
|
| Maximum Display Output |
Supports Quad Independent Display
|
| CDS |
1x CDS Connector (1920 x 1080 @60Hz)
|
| DP |
1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz
|
| HDMI |
1x HDMI Connector (3840 x 2160 @30Hz)
|
| VGA |
1x VGA Connector (1920 x 1080 @60Hz)
|
Audio |
|
| Audio Codec |
Realtek® ALC888, High Definition Audio
|
| Line-out |
1x Line-out, Phone Jack 3.5mm
|
| Mic-in |
1x Mic-in, Phone Jack 3.5mm
|
I/O |
|
| LAN |
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I226
- GbE2: Intel® I226
|
| COM |
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
|
| USB |
|
| DIO |
16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
|
Storage / Expansion |
|
| 2.5” SSD/HDD |
2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
|
| M.2 Key E Socket |
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
|
| M.2 Key B Socket |
|
| PCI Express |
for P2302E
|
| SIM Socket |
1 x Front Accessible SIM Socket
|
| CFM (Control Function Module) Interface |
|
Other Function |
|
| RAID |
RAID 0/1
|
| Clear CMOS Switch |
1x Clear CMOS Switch
|
| Reset Button |
1x Reset Button
|
| Watchdog Timer |
Software Programmable Supports 256 Levels System Reset
|
| OSD Button |
LCD On/Off, Brightness Up, Brightness Down
|
| Internal Speaker |
AMP 2W + 2W
|
| Status LED Indicator |
Power LED, Storage LED
|
| Antenna Holes |
6x Antenna Holes
|
Power |
|
| Power Button |
1x ATX Power On/Off Button
|
| Power Mode Switch |
1x AT/ATX Mode Switch
|
| Power Input |
9 - 48VDC, 3-pin Terminal Block
|
| Remote Power On/Off |
1x Remote Power On/Off, 2-pin Terminal Block
|
| Max. Power Consumption |
Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
|
| Inrush Current (Peak) |
Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V
|
Operating System |
|
| Windows |
Windows®11, Windows®10
|
| Linux |
Ubuntu Desktop 24.04 LTS
|
Physical |
|
| Dimension( W x D x H ) |
|
| Weight Information |
|
| Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
Wall / VESA / CDS / DIN Rail
|
| Physical Design |
|
Environment |
|
| Operating Temperature |
-40°C to 65°C (-40°F to 149°F)
* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60
|
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F)
|
| Relative Humidity |
95%RH @ 65°C (non-Condensing)
|
| Shock |
|
| Vibration |
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Industrial Environment |
EMC
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 20
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
