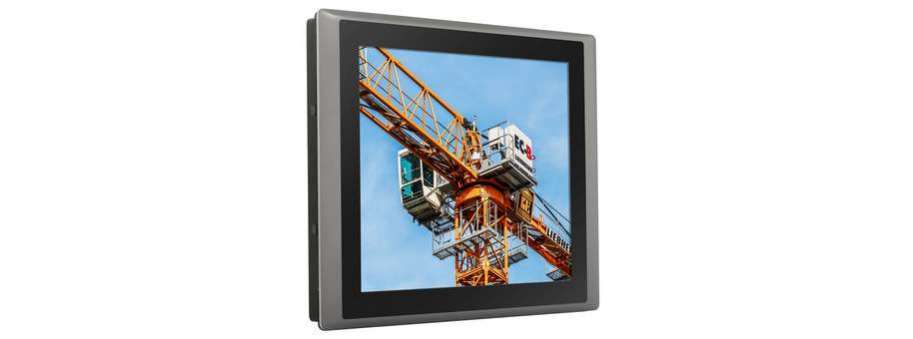

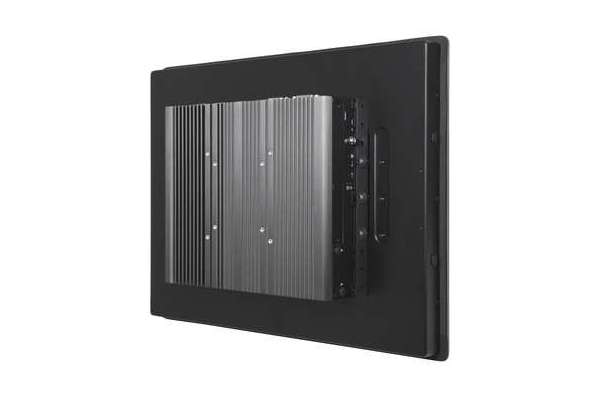

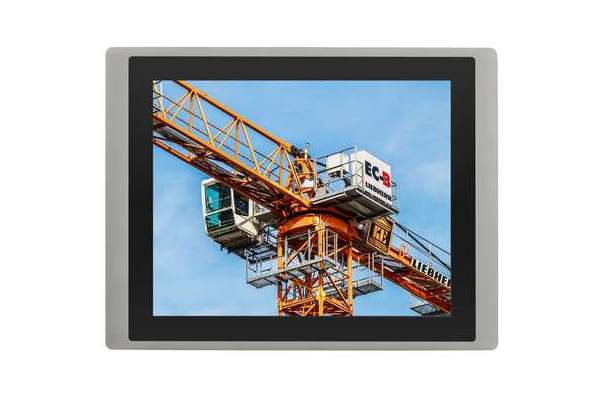

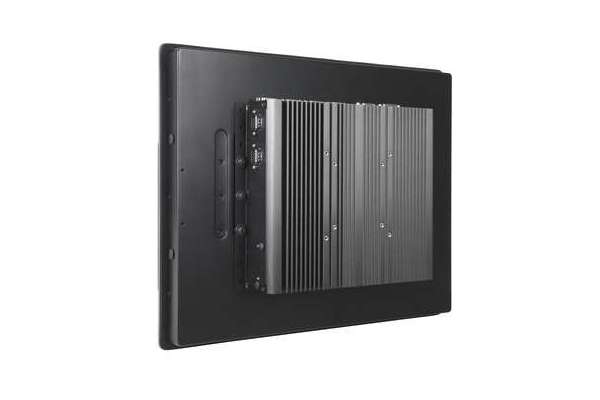

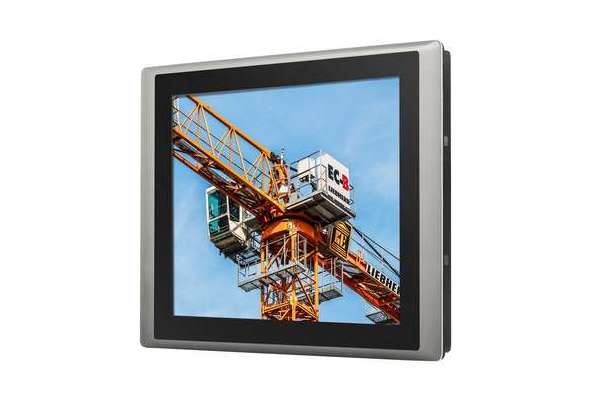

TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor Cincoze CS-119/P2002
CS-100/P2002 Series is a 12.1" - 24” TFT-LCD sunlight readable touch panel PC offering 1,500 nits ultra high brightness and 1024 x 768 - 1920 x 1080 (XGA) resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance. CS-100/P2002 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-100/P2000 Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module). Furthermore, CS-100/P2002 Series is a truly rugged display system supporting wide range operating temperature, IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.
- 19" TFT-LCD with Ultra High Brightness up to 1,600 nits and 1280 x 1024 (SXGA) Resolution
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
- Integrated Intel® HD Graphics 520, Triple Display Support
- 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Wide Range Operating Temperature
- Designed with Aluminum Die-casting Front Frame
- True Flat IP65 Front Panel Protection
- Supports Panel / VESA / Rack Mounting
- Convertible Display System (CDS) Technology Supported
- PCI/PCIe Expandable Version Available (For P2002E only)
Additional information
Display |
|
| LCD Size |
19" (5:4)
|
| Max. Resolution |
1280 x 1024 (SXGA)
|
| Brightness (cd/m2) |
1600
|
| Contrast Ratio |
1000 : 1
|
| LCD Color |
16.7M
|
| Pixel Pitch (mm) |
0.294 (H) x 0.294 (V)
|
| Viewing Angle (H-V) |
170 / 160
|
| Backlight LED Life Time |
50,000 hrs (LED Backlight)
|
Touch Screen |
|
| Touch Type |
Projected Capacitive
|
| Wet Touch Tracking |
v
|
Physical |
|
| Dimension ( W x D x H ) |
510 x 389.3 x 63.2 mm
|
| Weight Information |
6.96 kg
|
| Mechanical Construction |
Flat Rugged Aluminum Die-casting Bezel
|
Power |
|
| Power Consumption |
44.45W (Max.)
|
Environment |
|
| Front Panel Protection |
IP 65 Compliant
|
| Operating Temperature |
20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow)
|
| Storage Temperature |
-30°C to 70°C (-22°F to 158°F)
|
| Relative Humidity |
90% RH @ 40°C (Non-condensing)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
System |
|
| Processor |
Onboard 6th Intel® Core™ U processors (Skylake)
- Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
- Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
- TDP: 15 W
|
| Memory |
|
| BIOS |
AMI 64Mbit SPI BIOS
|
Graphics |
|
| Graphics Engine |
Integrated Intel® UHD Graphics 520
|
| Maximum Display Output |
Supports Triple Independent Display
|
| CDS |
1x CDS Connector for Cincoze Display Module
|
| VGA |
1x VGA Connector(1920 x 1080 @60Hz), DB-15
|
| DVI-D |
1x DVI-D Connector (1920 x 1080 @ 60Hz)
|
Audio |
|
| Audio Codec |
Realtek® ALC888, High-Definition Audio
|
| Speaker-out |
1x Speaker-out, Phone Jack 3.5mm
|
| Mic-in |
1x Mic-in, Phone Jack 3.5mm
|
I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Inte
|
| USB |
4x USB 3.2 Gen1 (Type A), 1x USB 2.0 (Type A)
|
| Serial Port |
6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
|
| DIO |
16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
|
Storage |
|
| SSD/HDD |
2x 2.5” HDD/SSD Bay, Support RAID 0/1 (Gen3)
|
| mSATA |
2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
|
| CFast |
1x CFast Socket (Gen 3)
|
Expansion |
|
| Mini PCI Express |
2x Full-size Mini-PCIe Sockets
|
| PCI Express |
for P2002E
|
| SIM Socket |
1 x Front Accessible SIM Socket
|
| Universal Bracket |
1x Universal I/O Bracket
|
| CFM (Control Function Module) Interface |
2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
|
| CDS (Convertible Display System) Technology |
1x Convertible Display System (CDS) Interface, Compact PCI Connector
|
Other Function |
|
| Instant Reboot |
Support 0.2sec Instant Reboot technology
|
| Watchdog Timer |
Software Programmable Supports 256 Levels System Reset
|
| Internal Speaker |
AMP 2W + 2W
|
| OSD Function |
LCD On/Off, Brightness Up, Brightness Down
|
| Reset Button |
1x Reset Button
|
| External Fan Connector |
1x External Fan Connector, 4-pin Terminal Block
|
Power |
|
| Power Button |
1x ATX Power On/Off Switch
|
| Power Mode Switch |
1x AT/ATX Mode Switch
|
| Power Input |
1x 3-pin Terminal Block Connector with Power Input 9~48VDC
|
| Power Adapter (Optional) |
|
| Remote Power On/Off |
1x Remote Power On/Off Connector, 2-pin Terminal Block
|
Physical |
|
| Dimension( W x D x H ) |
254.5 x 220 x 54mm for P2002
254.5 x 220 x 72 mm for P2002E
|
| Weight Information |
2.92 kg for P2002
3.18 kg for P2002E
|
| Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
Wall / VESA / CDS
|
| Physical Design |
|
Operating System |
|
| Microsoft® Windows® |
Windows® 10, Windows® 8.1, Windows® 7
|
| Linux |
Linux® Kernel 4.4
|
Environment |
|
| Operating Temperature |
Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
|
| Storage Temperature |
-40°C to 85C
|
| Relative humidity |
95% RH @ 40˚C (Non-condensing)
|
| Shock |
Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
|
| Vibration |
Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
