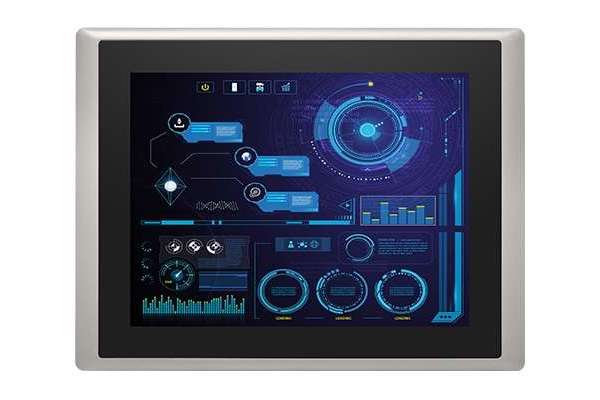

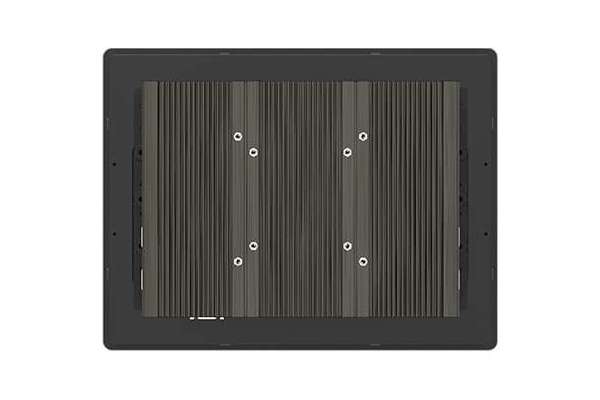

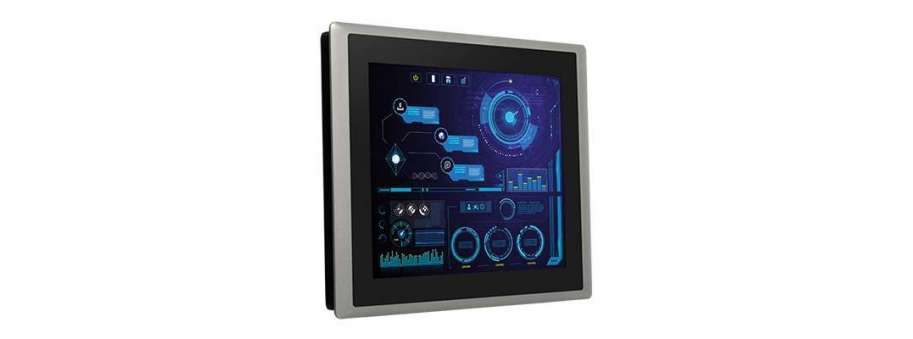

TFT XGA 4:3 Display Modular Panel PC with 12th Gen. Intel® Core™ Processor Cincoze CV-112H/P2202

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The CV-112/P2202 series is a high-performance modular industrial panel PC with an Intel® Core™ U-series (Alder Lake-P) processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (1 GbE LAN, USB 3.2 Gen 2x1, COM, and DIO), has Mini PCIe, M.2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements.

  • The rugged CV-112/P2202 series can meet the diverse applications of equipment machine HMI and production process visualization.
  • 12.1" XGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
  • Onboard Intel® Alder Lake-P U-Series Core™ Processor
  • 2x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
  • Designed with Aluminum Die-cast Front Bezel
  • Front Panel IP65 Compliant

Additional information

Display
LCD Size
12.1" (4:3)
Max. Resolution
1024 x 768
Brightness (cd/m2)
500
Contrast Ratio
700 : 1
LCD Color
16.7M
Pixel Pitch (mm)
0.24 (H) x 0.24 (V)
Viewing Angle (H-V)
160 / 140
Backlight LED Life Time
50,000 hrs (LED Backlight)

Touch Screen
Touch Type
  • Resistive 5-wire (for CV-112HR)
  • Projected Capacitive (for CV-112HC)
Wet Touch Tracking
only for CV-112HC

Physical
Dimension ( W x D x H )
345 x 265.3 x 57 mm
Weight Information
3.16 kg
Mechanical Construction
Die-Casting Flat Surface

Power
Power Consumption
  • 9.11W (Max.) (for CV-112HR)
  • 9.06W (Max.) (for CV-112HC)

Environment
Front Panel Protection
IP 65 Compliant
Operating Temperature
  • -30°C to 70°C (-22°F to 158°F) (With Industrial Grade peripherals; Ambient with air flow) (for CV-112HR)
  • -20°C to 70°C (-4°F to 158°F) (With Industrial Grade peripherals; Ambient with air flow) (for CV-112HC)
Storage Temperature
-30°C to 80°C (-22°F to 176°F)
Relative Humidity
90% RH @ 40°C (Non-condensing)
EMC
CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety
UL, cUL, CB, IEC, EN 62368-1

System
Processor
Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:
- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory
2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
BIOS
AMI BIOS
Graphics
Graphics Engine
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output
Supports Quad Independent Display
CDS
1x CDS Connector (1920 x 1080 @60Hz)
DP
1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI
1x HDMI Connector (3840 x 2160 @30Hz)
VGA
1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec
Realtek® ALC888, High Definition Audio
Line-out
1x Line-out, Phone Jack 3.5mm
Mic-in
1x Mic-in, Phone Jack 3.5mm

I/O
LAN
2x 1GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2: Intel® I210
COM
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO
16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage
SSD/HDD
2x 2.5” SATA HDD/SSD Bay (SATA3.0)
RAID
Support RAID 0/1

Expansion
Mini PCI Express
2x Full-size Mini-PCIe Socket
PCI Express
1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 16 (for CV-112HC)
SIM Socket
1x SIM Socket
M.2
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface
1x CDS Interface for Convertible Display Module

Power
Power Button
1x ATX Power On/Off Button
Power Mode Switch
1x AT/ATX Mode Switch
Power Input
9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off
1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
i5-1245UE CPU: 95.06W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during bur
Inrush Current (Peak)
i5-1245UE CPU: 5.381 A@24V

Operating System
Windows
Windows®11, Windows®10
Linux
Ubuntu Desktop 22.04 LTS

Physical
Dimension( W x D x H )
  • 254.5 x 190 x 41.5 mm (for CV-112HR)
  • 254.5 x 190 x 61 mm (for CV-112HC)
Weight Information
  • 2.22 kg (for CV-112HR)
  • 2.74 kg (for CV-112HC)
Mechanical Construction
Extruded Aluminum with Heavy Duty Metal
Mounting
Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature
-40°C to 70°C (-40°F to 158°F)
* With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Relative Humidity
95%RH @ 70°C (non-Condensing)
Shock
Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN IEC 61000-6-4, EN IEC 61000-6-2(24VDC Input Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety
Safety
