12.1" TFT-LCD Modular Panel PC with 8th Gen. Intel® Core™ U Series Processor Cincoze CV-112H/P2102
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| CV-112HR-R10/P2102-i5-R10 | Модульний панельний комп'ютер Cincoze CV-112HR-R10/P2102-i5-R10, 12.1" XGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch | 127 468,0 | |
| CV-112HR-R10/P2102E-i5-R10 | Модульний панельний комп'ютер Cincoze CV-112HR-R10/P2102E-i5-R10, 12.1" XGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch | 130 343,0 | |
| CV-112HC-R11/P2102-i5-R10 | Модульний панельний комп'ютер Cincoze CV-112HC-R11/P2102-i5-R10, 12.1" XGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch | 133 217,0 | |
| CV-112HC-R11/P2102E-i5-R10 | Модульний панельний комп'ютер Cincoze CV-112HC-R11/P2102E-i5-R10, 12.1" XGA TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch | 136 092,0 | |
| CV-112HR-R10/P2102-i3-R10 | Модульний панельний комп'ютер Cincoze CV-112HR-R10/P2102-i3-R10, 12.1" XGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch | 112 997,0 | |
| CV-112HC-R11/P2102-i3-R10 | Модульний панельний комп'ютер Cincoze CV-112HC-R11/P2102-i3-R10, 12.1" XGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch | 118 746,0 |

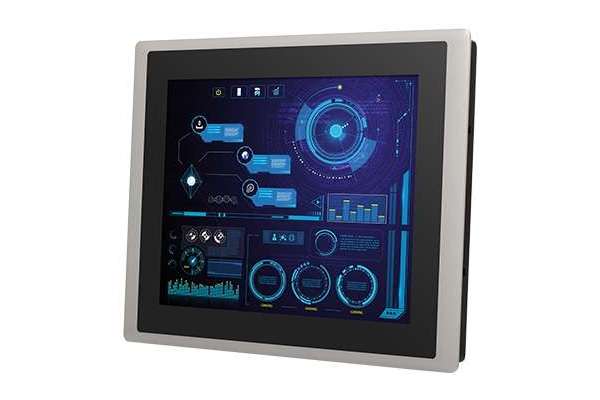

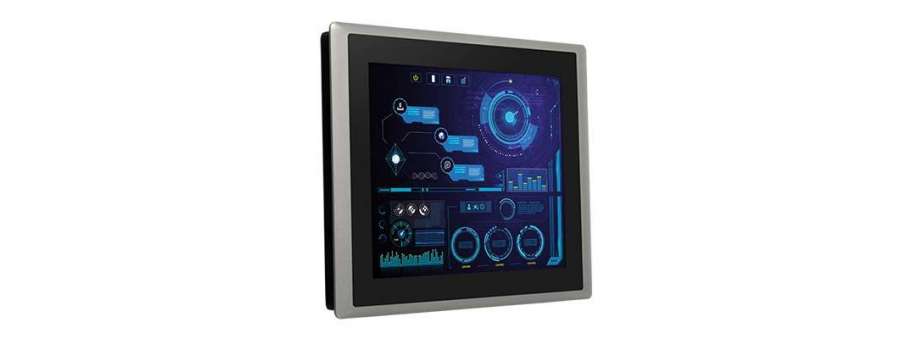

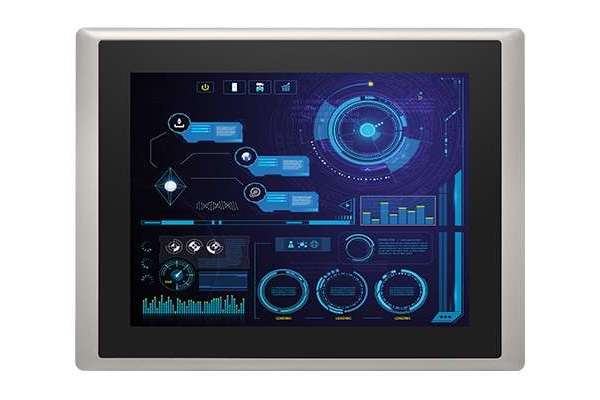

The CV-112H/P2102 Series is a 12.1" TFT-LCD panel PC with Intel® 8th generation Core™ U Series Processor and is suitable for the high-performance requirement in factory and machine automation applications. The processor brings outstanding computing performance boost up to 84% at a TDP of 15 watts, compared to 6th generation Intel® Core™ U series. To enable faster responsiveness and deal with multi tasks with ease, the panel PC is equipped with two DDR4 2400 SODIMM sockets for up to 64 GB memory.
With its slim design, the CV-112H/P2102 Series offers extensive I/O to fulfill different connectivities and can easily fit into almost any space limited environment. For wireless connectivity, the CV-112H/P2102 Series has 1x M.2 2230 E key and 2x full-size Mini-PCIe expansions which can be installed various add-on cards to enable Wi-Fi, 3G, and LTE communication. Besides, the CV-112H/P2102 Series supports Control Function Module (CFM) Technology to install optional CFM modules for increasing power over ethernet and power ignition sensing functions according to user’s specific applications. Featuring rigorous industrial protections, wide range operating temperature, IP65 dust/waterproof front panel, and wide range DC power input (9 to 48VDC), the CV-112H/P2102 Series is appropriate for harsh environments and critical industrial applications. Furthermore, the CV-112H/P2102 Series supports Cincoze patented Convertible Display System (CDS) technology, allowing users to replace display module or computer module on-site easily and thereby reducing maintenance costs and downtime.
- 12.1" 1024 x 768 (XGA) TFT-LCD with Resistive 5-wire Touch / Projected Capacitive Touch
- Onboard 8th Generation Intel® Core™ U Series Processor
- 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
- Supports Triple Independent Display
- Integrated USB 3.2 Gen 2 supports up to 10Gbps
- M.2 E Key Socket for Wireless Module or Intel CRF Module
- Supports Ignition Sensing Function (IGN) (with optional CFM module)
- Supports 2x PoE+ Function (with optional CFM module)
- Designed with Rugged Aluminum Die-casting Front Bezel
- True Flat IP65 Compliant Front Panel Protection
- Supports Panel / VESA / Rack Mounting
Additional information
| CV-112HR / CV-112HC | |
Display |
|
| LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) |
| Viewing Angle (H-V) | 160 / 140 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Type |
|
| Wet Touch Tracking | only for CV-112HC |
Physical |
|
| Dimension ( W x D x H ) | 345 x 265.3 x 57 mm |
| Weight Information | 3.16 kg |
| Mechanical Construction | Die-Casting Flat Surface |
Power |
|
| Power Consumption |
|
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature |
|
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
System |
|
Processor |
P2102 / P2102E |
System |
|
| Processor |
Onboard 8th Intel® Core™ U Processors (Whiskey Lake)
- Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz)
- Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W
|
| Memory |
|
Graphics |
|
| Graphics Engine |
Integrated Intel® UHD Graphics 620
|
| Maximum Display Output |
Supports Triple Independent Display
|
| CDS |
1x CDS Connector for Cincoze Display Module
|
| VGA |
1x VGA Connector(1920 x 1200 @60Hz)
|
| DP |
1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840 x2160 @ 60Hz
|
Audio |
|
| Audio Codec |
Realtek® ALC888, High Definition Audio
|
| Line-out |
1x Line-out, Phone Jack 3.5mm
|
| Mic-in |
1x Mic-in, Phone Jack 3.5mm
|
I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel® I21
|
| USB |
3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A)
|
| Serial Port |
4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
|
| DIO |
16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
|
Storage |
|
| SSD/HDD |
2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
|
Expansion |
|
| Mini PCI Express |
2x Full-size Mini-PCIe Sockets
|
| PCI Express |
1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card only for P2102E
* Supports maximum dimensions of add-on card (H x L) : 111 x 169m
|
| M.2 E Key Socket |
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
|
| SIM Socket |
1x Front Accessible SIM Socket
|
| Universal Bracket |
2x Universal I/O Bracket only for P2102E
|
| CFM (Control Function Module) Interface |
2x CFM Interface for optional IGN or PoE Module Expansion
|
| CDS (Convertible Display System) Technology |
1x Convertible Display System (CDS) Interface
|
Power |
|
| Power Button |
1x ATX Power On/Off Switch
|
| Power Mode Switch |
1x AT/ATX Mode Switch
|
| Power Input |
1x 3-pin Terminal Block Connector with Power Input 9~48VDC
|
| Power Adapter (Optional) |
1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W
|
| Remote Power On/Off |
1x Remote Power On/Off Connector, 2-pin Terminal Block
|
Physical |
|
| Dimension( W x D x H ) |
|
| Weight Information |
|
| Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
Wall / VESA / CDS / DIN Rail
|
| Physical Design |
|
Operating System |
|
| Microsoft® Windows® |
Windows®10
|
| Linux |
Supports by project
|
Environment |
|
| Operating Temperature |
Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
|
| Storage Temperature |
-40°C to 70°C
|
| Relative humidity |
95% RH @ 70°C (Non-condensing)
|
| Shock |
Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
|
| Vibration |
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Safety |
UL, cUL, CB, IEC, EN62368-1
|
| Fire Protection |
EN 45545-2
|
