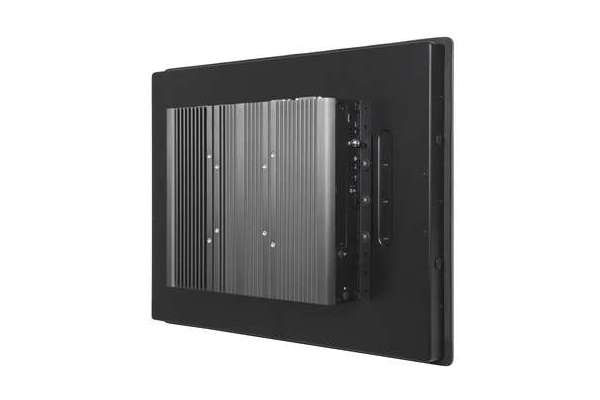

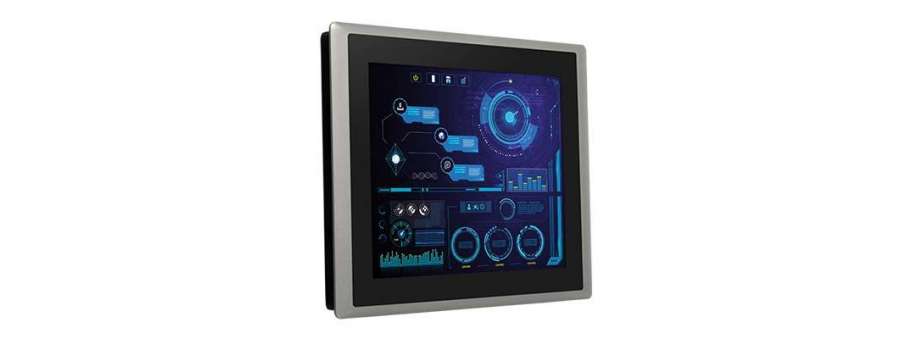

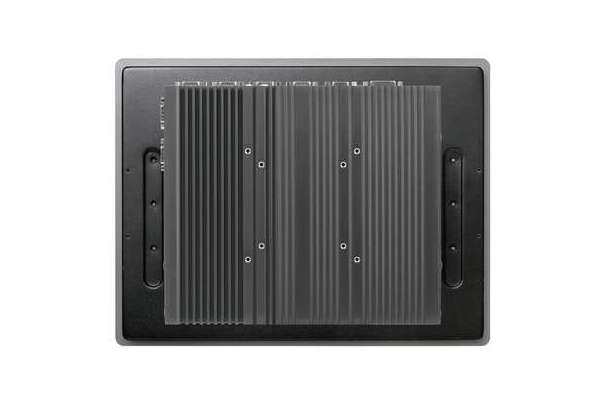

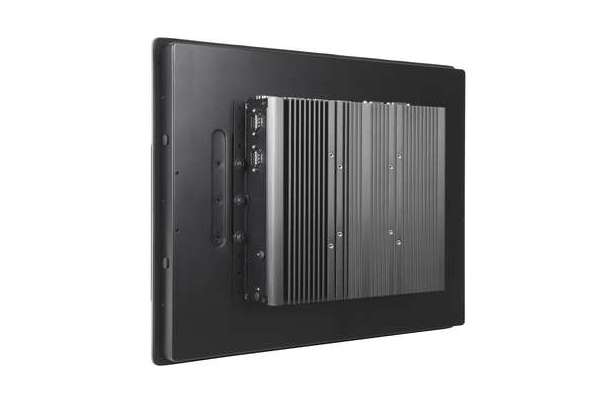

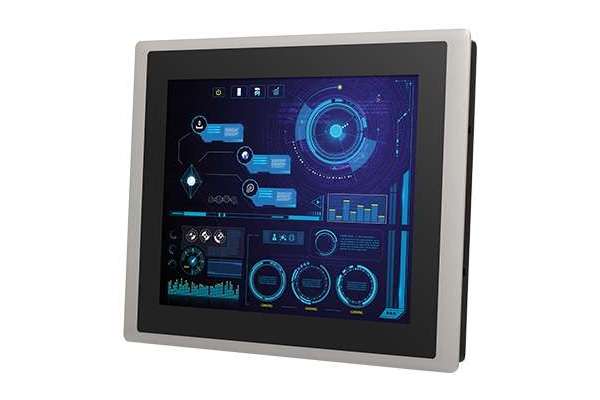

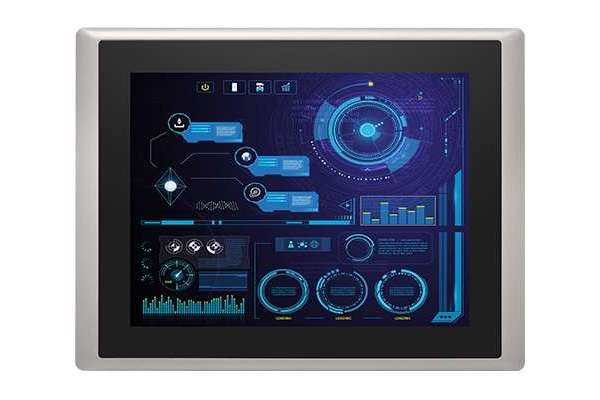

6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology Cincoze CV-112H/P2002
Cincoze CV-112H/P2002 Series is a 12.1” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power. The CV-112H/P2002 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-112H/P2002 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications. The CV-112H/P2002 Series is a truly rugged computing system supporting wide operating temperature, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-112H/P2002 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.
- 12.1" XGA TFT-LCD with Resistive 5-wire / Projected Capacitive Touch
- Onboard Intel® 6th Generation Core™ Processor U Series (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Integrated Intel® HD Graphics 520 Support Triple Display
- 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
- IP65 Compliant Aluminum Die-Cast Front Frame
- 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
- Support CFM Technology for PoE and Ignition Sensing Functions
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- Support Instant Reboot Technology
- Wide Operating Temperature
- SuperCap integrated for CMOS Battery Maintenance-Free
- PCI/PCIe Expandable Version Available (For P2002E only)
Additional information
| CV-112HR / CV-112HC | |
Display |
|
| LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) |
| Viewing Angle (H-V) | 160 / 140 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Type |
|
| Wet Touch Tracking | + for CV-112HC |
Physical |
|
| Dimension ( W x D x H ) | 345 x 265.3 x 57 mm |
| Weight Information | 3.16 kg |
| Mechanical Construction | Die-Casting Flat Surface |
Power |
|
| Power Consumption |
|
Environment |
|
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature |
|
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
System |
|
| Processor | Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 |
| Memory |
|
| BIOS | AMI 64Mbit SPI BIOS |
Graphics |
|
| Graphics Engine | Integrated Intel® UHD Graphics 520 |
| Maximum Display Output | Supports Triple Independent Display |
| CDS | 1x CDS Connector for Cincoze Display Module |
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 |
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) |
Audio |
|
| Audio Codec | Realtek® ALC888, High-Definition Audio |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
I/O |
|
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel®
|
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0 (Type A) |
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 |
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block |
Storage |
|
| SSD/HDD | 2x 2.5” HDD/SSD Bay, Support RAID 0/1 (Gen3) |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) |
| CFast | 1x CFast Socket (Gen 3) |
Expansion |
|
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets |
| PCI Express |
for CV-112HC:
|
| SIM Socket | 1 x Front Accessible SIM Socket |
| Universal Bracket | 1x Universal I/O Bracket |
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion |
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector |
Power |
|
| Power Button | 1x ATX Power On/Off Switch |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC |
| Power Adapter (Optional) |
|
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block |
Physical |
|
| Dimension( W x D x H ) |
|
| Weight Information |
|
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / VESA / CDS |
| Physical Design |
|
Operating System |
|
| Microsoft® Windows® | Windows® 10, Windows® 8.1, Windows® 7 |
| Linux | Linux® Kernel 4.4 |
Environment |
|
| Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) |
| Storage Temperature | -40°C to 85C |
| Relative humidity | 95% RH @ 40˚C (Non-condensing) |
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
