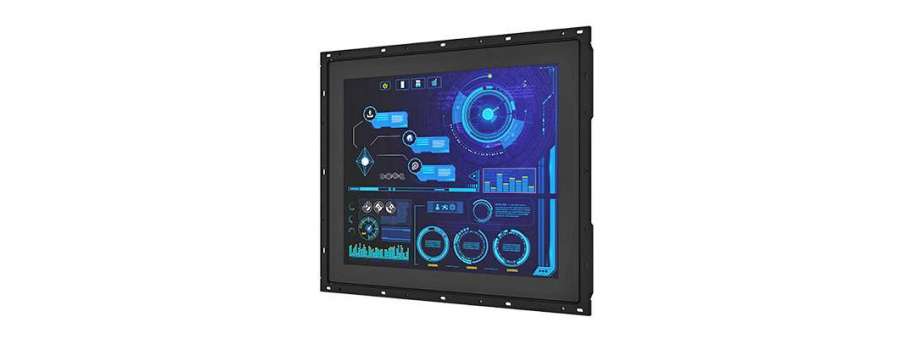

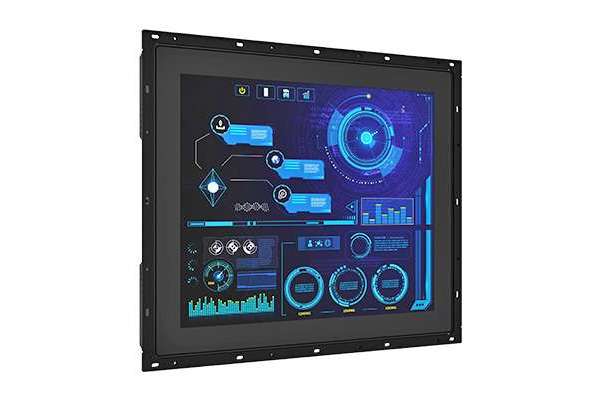

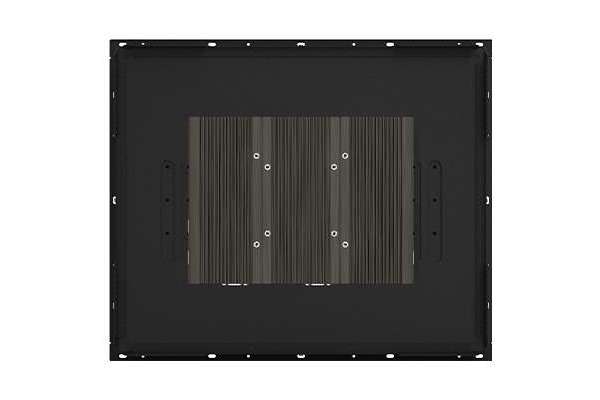

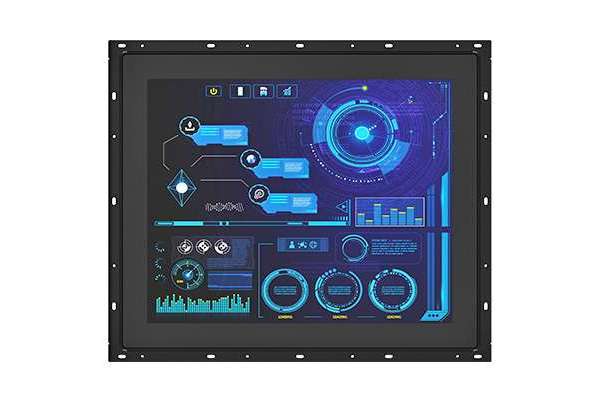

19" TFT-LCD SXGA Open Frame Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Cincoze CO-119C / P2302
The Cincoze high-performance open frame industrial panel PC series (CO-100/P2302) supports the latest Intel® Core Ultra processors (Meteor Lake-PS) and features rich I/O interfaces and flexible expansion. The biggest highlight is its adjustable mounting bracket design (Patent No.: D224544, D224545, I802427) that allows flexible adjustment and multi-stage locking to greatly improve the convenience of installation, effectively reducing the degree of customization required when integrating with equipment. The series is developed for equipment manufacturers, enabling integration in enclosures of different materials and thicknesses, and achieving overall consistency. The rugged design is also suited to field-side HMI in harsh industrial environments.
- 19" TFT-LCD with Projected Capacitive Touch
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 96GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
- Front Panel IP65 Compliant
Additional information
Display |
|
| LCD Size |
19” (5:4)
|
| Resolution |
1280 x 1024
|
| Brightness |
350 cd/m2
|
| Contrast Ratio |
1000 : 1
|
| LCD Color |
16.7M
|
| Pixel Pitch |
0.294 (H) x 0.294 (V)
|
| Viewing Angle |
170 (H) / 160 (V)
|
| Backlight LED Life Time |
50,000 hrs (LED Backlight)
|
Touch Screen |
|
| Touchscreen Type |
Projected Capacitive Touch
|
| Wet Touch Tracking |
v
|
Physical |
|
| Dimension (W x D x H) |
472.8 x 397.5 x 63mm
|
| Weight |
6.91kg
|
| Construction |
One-piece and Slim Bezel Design
|
| Mounting Type |
Flat / Standard / VESA / Rack Mount
|
| Mounting Bracket |
Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment )
|
Power |
|
| Power Consumption |
21W (Max.)
|
Protection |
|
| Ingress Protection |
Front Panel IP65 Compliant * According to IEC60529
|
Environment |
|
| Operating Temperature |
0°C to 50°C (32°F to 122°F) (with Industrial Grade peripherals; Ambient with air flow)
|
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F)
|
| Humidity |
90% RH @ 40°C (Non-condensing)
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
System |
|
| Processor |
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W
|
| Memory |
2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB
|
| BIOS |
AMI BIOS
|
Graphics |
|
| Graphics Engine |
Intel® Graphics
|
| Maximum Display Output |
Supports Quad Independent Display
|
| CDS |
1x CDS Connector (1920 x 1080 @60Hz)
|
| DP |
1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz
|
| HDMI |
1x HDMI Connector (3840 x 2160 @30Hz)
|
| VGA |
1x VGA Connector (1920 x 1080 @60Hz)
|
Audio |
|
| Audio Codec |
Realtek® ALC888, High Definition Audio
|
| Line-out |
1x Line-out, Phone Jack 3.5mm
|
| Mic-in |
1x Mic-in, Phone Jack 3.5mm
|
I/O |
|
| LAN |
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I226
- GbE2: Intel® I226
|
| COM |
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
|
| USB |
|
| DIO |
16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
|
Storage / Expansion |
|
| 2.5” SSD/HDD |
2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
|
| M.2 Key E Socket |
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
|
| M.2 Key B Socket |
|
| PCI Express |
For P2302E
|
| SIM Socket |
1 x Front Accessible SIM Socket
|
| CFM (Control Function Module) Interface |
|
Power |
|
| Power Button |
1x ATX Power On/Off Button
|
| Power Mode Switch |
1x AT/ATX Mode Switch
|
| Power Input |
9 - 48VDC, 3-pin Terminal Block
|
| Remote Power On/Off |
1x Remote Power On/Off, 2-pin Terminal Block
|
| Max. Power Consumption |
Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
|
| Inrush Current (Peak) |
Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V
|
Operating System |
|
| Windows |
Windows®11, Windows®10
|
| Linux |
Ubuntu Desktop 24.04 LTS
|
Physical |
P2302 P2302E
|
| Dimension( W x D x H ) |
P2302: 254.5 x 190 x 49.5 mm
P2302E: 254.5 x 190 x 69 mm
|
| Weight Information |
P2302: 2.16 kg
P2302E: 2.26 kg
|
| Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal
|
| Mounting |
Wall / VESA / CDS / DIN Rail
|
| Physical Design |
|
Environment |
|
| Operating Temperature |
• -40°C to 65°C (-40°F to 149°F)
* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068
|
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F)
|
| Relative Humidity |
95%RH @ 65°C (non-Condensing)
|
| Shock |
|
| Vibration |
|
| EMC |
CE, UKCA, FCC, ICES-003 Class A
|
| EMI |
|
| EMS |
|
| Industrial Environment |
EMC
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 2019
|
| Safety |
UL, cUL, CB, IEC, EN 62368-1
|
