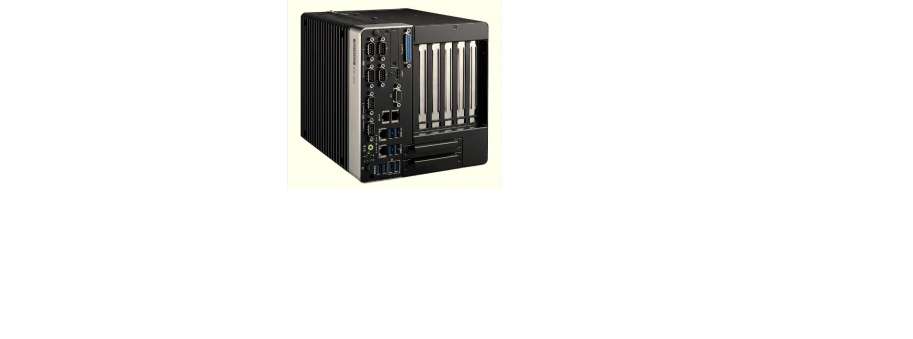

Expansion Fanless Box PC ARK-3532D

Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box Advantech PC ARK-3532D

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
  • Triple independent display: VGA + HDMI + Optional Display
  • DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
  • 9-36VDC wide range power input
  • Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
  • Support 4GbE, 8USB, 6COM, 16bit DIO,
  • No RED Certification
CPU W-1290TE i9-10900E i7-10700E i5-10500E i3-10100E G5900E
Frequency 1.8-4.5GHz 2.8-4.7GHz 2.9-4.5GHz 3.1-4.2GHz 3.2~3.8GHz 3.2GHz
L3 Cache 20MB 20MB 16MB 12MB 6MB 2MB
Cores 10 10 8 6 4 2
TDP 35W 65W 65W 65W 65W 65W

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-3532D-00A1 Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+PCIex16+2*PCI, 9-36V  38 509,6

Additional information

Processor System


Chipset W480E
BIOS AMI EFI 256Mbit

Memory


Technology DDR4 2933 MHz
Max. Capacity 64 GB
Socket 2 x 260-pin SO-DIMM

Graphics


Chipset Intel® UHD Graphics 630
Graphic Engine
  • DirectX 12, OpenGL 4.5
  • HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
  • HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
VGA 1920x1200@ 60Hz
HDMI 1 HDMI port, HDMI 1.4 for HD video playback, 4096x2160@30Hz
Optional 3rd Display module DVI-D / DP / HDMI Display Port
Triple Display VGA+HDMI + 3rd display module

Ethernet


LAN1 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2, 3, 4 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan

Audio


Interface Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)

Others


Watchdog Timer 255-level timer interval, setup by software
TPM TPM 2.0 (by optional AMO-I029)

I/O Interface


Serial Port 4 x RS-232/422/485 port with auto flow control, 2 x RS-232; COM3 support 5V/12V power supply (by jumper)
USB 4 x USB 3.2 (10Gbs), 2 x USB 3.0, 2 x Independent USB 3.0
GPIO 16bit GPIO

Expansions


Mini PCIe 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1
M.2 1 x E key for WiFi #1
Add-on Card Slot
  • 1 Slot PCIex4 + 2 Slot PCI + 1 Slot PCIex16
  • Suggest maximum power consumption 10W for each slot
  • Support add-on card power consumption up to 120W for PCIe*16 slot
  • If add-on card power consumption over 30W , an external adapter (must need be 12V with LOCKABLE DC JACK , and more than 120W )
  • and AMO-3509 is required to use in ARK-3532D for power and thermal solutions
Maximum card size 110mm (H) x 180mm (L)

Storage


HDD 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5" SATAIII HDD bays by optional AMK-A0035)
mSATA 1 x mSATA socket (Share with Mini PCIe)

Software Support


Microsoft Windows Windows 10
Linux By Project Support

Power Requirements


Power Type AT/ATX
Power Input Voltage 9-36V
Power Adapter AC to DC, 230W (Optional)

Power Consumption (CPU/Memory Only)


Typical 30W
Max. 64.8W

Mechanical


Construction Aluminum housing
Mounting Desk mounting
Dimensions (W x H x D) 197.2 x 204 x 230 mm
Weight 6.41Kg

Environment


Operating Temperature Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C
Relative Humidity 95% @ 40° C (non-condensing)
Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class B, CCC, BSMI
Safety CB, UL, CCC, BSMI
