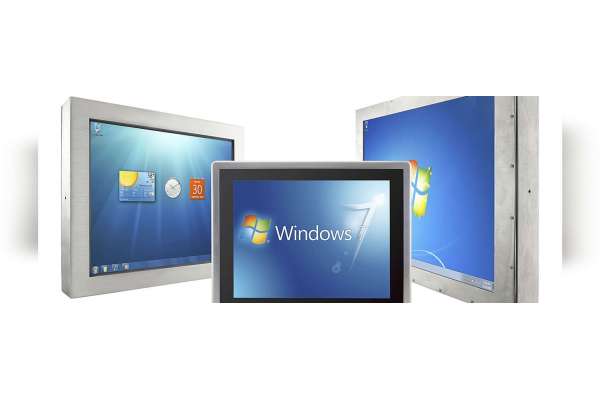

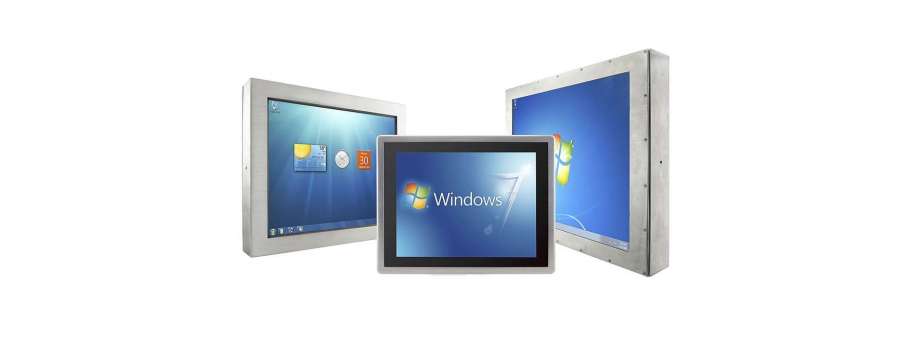

Full IP65 panel PCs with PCT 10"-22" LCD
Winmate Flat full IP65 Stainless Panel PCs W22IBS-SPA3, R19IB3S-SPM1, R17IB3S-SPA1, R15IB3S-SPC3, R10IB3S-SPT2 with Intel® Celeron N2930
Key Features
- Intel® Celeron Bay Trail-M N2930 1.83 GHz Processor
- Stainless housing, built to withstand the most demanding industries
- Sealed to IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Flat multi-touch panel pc with superior readability and P-Cap technology
- Various mounting solutions, Yoke mount and VESA mount
- Plenty of I/Os including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports

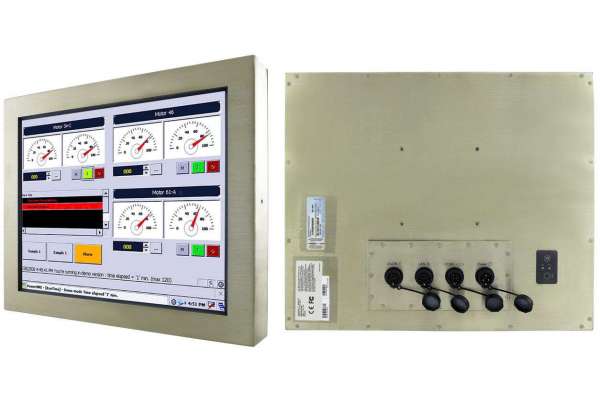

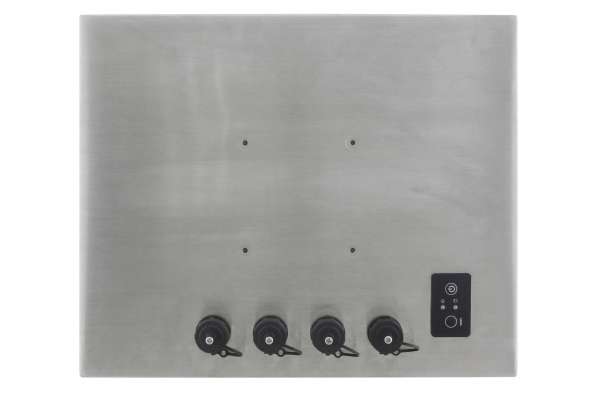

- Waterproof ports with adapter cables for external connectivity
- Support Glove / Rain mode (on going)
LCD Panel Specification
| Model |
W22IBS-SPA3 |
R19IB3S-SPM1 |
R17IB3S-SPA1 |
R15IB3S-SPC3 |
R10IB3S-SPT2 |
|
Panel_Size
|
21.5"
|
19" |
17" |
15" |
10.4" |
|
Panel Contrast Ratio
|
3000 : 1 (typ.)
|
1000 : 1 (typ.) |
1000 : 1 (typ.) |
700 : 1 (typ.) |
1000 : 1 (typ.) |
|
Panel Brightness
|
250 cd/m2 (typ.)
|
250 cd/m2 (typ.) |
350 cd/m2 (typ.) |
250 cd/m2 (typ.) |
350 cd/m2 (typ.)
|
|
Panel Viewing Angle
|
-89~89(H); -89~89(V)
|
-85~85(H); -80~80(V) |
-85~85(H); -80~80(V) |
-80~80(H); -70~70(V) |
-88~88(H); -88~88(V) |
|
Recommend Resolution
|
1920 x 1080
|
1280 x 1024 |
1280 x 1024 |
1024 x 768 |
1024 x 768 |
|
Maximum Colors
|
16.7M
|
16.7M |
16.7M |
16.2M |
16.2M |
| Partnumber |
Description |
Price VAT incl |
Avalability |
| R17IB3S-SPA1 |
Пaнельный компьютер 17" с защитой IP65 и нержавеющим корпусом Winmate. PCAP сенсорный экран. Процессор Intel Celeron N2930 1.83GHz, 4GB DDR3 64GB SSD, без ОС |
56 407,5 |
|
| R15IB3S-SPC3 |
Пaнельный компьютер 15" с защитой IP65 и нержавеющим корпусом Winmate. PCAP сенсорный экран. Процессор Intel Celeron N2930 1.83GHz, 4GB DDR3 64GB SSD, без ОС |
56 407,5 |
|
| R10IB3S-SPT2 |
Пaнельный компьютер 10" с защитой IP65 и нержавеющим корпусом Winmate. PCAP сенсорный экран. Процессор Intel Celeron N2930 1.83GHz, 4GB DDR3 64GB SSD, без ОС |
57 388,5 |
|
System Specification
|
Processor
|
Intel® Celeron Bay Trail-M N2930 1.83GHz
|
|
Chipset
|
Intel® Atom SoC Integrate
|
|
Memory
|
1 x SO-DIMM, Default 4GB, Max 8GB
DDR3L 1600
|
|
BIOS
|
AMI 16Mbit Flash
|
|
Ethernet
|
2 x RJ45 Gigabit LAN (1 x RJ45 internal)
|
|
Audio
|
Built in ALC886 HD Audio Codec
|
|
Serial
|
4 x RS232 (3 x RS232 internal)
|
|
USB
|
6 x USB2.0 (4 x USB internal)
|
|
SDD Interface
|
1 x Mini PCIe SSD
|
|
Expansion Slots
|
1 x Mini PCIe (Internal)
|
|
Storage
|
Default 64GB
|
I/O Connectors
|
USB Port
|
2 x USB Type-A Receptacle
|
|
Ethernet
|
1 x RJ45 - 10/100/1000 Mbps
|
|
Security
|
Trusted Platform Module (TPM 1.2)
|
|
COM Port
|
1 x RS232
|
Mechanical and Environment
|
Power Input
|
DC-IN (Lockable, Power Jack)
|
|
Operating Temperature
|
0 deg.C to 45 deg.C
|
|
Operating Humidity
|
30% to 90% (non-condensing)
|
|
Certifications
|
CE, FCC, RoHs
|
Power
|
Power Input
|
12V DC IN (Lockable Power Jack)
|
|
Power Consumption
|
56W (typ.)(Max.backlight & high CPU load)
|
Order Options
|
RAM
|
ODIMM DDR3L Max 8GB
|
|
Storage
|
Mini PCIe SSD
|
|
OS
|
Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded 8 Standard
Windows Embedded 7 Standard
|
