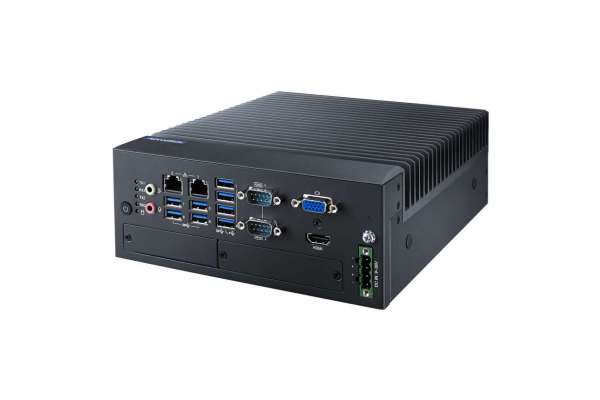

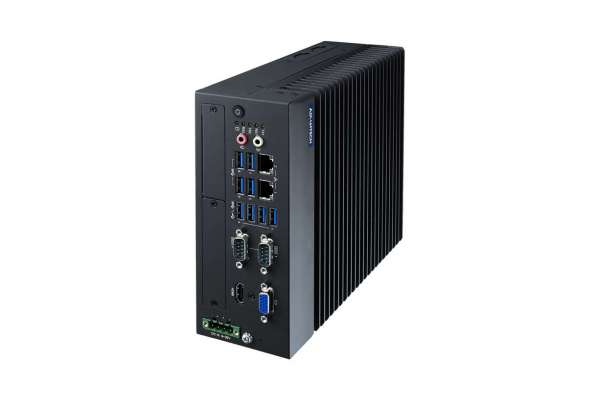

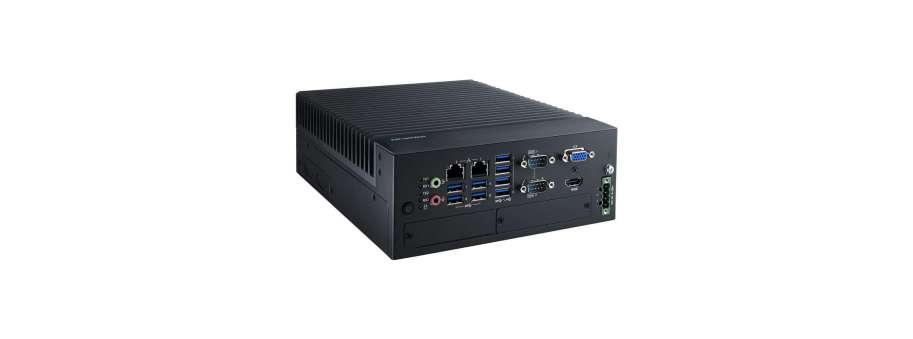

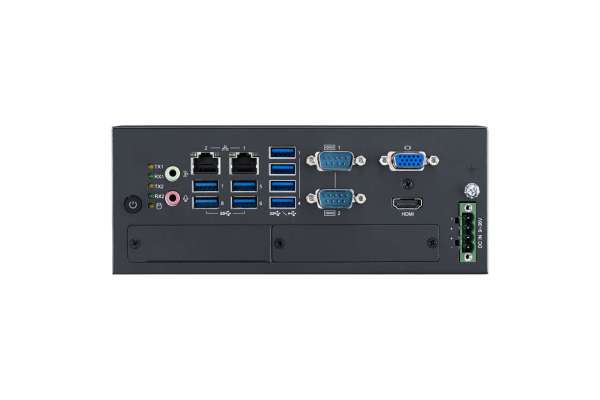

Compact Fanless System with 12th Gen Intel® Core™ i CPU Socket (LGA 1700) Advantech MIC-770 V3

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-770V3W-00A1 Компактний промисловий комп'ютер Advantech MIC-770V3W R680E, Modular IPC  60 443,9
MIC-770V3H-00A1 Компактний промисловий комп'ютер Advantech MIC-770V3H H610E, Modular IPC  54 404,2
  • Intel® 12th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/ H610E chipset
  • Wide operating temperature (-20 ~ 60 °C)
  • VGA and HDMI output
  • 2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1)
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
  • 1 x 2.5" HDD/SSD, 1 x mSATA, and 1 x NVMe M.2
  • 9 ~ 36 VDC input power range
  • IP40 dust proof for deployment in harsh environment
  • Supports FlexIO and iDoor technology, flexible configure additional HDMI, DP, DVI, COM port, DIO, Remote switch IO
  • Supports Advantech i-Modules
  • Supports Advantech SUSIAPI and embedded software APIs
  • Supports Intel® vPro™/AMT and TPM technologies
  • Supports Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn

For more information see data sheet

Additional information

12th Generation Processor (TDP 35W)

Temperature -20 ~ 60 °C (w/ industrial wide-temp SSD, 0.7m/s air flow)
Chipset R680E/H610E
BIOS AMI 256Mb/128Mb SPI Flash

12th Generation Processor (TDP 65W)

Temperature -20 ~ 50 °C (w/ industrial wide-temp SSD, 0.7m/s air flow)
Chipset R680E/H610E
BIOS AMI 256Mb/128Mb SPI Flash

Memory

Technology Dual-channel DDR5 4800 MHz (R680E SKU supports ECC)
Socket 2 x 262-pin DDR5 SODIMM (up to 32GB per socket)
Maximum Capacity 64GB

Display

Chipset
  • Core i: Intel® UHD Graphics 770
  • Pentium/Celeron: Intel® HD Graphics 710
VGA 1 x DB15, up to 1920 x 1200 maximum resolution
HDMI 1 x HDMI, up to 4096 x 2160@30Hz
Multiple Display
  • R680E: 4 x independent displays (third and fourth display output via optional cable)
  • H610E: 3 x independent displays (third display output via optional cable)

Ethernet

Controller
  • R680E LAN1: Intel® I219LM, LAN2: Intel® i210IT
  • H610E LAN1: Intel® I219V, LAN2: Intel® i210IT
Interface 2 x RJ45

Storage

HDD 1 x 2.5" HDD/SSD (up to 2 x 2.5" SSD by optional kit; 2 x 3.5" HDD by i-Module)
mSATA 1
NVMe M.2 1 x M Key 2280 with PCIe Gen 4 x 4 (R680E SKU, operating temp. -20 ~ 50 °C)
RAID 0/1/5/10 (R680E SKU only)

I/O

USB
  • R680E: 2 x USB3.2 (Gen2), 6 x USB3.2 (Gen1), 1 x USB 2.0 (Internal)
  • H610E: 4 x USB3.2 (Gen1), 4 x USB2.0
Serial Port 2 x DB9, RS-232/422/485 support auto flow control; 4 x RS-232 (Optional)
Audio 2 (1 x line out and 1 x mic in)

Expansion

Module Supports Advantech i-Modules
Mini PCIe/mSATA
  • R680E: 1 x mini PCIe, 1 x mini PCIe/mSATA
  • H610E: 1 x mini PCIe, 1 x mSATA

LED and Switch

LED 2 (1 x Storage and 1 x Power), 4 for COM1 TX/RX and COM2 TX/RX
Button 1 x Power on/off switch
Remote Switch Yes, 2pin terminal block (Optional)

Power

Type ATX/AT
Input Voltage 9 ~ 36 VDC
Power consumption
  • Typical: 45.7W
  • Maximun: 108W
Watchdog Timer
Output System reset
Interval Interval

Environment

Temperature
  • 65W CPU w/ industrial wide Temp. SSD: -20 ~ 50 °C with 0.7 m/s air flow
  • 35W CPU w/ industrial wide Temp. SSD: -20 ~ 60 °C with 0.7 m/s air flow
  • Non-operating: -40 ~ 85 °C
Humidity 95% @ 40 °C (non-condensing)
Vibration
  • With SSD: 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis With 2.5" HDD: 1 Grms @ 5 ~ 500 Hz, random, 1 hr/axis (operating)
  • 2G (non-operating)
Shock
  • With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration (operating)
  • 50G 11 ms (non-operating)

Mechanica

Dimensions (W x H x D) 77 x 192 x 230 mm (3.07" x 7.55" x 9.05")
Weight 2.8 kg (6.17 lbs)
Installation Desktop/wall mount

Certifications

EMC CE/FCC Class A, CCC, BSMI
Safety CB/UL, CCC, BSMI

OS Support

Windows 10, Windows 10 IoT, Linux OS
