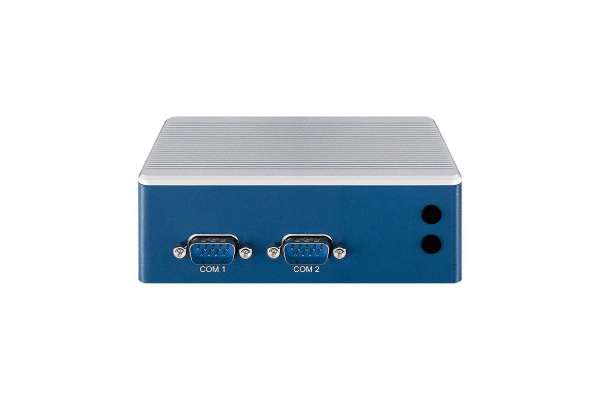

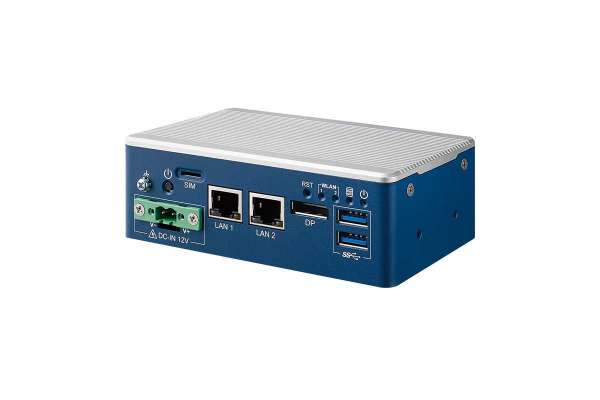

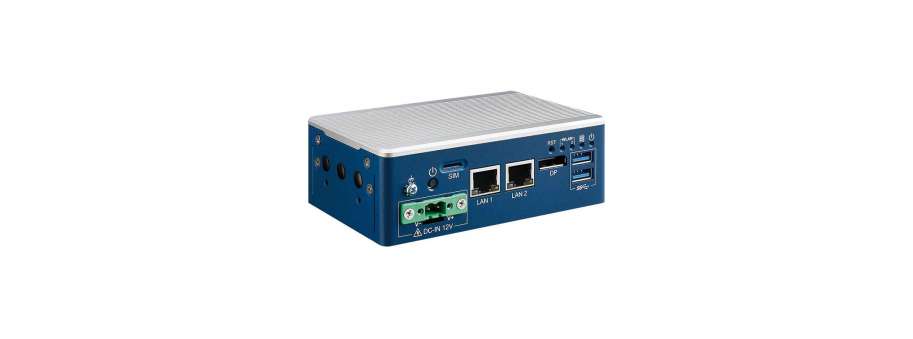

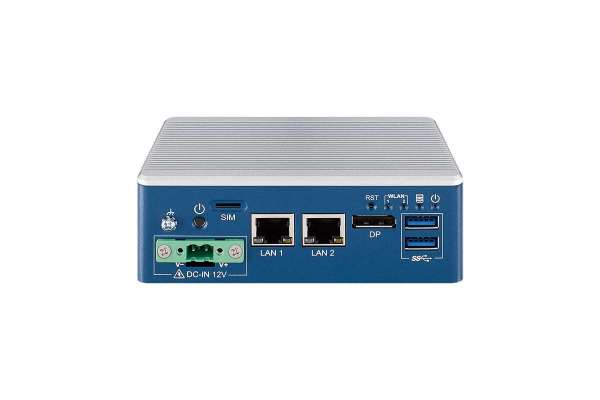

Fanless industrial PC on Intel Atom® x6211E processor (Elkhart Lake) and -40°C to 70°C operating temperature Vecow PBC-1000

Price and avalability

Partnumber Description Price VAT incl Avalability
PBC-1000 Промисловий одноплатний комп'ютер Vecow PBC-1000, onboard Intel Atom® x6211E Processor (Elkhart Lake), 2 GigE LAN, 2 USB3, 2 COM, 1 DP, 1 SIM, 12VDC-IN, -40-70°C  37 926,0

Small Intelligent fanless industrial PC Vecow on Intel Atom® x6211E processor (Elkhart Lake) and -40°C to 70°C operating temperature

Powered by Intel Atom® x6211E processor (Elkhart Lake), Vecow PBC-1000 supports memory DDR4 3200MHz up 32GB and independent display up to 4K resolution. Vecow PBC-1000 features fanless with small form factor design and supports -40°C to 70°C operating temperature and 12V DC power input, making it perfect solution for Intelligent Control, Energy Management, M2M or Industry 4.0 and AIoT applications.

  • Intel Atom® x6000 Series Processor delivers up to 40% faster compute and up to 2X better 3D graphics performance than the former generation solution
  • Small form factor, ultra-compact design
  • Fanless, -40°C to 70°C Operating Temperature
  • 2 GigE LAN, 2 USB 3.0, 2 COM, M.2 Key B, M.2 Key E
  • SIM Socket for WiFi/5G/4G/LTE/GPRS/UMTS
  • Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Additional information

System

Processor Intel Atom® x6211E Processor (EIkhart Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 3200MHz SO-DIMM, up to 32GB

Graphics

Graphics Processor Intel® UHD Graphics for 10th Gen Intel® Processors
Interface 1 DisplayPort : Up to 4096 x 2160 @60Hz

Ethernet

LAN 1 Realtek RTL8119I supports GigE LAN
LAN 2 Realtek RTL8119I supports GigE LAN

Audio

Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Storage

SATA 1 SATA III (6Gbps)

I/O Interface

Serial
  • 1 COM RS-232/422/485
  • 1 COM RS-232
USB 2 USB 3.0
LED Power, HDD, WLAN, WWAN
SIM 1 External SIM Card Socket

Expansion

M.2
  • 1 M.2 Key B (2280)
  • 1 M.2 Key E (2230)

Power

Power Input 12V DC-in
Power Interface 2-pin Terminal Block:V+,V-

Others

Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Software Support

OS Windows 10, Linux

Mechanical

Dimension 126.0mm x 43.5mm x 78.5mm (4.96" x 1.74" x 3.09")
Weight 0.5 kg (1.1 lbs)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)

Environment

Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @70°C
Shock
  • IEC 60068-2-27
  • SSD:50G @ wallmount, Half-sine, 11ms
Vibration
  • IEC 60068-2-64
  • SSD:5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
