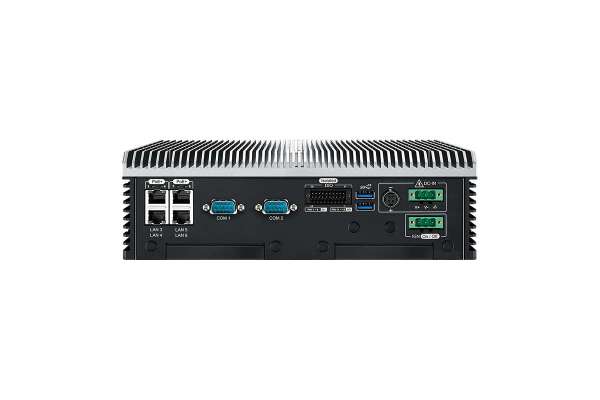

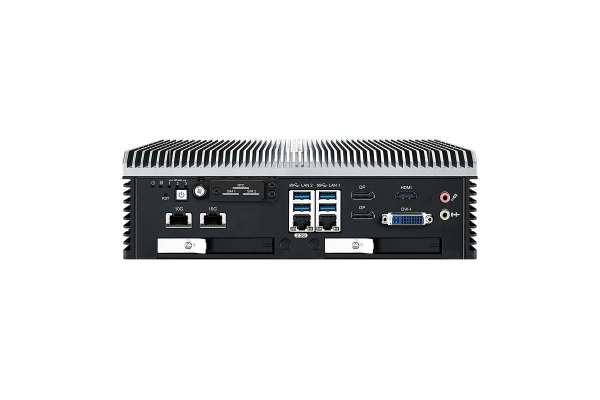

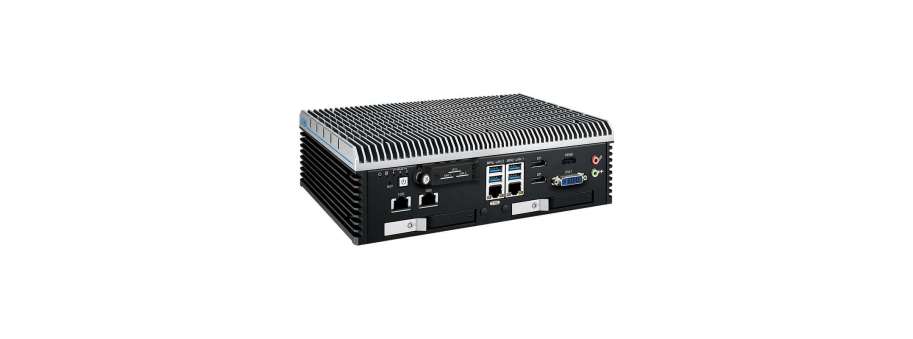

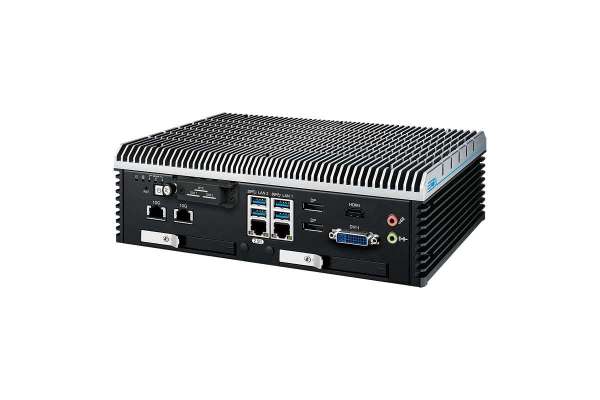

Industrial Fanless Embedded PC on 12th generation 16-core Intel® Core™ i9/i7/i5/i3 processor (Alder Lake) Vecow ECX-3071X
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECX-3071X | Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i7/ i5/ i3 Processor , 2 10G LAN, 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 2 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO | 114 944,0 | |
| ECX-3071XR | Промисловий компактний комп'ютер Vecow ECX-3000, Intel Core i7/ i5/ i3 Processor , 2 10G LAN, 5 2.5G LAN w/4 PoE+, 1 GigE LAN, 2 COM, 2 SIM, 6 USB 3.2, 16 Isolated DIO, 2 SSD Tray | 118 818,0 |
Powered by 12th generation 16-core Intel® Core™ i9/i7/i5/i3 processor (Alder Lake) with Intel® R680E chipset, fanless -40°C to 75°C operating temperature, multiple 10G LAN/2.5G LAN/GigE LAN/SIM socket configuration, max 6 USB 3.2 Gen 2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS mobile availability, 9V to 50V power input. Software ignition power control and rugged reliability in harsh environments, all-in-one integrated features, Vecow ECX-3000 Series Fanless Embedded System is your new generation choices for Machine Vision, In-vehicle Computing, Public Security, Factory Automation, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, and any Edge AI applications.
Additional information
System |
|
| Processor | 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
| Chipset | Intel® R680E Chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 3200MHz SO-DIMM, up to 64GB (ECC/Non-ECC) |
| OS | Windows 10, Linux |
I/O Interface |
|
| Serial | Up to 4 COM RS-232/422/485 |
| USB | 6 USB 3.2 Gen 2 |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
| RTC Battery | Front-access RTC Battery |
Expansion |
|
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA |
| M.2 |
|
| SUMIT A, B | 2 SUMIT Slot (Optional) |
Graphics |
|
| Graphics Processor | Intel® UHD Graphics 770 driven by Intel® Xe Architecture |
| Interface |
4 independent displays :
|
Storage |
|
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
| Storage Device |
|
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® I225 2.5GigE LAN supports TSN |
2.5G PoE |
|
| LAN 3 to LAN 6 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I225 |
2.5G Ethernet (ECX-3025R/3025) |
|
| LAN 7 to LAN 9 | Intel® I225 2.5GigE LAN |
10G Ethernet (ECX-3071XR/3071X) |
|
| LAN 7 to LAN 8 | Intel® X710-AT2 10GigE LAN |
Power |
|
| Power Input | DC 9V to 50V |
| Power Interface |
|
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |
|
| Dimension | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting |
|
Environment |
|
| Operating Temperature |
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @75°C |
| Shock |
|
| Vibration |
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
