9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots Cincoze DS-1202

Price and avalability

Partnumber Description Price VAT incl Avalability
DS-1202-R10 Компактний комп'ютер Cincoze DS-1202-R10, 9/8th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots  67 121,3

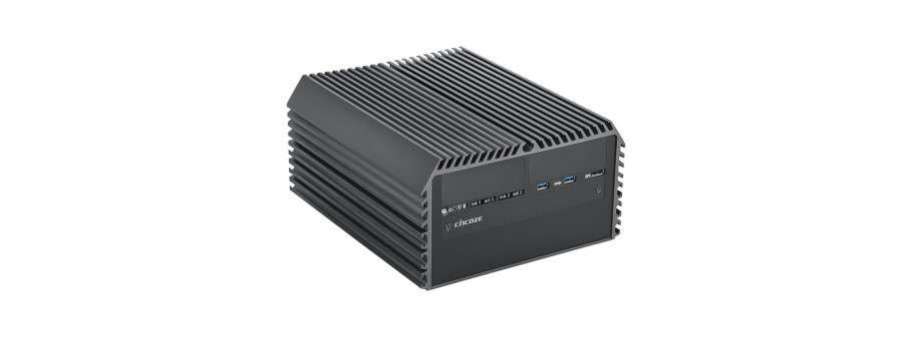

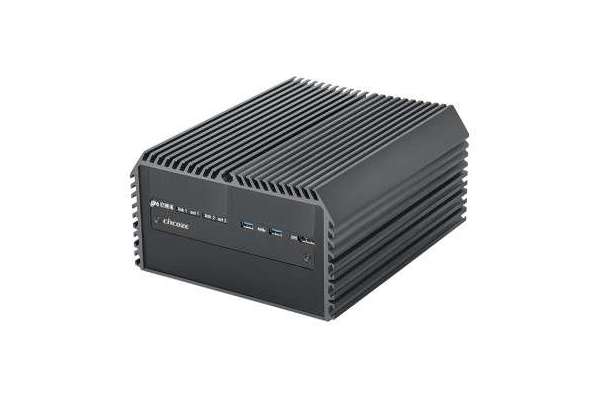

DS-1202 is a high performance fanless embedded computer, powered by 9/8th Generation Intel® Core™ processor (Coee Lake) with up to 8 cores and 64GB DDR4 memory capacity for unprecedented performance to fulfill all kinds of high-end computing requirements. The system also incorporates rich I/O, such as 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 1x DVI-I, 2x DisplayPort, and 1x M.2 Key M 2280 socket for ultra-fast data transfer speed. Based on Cincoze’ innovative CMI & CFM Technology, it allows users to expand I/O and functionalities through ready-to-use modules, such as GbE/PoE ports, serial ports, optical isolated digital I/O and power ignition function. Furthermore, DS-1202 is available with two PCI(e) expansion slots to accommodate versatile add-on cards. Designed to operate under harsh conditions, DS-1202 has passed rigorous testing like EN50121-3-2 and EN60950-1 to fulfill industrial applications such as rolling stock. Besides, DS-1202 features with wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock/vibration (5G/50G), and industrial-grade protections (OVP, OCP, ESD Surge, ...etc).

  • Supports 9/8th Generation Intel® Core™ / Pentium® / Celeron® Octa Cores 35W/65W LGA 1151 Processors
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
  • Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
  • 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
  • 2x Front Accessible SIM Card Slots for Signal Redundancy
  • 2x PCI/PCIe Slots for Add-on Cards (Maximum Length: 235 mm)

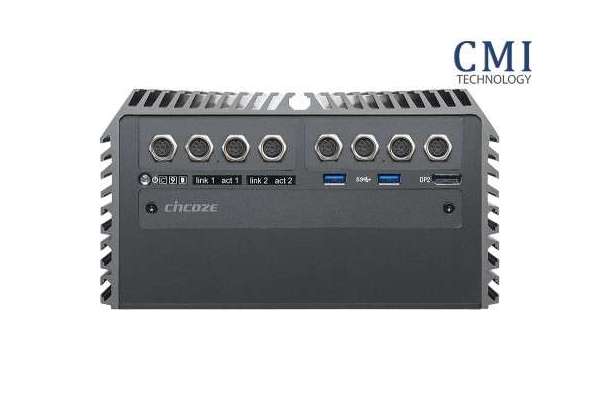

  • 4x CMI Slots for Modular I/O Expansions
  • 1x CFM Slot for Power Ignition Sensing Function
  • Wide Operating Temperature (-40°C to 70°C )
  • EN50121-3-2 Certified / LVD EN62368-1

Additional information

Processor

9th Generation Intel® Coffee Lake-R S Series CPU
  • Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
  • Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
  • Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
  • Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
  • Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
  • Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
8th Generation Intel® Coee Lake S Series CPU

- Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz

- 12M Cache, TDP 65W - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz

- 9M Cache, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz

- 6M Cache, TDP 65W - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz

- 12M Cache, TDP 35W - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz

- 9M Cache, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz

- 6M Cache, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz

- 4M Cache, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz

- 4M Cache, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz

- 2M Cache, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz

- 2M Cache, TDP 35W

BIOS

AMI 32MB SPI BIOS
Chipset Intel® Q370
Memory 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 64 GB (Un-buffered and Non-ECC Type)
Graphics
  • Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3
  • Integrated Intel® UHD Graphics 610: Pentium® /Celeron®
  • Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)
Audio
  • Realtek® ALC888
  • High Definition Audio

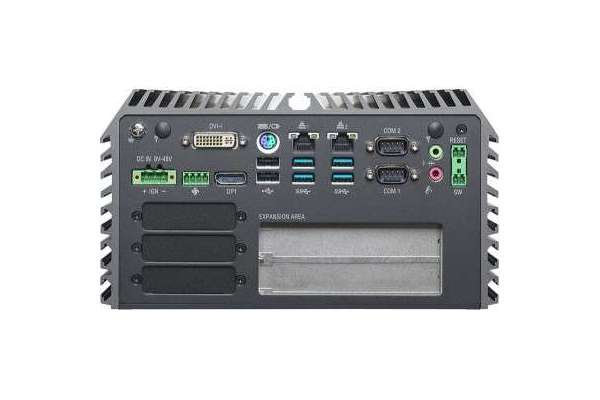

External I/O Interface
  • 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
  • 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz)
  • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I219-LM
  • 2x USB 3.1 Gen2 (Type A)
  • 4x USB 3.0 (Type A)
  • 2x USB 2.0 (Type A)
  • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
  • 1x PS/2, 6-pin mini-DIN Female Connector
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/Off Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Reset Connector, 2-pin Terminal Block
  • 1x Remote Power On/Off Connector, 2-pin Terminal Block
  • 1x External Fan Connector, 4-Pin Terminal Block (Supports smart fan function)
Storage
  • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable Supports RAID 0/1
  • 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
  • 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
Expansion
  • 3x Full-size Mini-PCIe Socket
  • 2x SIM Socket
  • 1x CFM (Control Function Module) Interface
  • 2x CMI (Combined Multiple I/O) High Speed Interface
  • 2x CMI (Combined Multiple I/O) Low Speed Interface
  • 2x Antenna Hole
  • 2x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 110 x 237 mm
Other Functions
  • Supports Instant Reboot Technology (0.2 sec)
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
Power Requirement
  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 1x 3-Pin Terminal Block
  • Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional)
Physical
  • Dimensions (WxDxH): 227 x 261 x 128 mm
  • Weight: 5.14 kg
  • Construction: Extruded Aluminum with Heavy Duty Metal
  • Mounting: Wall Mount
  • Unibody Chassis
  • Fanless Design
  • Jumper-less Design
Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • ESD Protection: +/-8kV (air), +/-4kV (contact)
  • Surge Protection: 2 kV
Operating System
  • Windows® 10
  • Linux: Supports by project
Environment
  • Operating Temperature: 35W TDP Processor: -40°C to 70°C 51~65W TDP Processor: -40°C to 45°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 95%RH @ 70°C (non-Condensing)
  • Shock: Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
  • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
  • MTBF: 396,565 Hours
Certification
  • EMC: CE, FCC Class A, EN50121-3-2
  • Safety: LVD EN62368-1
