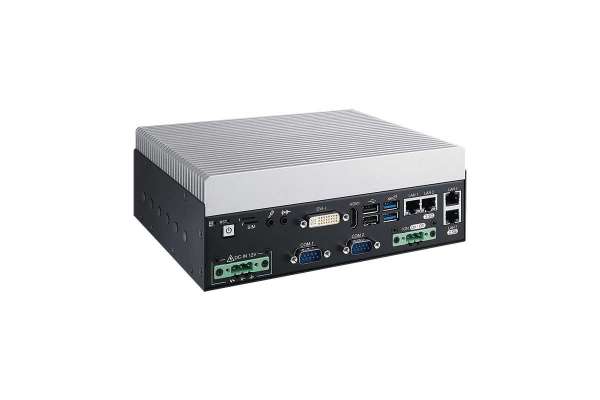

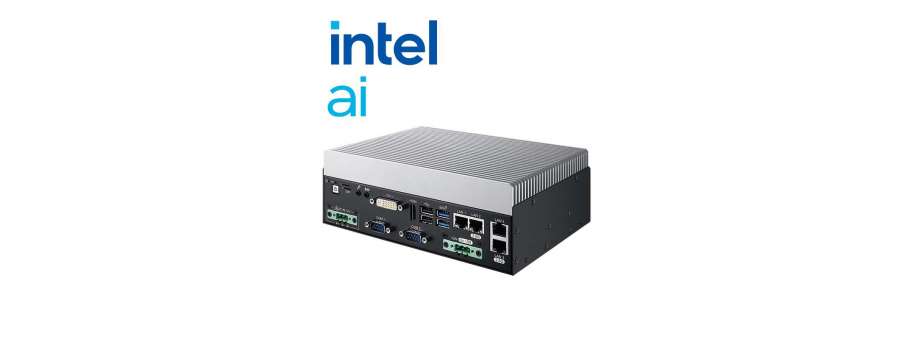

Fanless embedded system powered by Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor 3 2.5G LAN, 1 GigE LAN, 4 USB, 2 COM Vecow VCM-2000

Manufacturer: Vecow
Facebook Twitter Linkedin Mail
  • Workstation-grade Platform : Intel® Core™ 200S Series Processor running with Intel® H610E PCH supports max 65W TDP CPU
  • Supports 2 DIMM up to 96GB DDR5 5600MHz memory
  • 2 USB 3.2, 2 USB 2.0, 4 COM RS-232/422/485
  • 4 Independent Intel® GigE LAN ports, including 3x 2.5GbE
  • 2 External SIM Card Socket support WiFi/4G/5G/LTE/GPRS/UMTS
  • Key E, Key B, 2 Mini PCIe for PCIe/USB/SIM Card expansions
  • 12V DC Power Input, optional supports 9V to 36V wide range DC power input, Software Ignition Control
  • Supports operating temperatures from -40°C to 60°C

Additional information

System
Processor
  • 24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S)
  • 24-core 14th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S Refresh)
  • 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
  • 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel H610E
BIOS AMI
SIO IT8786E
Memory 2 DDR5 5600MHz SO-DIMM, up to 96GB
OS Windows 11, Windows 10, Linux

I/O Interface
Serial 4 COM RS-232/422/485
USB
  • 2 USB 3.2 Type-A
  • 2 USB 2.0 Type-A
LED Power, HDD
SIM Card 2 External SIM Card Sockets

Expansion
M.2
  • 1 M.2 Key E Socket (2230, PCIe x2 /USB 2)
  • 1 M.2 Key B Socket (2280/3042/3052, default PCIe x1/ USB 3.2/ USB 2.0) with SIM
Mini PCIe
  • 1 Full-size Mini PCIe (PCIe x1, SATA, USB 2)
  • 1 Full-size Mini PCIe (PCIe x1, SATA, USB 2) with SIM

Graphics
Graphics Processor Intel® Xe LPG Graphics architecture, up to 4Xe Graphics Engines
Interface
  • 1 HDMI 2.0 : Up to 3840 x 2160 @60Hz
  • 1 DVI-I : Up to 1920 x 1080 @60Hz

Storage
SATA 2 SATA III (6Gbps) for SSD/HDD
M.2
  • 1 M.2 Key M Socket (2242/2280, PCIe x4)
  • 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps, share with expansion)

Audio
Audio Codec Realtek ALC888S-VD2, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 to 4 Intel® I226 2.5 GigE LAN

Power
Power Input
  • VCM-2000 : 12V DC-in
  • VCM-2000A : 9V to 36V wide range DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block

Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats

Mechanical
Dimensions 209.0mm x 150.5mm x 75.0mm (8.23" x 5.93" x 2.95")
Weight 2.31kg (5.09lb)
Mounting
  • Wallmount by mounting bracket
  • DIN Rail Mount (Optional)
  • VESA Mount (Optional)

Environment
Operating Temp. (with air flow)
  • 35W TDP CPU with heat sink : -40°C to 60°C (-40°F to 140°F) with air flow
  • 65W TDP CPU with fan sink : -40°C to 60°C (-40°F to 140°F)
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @60°C
Shock IEC 60068-2-27 SSD : 50G @wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, ICES, EN50155, EN50121-3-2
