High Performance and Embedded Computer on Intel® Arrow Lake-S Core™ Ultra 200S Series Processors Cincoze DX-1300

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

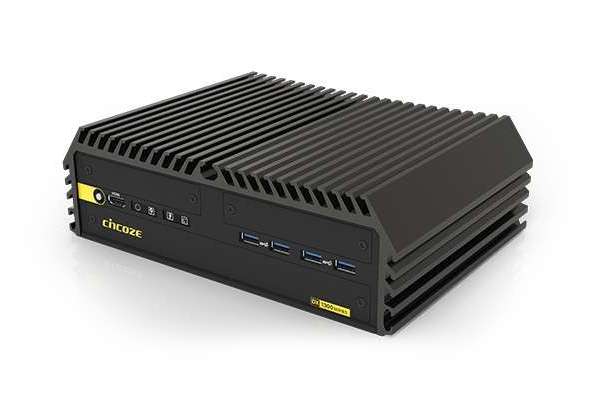

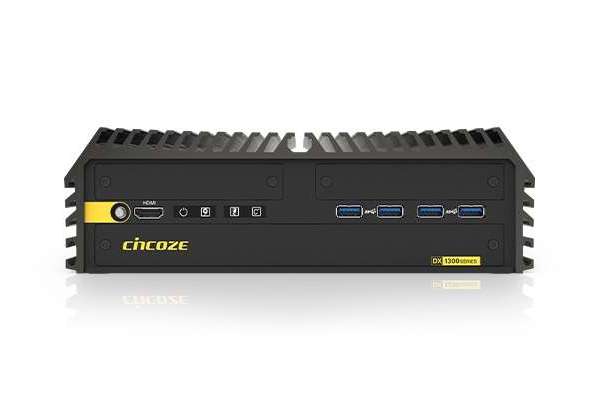

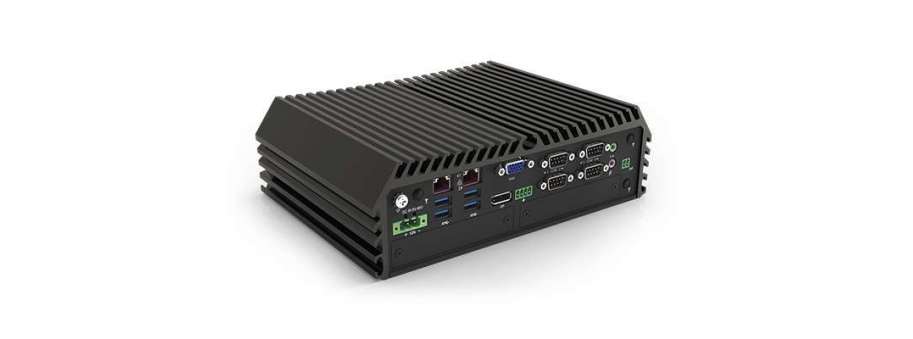

The DX-1300 is a compact industrial computer engineered for high-performance edge computing. Powered by an Intel Arrow Lake-S Core™ Ultra 200S series processor, it supports demanding edge applications, including advanced image processing, AI inference, and data integration across multiple tasks. The DX-1300 series packs exceptional computing performance and a rich feature set into a compact chassis while maintaining industrial-grade ruggedness. It is particularly well-suited for high-performance applications with limited installation space and has earned high acclaim in the manufacturing, in-vehicle, and railway markets.

  • Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
  • 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
  • Wide Operating Temperature -40°C to 60°C
  • Optional CMI Modules for I/O Expansion
  • Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE

Additional information

System
Processor
Arrow Lake-S Ultra 200S Series CPU:
- Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W
- Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W
- Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W
- Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W
- Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W
- Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W
- Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W
Chipset
Intel W880 Chipset
Memory
2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type
- Ultra 9 / 7: Supports Up to 6400MHz, 96GB
- Ultra 5: Supports Up to 5600MH
BIOS
AMI BIOS

Graphics
Graphics Engine
Integrated Intel® Xe LPG Graphics
Maximum Display Output
Supports Three Independent Display
VGA
1x VGA Connector : 1920 x 1200@60Hz
DP
1x DP Connector : 4096 x 2304@60Hz
- Support cable switch HDMI 4096 x 2160@30Hz
* Verified maximum resolution: 3840x2160 @60Hz
HDMI
1x HDMI Connector : 4096x2160@30Hz
* Verified maximum resolution: 3840x2160 @30Hz

Audio
Audio Codec
Realtek® ALC888, High Definition Audio
Line-out
1x Line-out, Phone Jack 3.5mm
Mic-in
1x Mic-in, Phone Jack 3.5mm

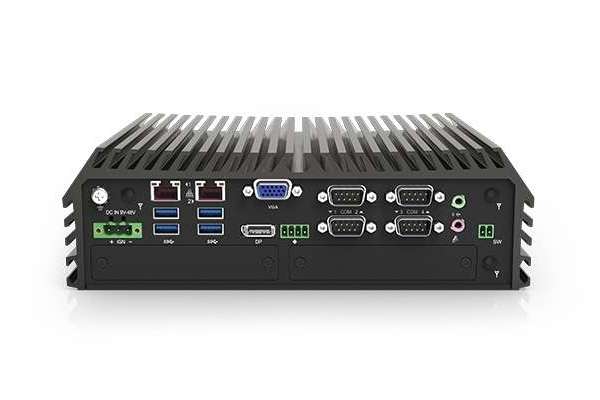

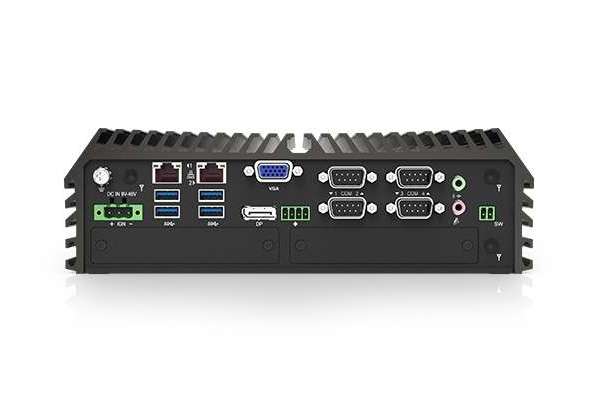

I/O
LAN
2x 2.5 GbE LAN, RJ45
- GbE1~2: Int
COM
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 4x 10Gbps USB 3.2 Gen2x1, Type A
  • 4x 5Gbps USB 3.2 Gen1x1, Type A

Storage / Expansion
2.5" SSD / HDD
2x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion
  • 1x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / SATA / USB 2.0), Support Storage / Add-on Card Expansion
M.2 Key E Socket
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless / Bluetooth / Storage / Intel CNVi Module Expansion
SIM
1x SIM Socket
CMI (Combined Multiple I/O) Socket
  • 2x High Speed CMI Interface for optional CMI Module Expansion
  • 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Socket
  • 1x CFM-IGN Interface for optional CFM-IGN Module Expansion
  • 1x CFM-TPM Interface for optional CFM-TPM Module Expansion

Power
Power Button
1x ATX Power On/Off Button
Power Mode Switch
1x AT/ATX Mode Switch
Power Input
9-48VDC, 3-pin Terminal Block
Remote Power On/Off
1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED
1x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption
• 35W CPU: 162W
• 65W CPU: 272.88W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in test
Inrush Current (Peak)
• 35W CPU: 5.24 A@24V
• 65W CPU: 4.939 A@24V

Physical
Dimension ( W x D x H )
242.2 x 173 x 75mm
Weight Information
3.59 kg
Mechanical Construction
Extruded Aluminum with Heavy Duty Metal
Mounting
Wall / DIN-RAIL / VESA / Side Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Reliability & Protection
Reverse Power Input Protection
Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection
15A
CMOS Battery Backup
SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF
332,808 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Operating System
Windows
Windows®11, Windows® 10
Linux
Ubuntu 24.04

Environment
Operating Temperature
• 35W TDP Processor: -40°C to 60°C (-40°F to 140°F)
• 65W TDP Processor: -40°C to 50°C (-40°F to 122°F) With External Fan Kit
- With extended temperature peripherals; Ambient with air flow
- According to IEC60068-2-1, IEC60068-2-2,
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Relative Humidity
95%@60°C (non-Condensing)
Shock
MIL-STD-810H
Vibration
MIL-STD-810H
EMC
CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Railway
• EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019
Fire Protection
EN 45545-2
Safety
UL, cUL, CB, IEC, EN 62368-1
