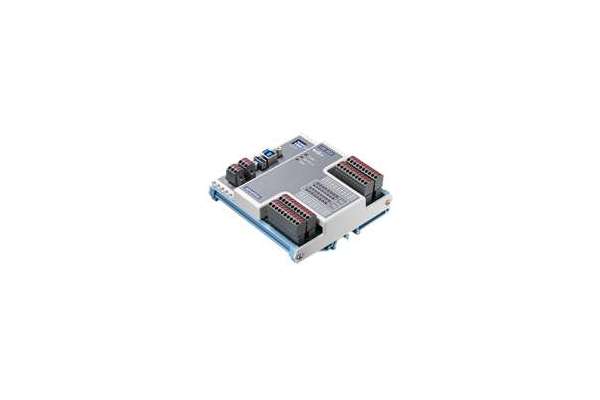

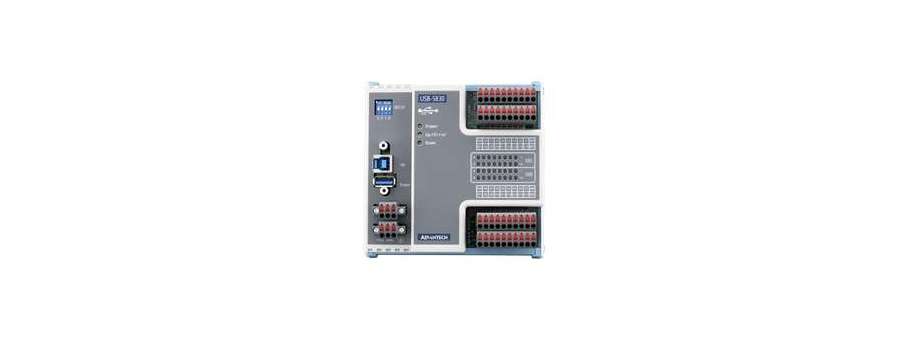

16-ch Isolated I/O Module USB-5830

16-ch Isolated DI and 16-ch Isolated DO USB 3.0 I/O Module USB-5830

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5830-AE Зовнішній модуль вводу-виводу Advantech 16-ch IDI & 16-ch IDO USB3.0 I/O module  9 188,0

Additional information

Part Number USB-5830-AE

General


Power Consumption Typical 240mA @ 5V; Max. 480mA @ 5V
OS Support Windows XP/7/8/10 and Linux
Dimensions 120 mm x 120 mm x 40 mm
Bus USB 3.0
I/O Connectors Onboard removable European type connector
Operating Temperature 0~60 (32~140°F)
Programming Language C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O


Load current 350mA/ch (sink) @ 25°C ; 250mA/ch (sink) @ 60°C
Opto-isolator Response Time 100us
Isolation Protection 2,500 VDC
Input Channels 16
Input Range Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)
Output Channels 16
Output Ranges 5 ~ 40 VDC
