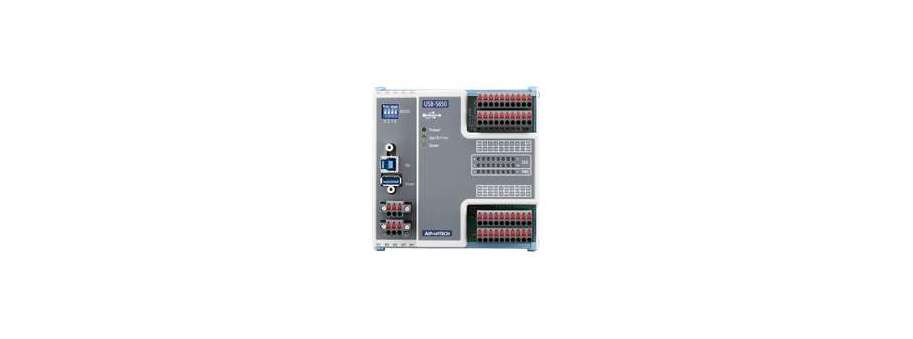

16-ch Isolated Digital Module USB-5850

16-ch Isolated Digital Input and 8-ch PhotoMOS Relay USB 3.0 I/O Module USB-5850

Signal input/output >> External USB modules

 Price and avalability

Manufacturer: Advantech Co., Ltd.

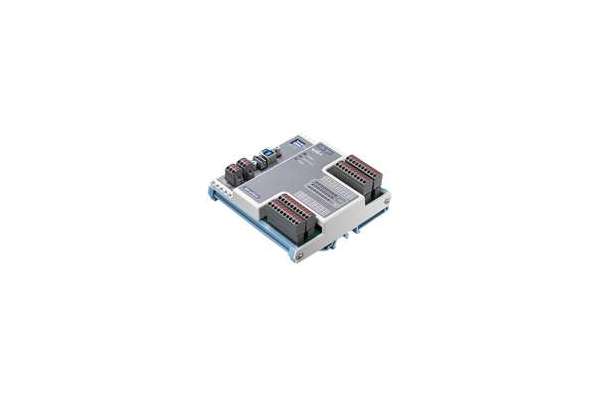

The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 16-ch digital input and 8-ch PhotoMOS Relay output (Form A) isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • 1500 VDC optical isolation for relay outputs
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Price and avalability

Partnumber Description Price VAT incl Avalability
USB-5850-AE Зовнішній модуль вводу-виводу Advantech 16-ch IDI & 8-ch PhotoMOS USB3.0 I/O module  9 433,7

Additional information

Part Number USB-5850-AE

Relay


Output Channels 8
Max. Switching Power 62.5VA, 60W
Peak load current 4A @ 100ms
Relay type PhotoMOS SPST (Form A)
Turn-off time 0.6 ms typical
Isolation protection 1,500 V DC
Load current 1.2A
Load Voltage 60V (AC peak or DC)

General


OS Support Windows XP/7/8/10 and Linux
Power Consumption Typical 240mA @ 5V; Max. 480mA @ 5V
Dimensions 120 mm x 120 mm x 40 mm
Bus USB 3.0
I/O Connectors Onboard removable European type connector
Operating Temperature 0~60 (32~140°F)
Programming Language C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt

Isolated Digital I/O


Opto-isolator Response Time 100us
Isolation Protection 2,500 VDC
Input Channels 16
Input Range Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.)
