Extended T range Input Wide range

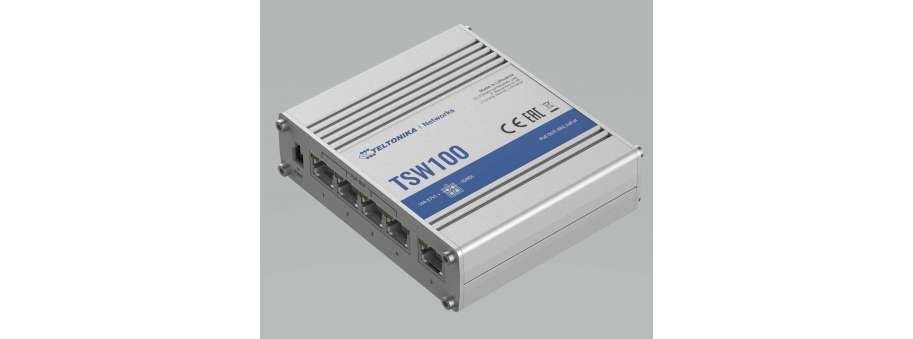

Industrial unmanaged poe+ switch with 4 x PoE ports with 802.3af and 802.3at support Teltonika TSW100

Price and avalability

Partnumber Description Price VAT incl Avalability
TSW100000000 Мережевий комутатор Teltonika, 5 портів LAN, 10/100/1000 Мбит, PoE ports Port 1- 4, монтаж на DIN-рейку  3 507,8 Доступно
088-00270 Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT)  210,5
058R-00229 Кабель живлення 4-pin із гвинтовою клемою  559,9 Доступно

TSW100 is a robust industrial grade switch with 5x Gigabit Ethernet ports, 4 of which can be used to power connected devices via PoE 802.3af/802.3at standards.

  • TSW100 is the first industrial unmanaged switch from Teltonika Networks.
  • Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
  • Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
  • It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
  • Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.

User manual

Additional information

Ethernet

LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

PoE

PoE ports
Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 120 W

Performance specifications

Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries

Power

Connector 4 pin industrial DC power socket
Input voltage range 7-57 VDC
Input voltage range for PoE 44-57 VDC
Power consumption (idle/max no PoE/max) 2 W/9 W/129 W

Physical interfaces (ports, leds)

Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s 1 x Power LED, 10 x LAN status LED’s
Power 1 x 4 pin DC connector
Ground 1 x Grounding screw

Physical specification

Casing material Full aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement

Operating environment

Operating temperature
-40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
