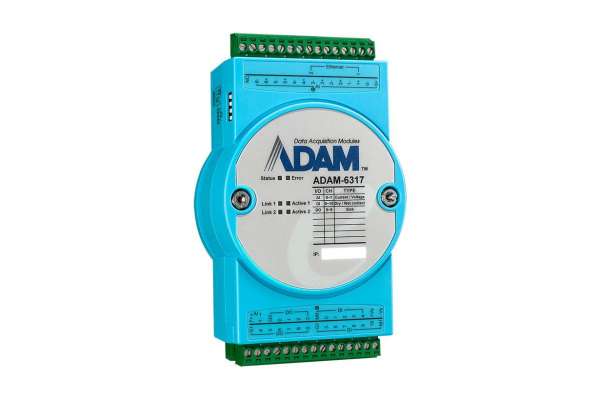

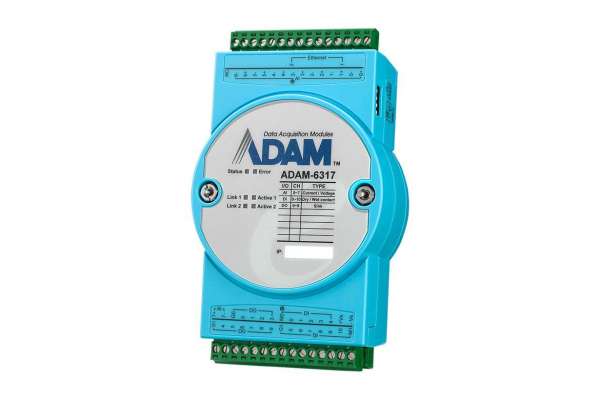

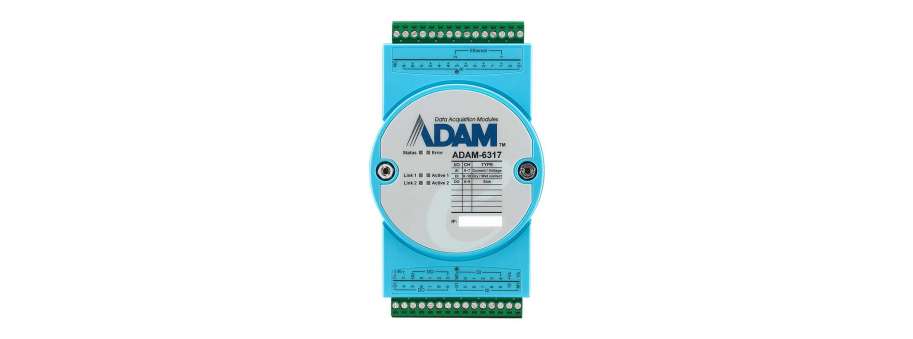

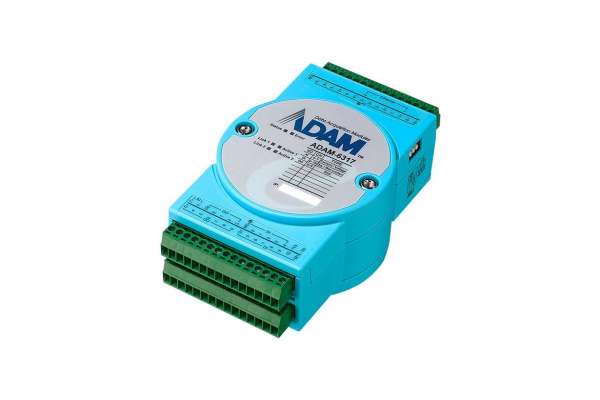

8AI/11DI/10DO IoT Modbus/OPC UA Ethernet Remote I/O Advantech ADAM-6317
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ADAM-6317-A1 | Модуль програмований дискретного вводу виводу Advantech ADAM-6317 OPC UA and Security Remote I/O_AI Module, 8AI/11DI/10DO | 22 265,0 |
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost
Additional information
Analog Input |
|
| Channels | 8 (differential) |
| Sampling Rate | 10 or 100 samples/ second (total) |
| Resolution | 16 bits |
| Input Range |
0 ~ 150mV, 0 ~ 500mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V, ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20mA |
Digital Input |
|
| Channels | 11 |
| Dry contact |
logic 0: Open logic 1: Closed to ground |
| Wet contact |
logic 0: 0 ~ 3 VDC logic 1: 10 ~ 30 VDC |
| DI5~DI10 support 3 kHz counter input | |
| DI5~DI10 support 3 kHz frequency input | |
Digital Output |
|
| Channels | 10 |
| Output type | Sink type, 30 VDC, 0.1A max. per channel |
| DO4~DO9 support 3 kHz pulse output |
