IP67 protected industrial keyboard X-NP81D

IP67 protected Intrinsically safe industrial keyboard X-key X-NP81D

System Components >> Industrial keyboards and devices

 Price and avalability

Manufacturer: X-Key (China) Limited

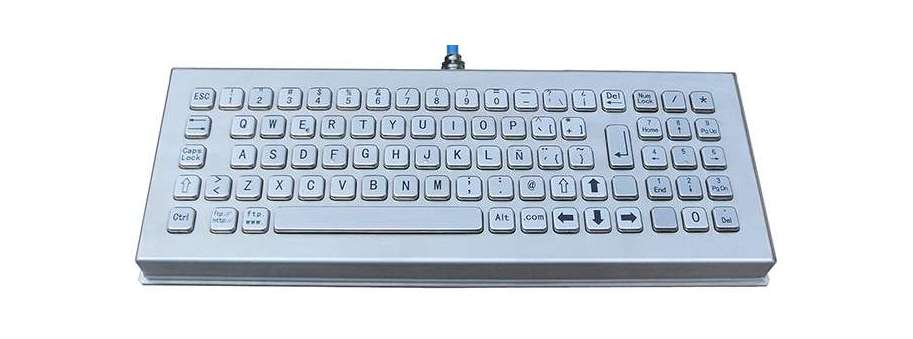

81 keys vandal proof stainless steel intrinsically safe industrial desk top keyboard with numeric keypad, with carbon-on-gold key switch technology for fast and accurate data input.

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. Waterproof execution according to degree of protection IP67, the keyboard is sealed against the ingress or liquid and dirt. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

Price and avalability

Partnumber Description Price VAT incl Avalability
X-NP811D Промислова IP67 клавіатура X-Key X-NP81D, настільна/цифрова/іскробезпечна/з нержавіючої сталі/81 клавіша/344.5 x 125 x 30mm  15 639,5

Additional information

MECHANICAL DATA

  • Key: 81 keys, super quality brushed stainless steel
  • Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
  • Key travel:2.0mm
  • Front Plate: Super quality brushed stainless steel
  • Actuator/keys/Casing materials: Super quality stainless steel
  • G.W.: 2.4KGs(X-NP811D)
  • 344.5mm x 125.0mm x 30.0mm (L x W x H)

ELECTRICAL ATA

  • Ex-mark: ExibI.
  • Intrinsically safe data : Ui: DC5V; I: 40mA; Ci: 0μF; Li: 0mH
  • Supply Voltage: +5V DC +/-5%
  • Current Rating: appr. 20mA
  • Contact materials: carbon-on-gold key switch technology
  • Interface: PS2, USB available.
  • OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • RELIABILITY
  • RoHS Compliant, CE and FCC
  • Protection Level: IP65
  • Vandal resistant IK09
  • MTBF >50000H
  • MTTR <30min
