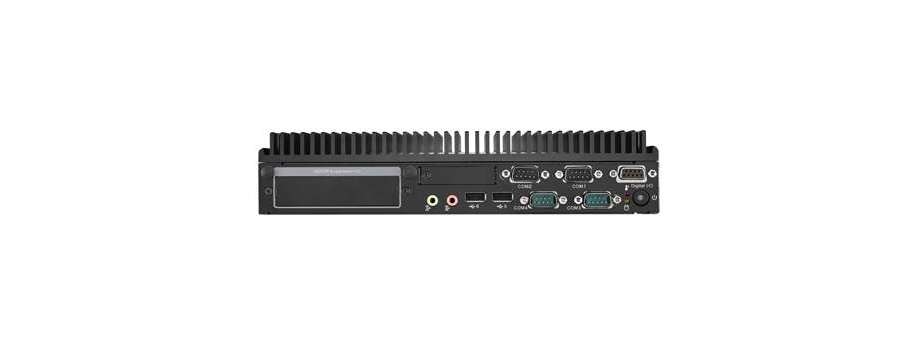

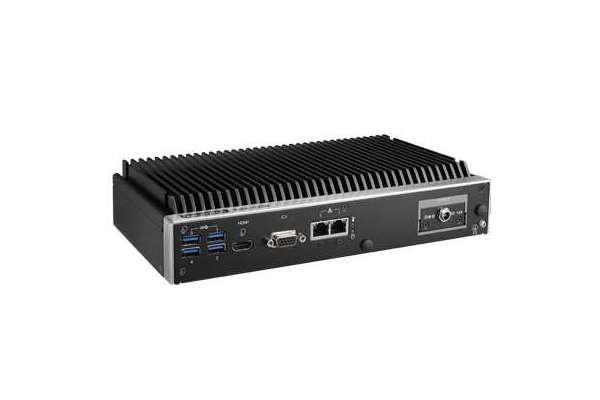

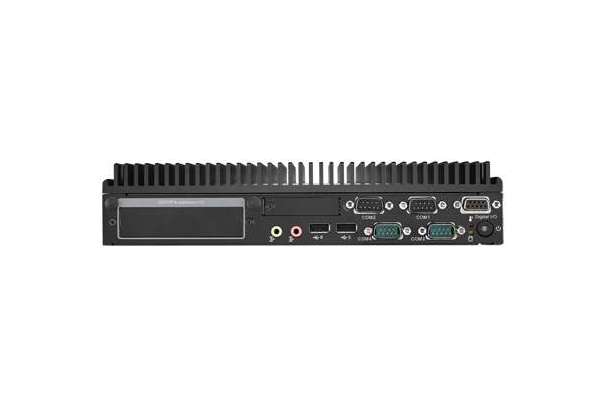

Modular Fanless Box PC on Intel 6th Generation Core™ i3/i5/i7 Advantech ARK-2250L

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-2250L-U6A2 Компактний промисловий комп'ютер Advantech ARK-2250L, i7-6600U 2.6 GHz, DDR4  82 309,9
ARK-2250L-U3A2 Компактний промисловий комп'ютер Advantech ARK-2250L, i3-6100U 2.3 GHz, DDR4 2.3GHz, 2xLAN, 4xCOM, 4xUSB, VGA + HDMI  44 716,0
ARK-2250L-U4A2 Компактний комп'ютер Advantech ARK-2250L, i3-7100U, DDR4 2.4GHz  52 901,0
ARK-2250L-U6A3 Компактний промисловий комп'ютер Advantech ARK-2250L A2 A201-1 i7-6600U DDR4 2.6GHz  82 113,2
ARK-2250L-U3A3 Компактний промисловий комп'ютер Advantech ARK-2250L A2 A201-1 i3-6100U w/o audio  52 901,0

Actual replacement of the ARK-2150 model

  • Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
  • VGA and HDMI dual display, option 3rd display for triple display
  • 12V lockable DC jack power input
  • 9-36V power module compatible with all-in-one ordering
  • -20 ~ 60 °C extend temperature operating
  • 2 x full size mPCIe expansion for WIFI/Cellular communication module
  • 1 x full size mSATA and 1 x 2.5" SATA storage device
  • Advantech iDoor module compatible
  • Advantech ARK Plus module support by dual layer configurations

Additional information

Part Number ARK-2250L-U3A1E ARK-2250L-U6A1E ARK-2250L-U6A2 ARK-2250L-U3A2

Processor

CPU

Intel Core i3 6100U Intel Core i7 6600U Intel Core i7 6600U Intel Core i3 6100U
Core Number 2 2 2 2
Frequency 2.3 GHz 2.6 GHz 2.6 GHz 2.3 GHz
L3 Cache 3 MB 4 MB 3 MB 3 MB
BIOS AMI UEFI 128 Mbit AMI UEFI 128 Mbit AMI UEFI 128 Mbit AMI UEFI 128 Mbit

Memory

Technology DDR3L 1600 MHz DDR3L 1600 MHz DDR4 2133MHz SO-DIMM DDR4 2133MHz SO-DIMM
Max. Capacity 8 GB 8 GB 16 GB 16 GB
Socket 1 x 204-pin SO-DIMM 1 x 204-pin SO-DIMM 1 x 260-Pin SO-DIMM 1 x 260-Pin SO-DIMM

Graphics

Controller Intel HD Graphics 520 Intel HD Graphics 520 Intel HD Graphics 520 Intel HD Graphics 520
Graphic Engine DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode
VGA Up to 1920 x 1200 @ 60Hz (No hotplug support) Up to 1920 x 1200 @ 60Hz (No hotplug support) Up to 1920 x 1200 @ 60Hz (No hotplug support) Up to 1920 x 1200 @ 60Hz (No hotplug support)
HDMI HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz
Dual Display Yes, VGA + HDMI Yes, VGA + HDMI Yes, VGA + HDMI Yes, VGA + HDMI
Triple Display VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China)

Ethernet

LAN1 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Interface
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O

Serial port 4 x RS-232/422/485 port, support auto-flow control 4 x RS-232/422/485 port, support auto-flow control 4 x RS-232/422/485 port, support auto-flow control 4 x RS-232/422/485 port, support auto-flow control
USB 4 x USB 3.0, 2 x USB 2.0 4 x USB 3.0, 2 x USB 2.0 4 x USB 3.0, 2 x USB 2.0

4 x USB 3.0, 2 x USB 2.0

Digital I/O 8bit 8bit 8bit 8bit

Others

Watchdog timer 255 levels timer interval, setup by software 255 levels timer interval, setup by software 255 levels timer interval, setup by software 255 levels timer interval, setup by software

Expansion

Mini PCIe 2 x full size Mini PCIe with (CN15 with SIM holder) 2 x full size Mini PCIe with (CN15 with SIM holder) 2 x full size Mini PCIe with (CN15 with SIM holder) 2 x full size Mini PCIe with (CN15 with SIM holder)
iDoor Module 1 set (Optional) 1 set (Optional) 1 set (Optional) 1 set (Optional)

Storage

HDD Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
SSD 1 x full size mSATA socket (CN15, shared with mPCIe) 1 x full size mSATA socket (CN15, shared with mPCIe) 1 x full size mSATA socket (CN15, shared with mPCIe) 1 x full size mSATA socket (CN15, shared with mPCIe)

Software Support

Microsoft Windows Windows 10, Windows 8.1, WES7, Windows 7 Windows 10, Windows 8.1, WES7, Windows 7 Windows 10, Windows 8.1, WES7, Windows 7 Windows 10, Windows 8.1, WES7, Windows 7
Linux Support by project Support by project Support by project Support by project

Power

Power Type ATX ATX ATX ATX
Input Voltage 12 VDC (9 ~ 36 VDC as option) 12 VDC (9 ~ 36 VDC as option) 12 VDC (9 ~ 36 VDC as option) 12 VDC (9 ~ 36 VDC as option)
Power Adaptor AC to DC, DC12V/5A, 60 W (Optional) AC to DC, DC12V/5A, 60 W (Optional) AC to DC, DC12V/5A, 60 W (Optional) AC to DC, DC12V/5A, 60 W (Optional)
Consumption Typical 6.92 W, Max. 41.72 W Typical 7.96 W, Max. 43.28 W Typical 6.92 W, Max. 41.72 W Typical 6.92 W, Max. 41.72 W

Mechanical

Construction Aluminum housing Aluminum housing Aluminum housing Aluminum housing
Mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52") 260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52")
Weight 2.3 kg (5.07 lb) 2.3 kg (5.07 lb) 2.3 kg (5.07 lb) 2.3 kg (5.07 lb)

Environment

Operational Temperature With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
Storage Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Vibration during Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI CE/FCC Class B, CCC, BSMI
Safety Certifications UL, CCC, BSMI UL, CCC, BSMI

UL, CCC, BSMI

UL, CCC, BSMI
