Embedded PC ARK-2250V

Embedded PC Advantech ARK-2250V 6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC In-vehicle Fanless System

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

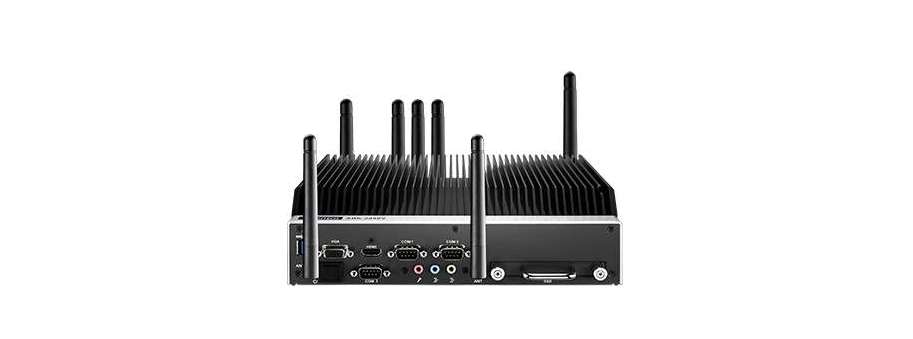

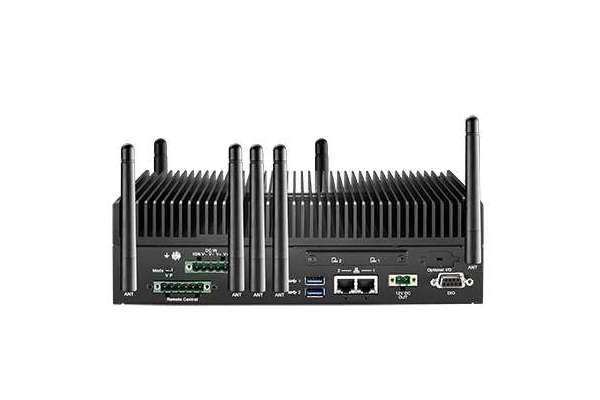

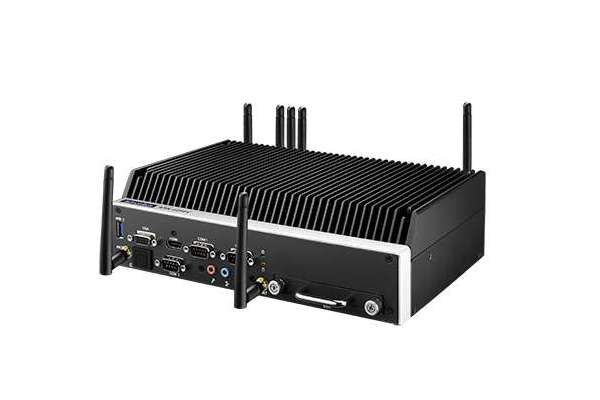

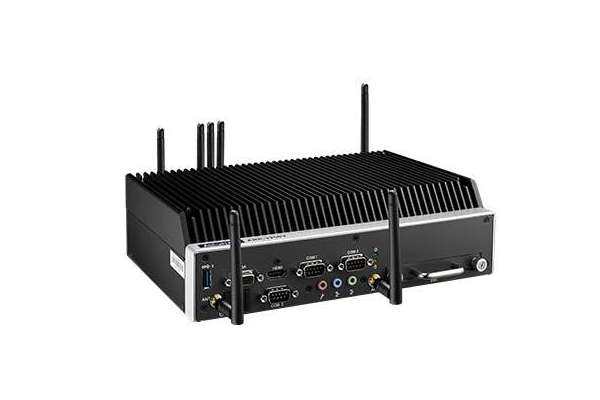

6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC In-vehicle Fanless System

  • Intel i7-6822EQ QC/ Intel i5-6442EQ QC SoC
  • Support TPM2.0
  • Stackable extension design, option extension kit for applications
  • Support 12/24VDC vehicle power input with E-Mark certification
  • Built-in Vehicle Power Ignition Management
  • Diversity Communication Extensible, ex. WLAN, WWAN
  • Certified for EMARK, ISO7637-2, IEC 60721-3-5 5M3, MIL-STD-810G
  • Built-in Advantech remote management software WISE-PaaS/RMM

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-2250V-S9A1E Vehicle PC, Core i5-6442EQ 1.9G, VGA+HDMI  78 624,0
ARK-2250V-U0A1E Vehicle PC, Core i7-6822EQ 2.0G, VGA+HDMI  88 687,3

Additional information

Part Number ARK-2250V-S9A1E ARK-2250V-U0A1E

Processor


CPU Intel i5-6442EQ QC SoC Intel i7-6822EQ QC SoC
Core Number 4 4
Frequency 1.9 GHz 2.0 GHz
L2 Cache 6 MB 8 MB
BIOS AMI EFI AMI EFI

Memory


Technology DDR4 2133MHz DDR4 2133MHz
Max. Capacity 32 GB 32 GB
Socket 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM

Graphics


Chipset QM170 QM170
Graphic Engine DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265
VGA Up to 1920 x 1200 at 60 Hz Up to 1920 x 1200 at 60 Hz
HDMI HDMI 1.4a for HD video playback, 1080P at 60Hz HDMI 1.4a for HD video playback, 1080P at 60Hz
Dual Display VGA + HDMI (Std.) or Dual HDMI (by project) VGA + HDMI (Std.) or Dual HDMI (by project)

Ethernet


LAN1 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio


Interface Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in

I/O


Serial port 3 x RS-232/422/485 port with auto flow control 3 x RS-232/422/485 port with auto flow control
USB 3 x USB3.0 Type A 3 x USB3.0 Type A
GPIO 4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC 4 x DI & 4 x DO w/ 1.5KV isolation, Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel, On-state Voltage: 24 VDC nominal, open collector to 30 VDC
CANBus Optional Optional

Other


Watchdog Timer 255 levels timer interval, setup by software 255 levels timer interval, setup by software
TPM TPM2.0 (Infineon SLB9665) TPM2.0 (Infineon SLB9665)
GPS On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals On board standalone GPS, support GPS, GLONASS, GALILEO , BeiDou and QZSS signals
G-Sensor On board high resolution G-Sensor, up to 13-bit resolution at ± 16g On board high resolution G-Sensor, up to 13-bit resolution at ± 16g

Expansion


Mini PCIe #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key

Storage


2.5" HDD/SSD 1 x 2.5" SATA drive bay 1 x 2.5" SATA drive bay
mSATA 1 x full size mSATA socket (Mini PCIe #1) 1 x full size mSATA socket (Mini PCIe #1)

Software Support


Microsoft Windows Win7, WES7, Win8, WSE8, Win10 Win7, WES7, Win8, WSE8, Win10
Linux Support by project Support by project

Power


Power Type ATX ATX
Input Voltage 12/24VDC with E-Mark certification 12/24VDC with E-Mark certification
Power Ignition Management Selectable boot-up & shut-down voltage, on/off delay time Selectable boot-up & shut-down voltage, on/off delay time
Isolation 1.5KV Isolated 1.5KV Isolated
Consumption TBD TBD

Mechanical


Construction Aluminum housing Aluminum housing
Mounting Wall mounting kit Wall mounting kit
Dimensions 260 x 73 x 160.2mm 260 x 73 x 160.2mm
Weight 3.2 Kg 3.2 Kg

Environment


Operational Temperature With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow With extended temperature peripherals: -20 ~ 70° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

Vibration during Operation IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6

IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6

Shock During Operation IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6

Certification


EMC CE, FCC Class B, CCC, BSMI CE, FCC Class B, CCC, BSMI
Safety Certifications UL, CCC, BSMI, CB, EMARK UL, CCC, BSMI, CB, EMARK
