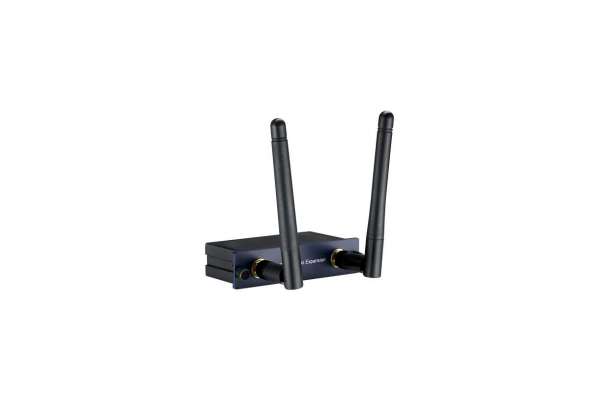

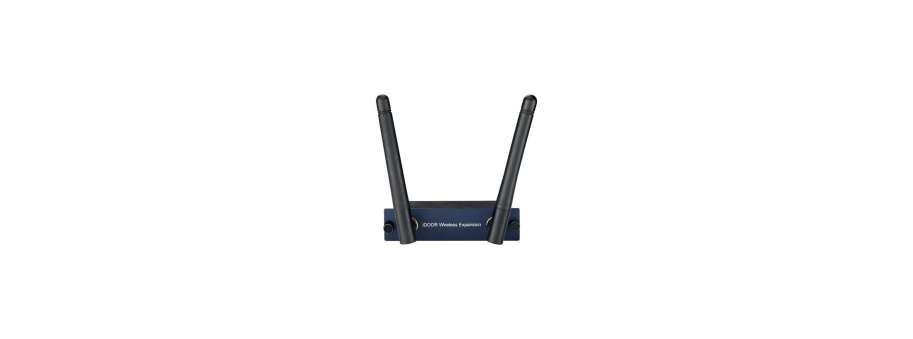

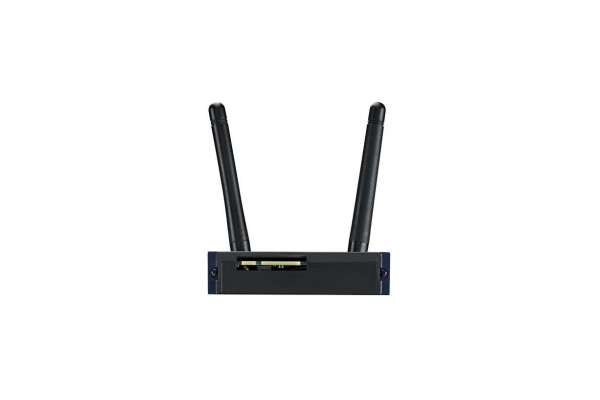

Modular iDoor Box with Wi-Fi, Bluetooth, and Antennas Advantech PCM-24BXWF

Price and avalability

Partnumber Description Price VAT incl Avalability
PCM-24BXWF-AE idoor box,802.11 a/b/g/n/ac 2T2Rw/BT4.1,QCA6174A  4 538,6

The PCM-24BXWF iDoor box is a combination wireless module designed for convenient installation, repair, and upgrades in management and machine-level automation applications. The plug-and-play design supports Wi-Fi/BT M.2 2230 form factor connectors. Utilizing Advantech’s iFactory app, this multiple-band wireless solution supports Windows and Linux operating systems for flexible installation.

  • Modular iDoor box design facilitates plug-and-play installation and upgrades
  • Built-in wireless Wi-Fi module supports M.2 2230 industry-standard connectors
  • Compliant with relevant industry standards (CE RED, FCC ID, etc.) for safe and adaptable application

Additional information

Specifications

Dimensions 81 x 19 x 50 mm (3.1 x .76 x 1.9 in)
Hardware Compatibility Compatible with PCM-24BXBK-AE pre-installed system
Wireless Module
  • Advantech EWM-W163M201E
  • Wi-Fi/BT M.2 2230 module with Atheros
  • QCA6174A-5
Standard Conformance IEEE 802.11 ac/a/b/g/n + Bluetooth 4.2 HS standard
Data Rate 300 Mbps max
Antenna Wi-Fi 2.4 ~ 5GHz dipole antenna
OS Support
  • Windows 7/8/8.1/10
  • Linux drivers are available for download from third-party websites using an open source code (ath10K for Wi-Fi, ath3k for BT functionality)
Operating tTemperature -20 ~ 60 °C (-4 ~ 149 °F)
Relative Humidity 95% RH @40 °C, non-condensing
