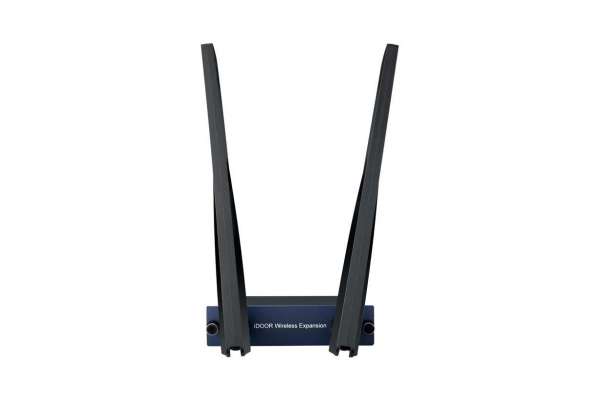

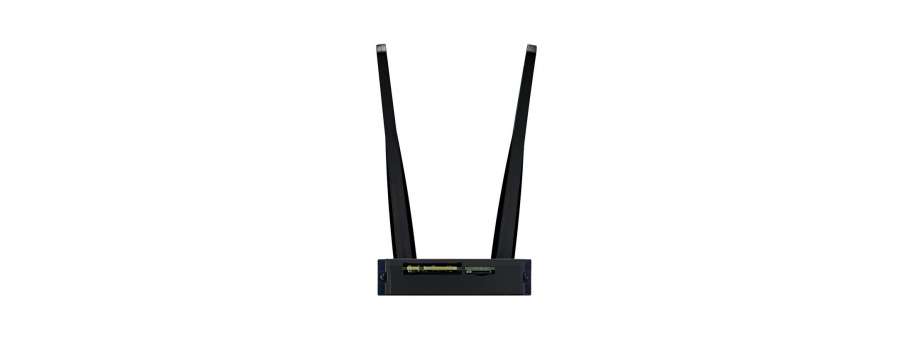

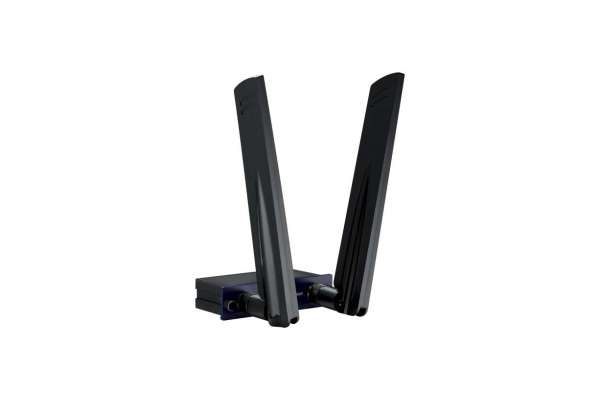

Modular iDoor Box Advantech with LTE-A/UMTS/ HSPA+, Antennas, and SIM Slot for EMEA/APAC PCM-24BX4G

Price and avalability

Partnumber Description Price VAT incl Avalability
PCM-24BX4G-AE idoor box,4G Cat.6,LTE-A/UMTS/HSPA+,EM06-E, EMEA  7 594,8

The PCM-24BX4G iDoor box is a combination wireless module designed for convenient installation, repair, and upgrades in management and machine-level automation applications. The plug-and-play design supports LTE M.2 3042 form factor connectors. Utilizing Advantech’s iFactory app, this multiple-band wireless solution supports Windows and Linux operating systems for flexible installation

  • Modular iDoor box design facilitates plug-and-play installation and upgrades
  • Built-in wireless LTE module supports M.2 3042 industry-standard form factor connectors
  • Compliant with relevant industry standards (CE RED, RCM, NCC, etc.) for safe and adaptable application

Additional information

Dimensions 81 x 19 x 50 mm (3.1 x .76 x 1.9 in)
Hardware Compatibility Compatible with PCM-24BXBK-AE pre-installed system
Wireless Module
  • Quectel EM06
  • LTE-A Cat 6 M.2 3042 module
Bands
  • LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(1)
  • LTE-TDD: B38/B40/B41
  • 2xCA: B1+B1/B5/B8/B20/B28;B3+B3/B5/B7/B8/
  • B20/B28;B7+B5/B7/B8/B20/B28; B20+B32(1);
  • B38+B38; B40+B40; B41+B41
  • WCDMA: B1/B3/B5/B8
Data Rate
  • LTE-FDD data rate (Mbps) : 300 (DL)/50 (UL)
  • LTE-TDD data rate (Mbps) : 226 (DL)/28 (UL)
  • DC-HSPA data rate (Mbps) : 42 (DL)/5.76 (UL)
  • WCDMA data rate (Kbps) : 384 (DL)/384 (UL)
GNSS N/A (Antenna change upon request)
Antenna 700 ~ 960 MHz, 1710 ~ 2700 MHz
OS Support Windows 7/8/8.1/10, Linux 2.6/3.x/4.1 ~ 4.14
Operating Temperature -20 ~ 60 °C (-4 ~ 149 °F)
Relative Humidity 95% RH @40 °C, non-condensing
