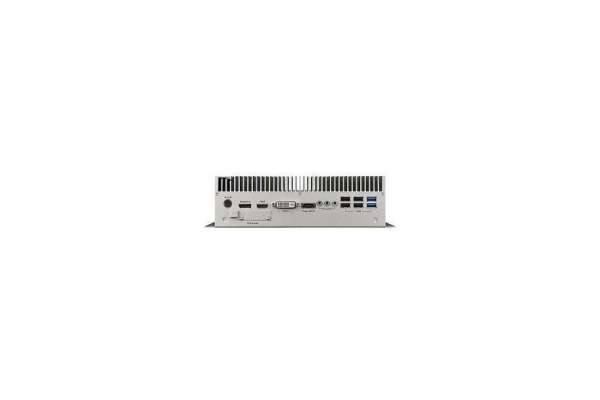

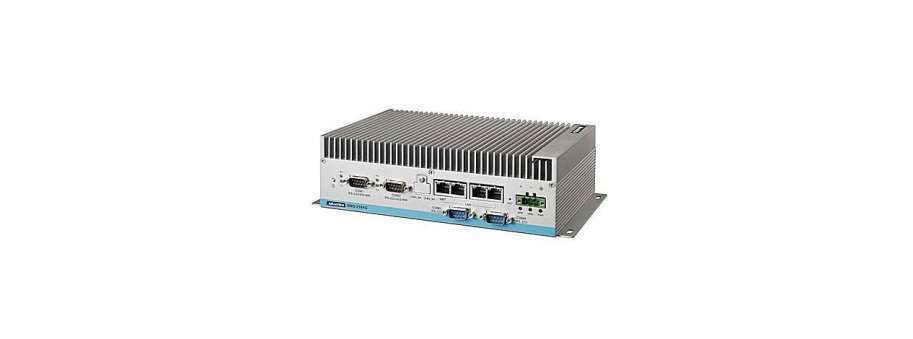

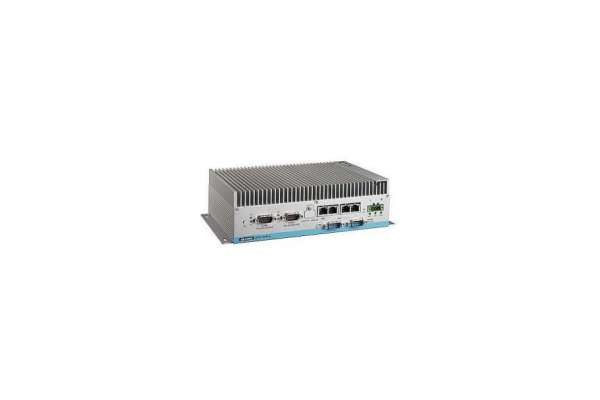

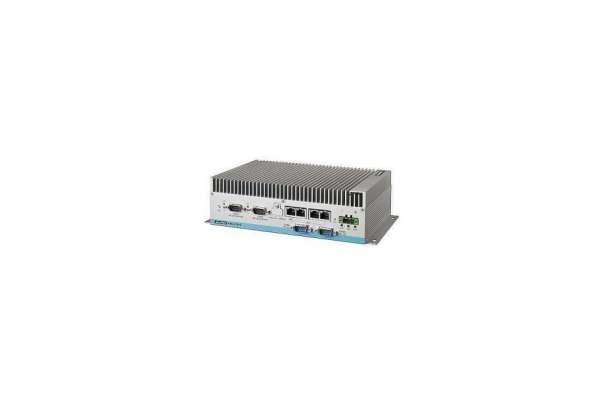

Embedded computer UNO-2184G

Embedded Computer Advantech UNO-2184G with Intel® Core™ i7-2655LE with 4GB RAM, 3 video and 4 network interfaces

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Need more performance? The Intel® Core ™ i7-2655LE Processor of the Advantech UNO-2184G Embedded Computer will provide it with a margin!
With the advent of the Advantech UNO-2184G industrial computer with the Intel® Core ™ i7-2655LE processor, you don’t have to worry that video processing or signal collection from sensors will be slow or even belated.
Work quickly and feel great outside a comfortable office on the street, near a traffic light or an advertising board, at a checkpoint or near a train track - all this can be done by UNO-2184G.
An electrically isolated case, passive cooling, random access memory soldered to the system board, and the absence of wires inside the computer make UNO-2184G a real scout in industrial automation.

A new version is now available - with a working temperature range of -40 ° C.

The new model receives the UNO-2184GX index and has been available since July 2014.


A real industrial computer - all the surprises are foreseen. In each element.

● The computer is capable of operating at low temperatures (temperature range from -10 ~ 60 ° C) and has a dustproof case with IP40 and isolation from the ground line. Advantech internal tests show up to 70 ° C
● Gigabit Ethernet ports support grouping for fault tolerance and automatic load balancing (teaming with fault tolerance, link aggregation, load balance).
● Serial ports and network interfaces are equipped with LED transmit / receive indications to monitor performance and facilitate diagnostics in the event of a fault finding.
● A diagnostic LED is integrated in the system board.
● 2x RS-232 and 2x RS-232/422/485 serial ports with automatic transmission control
● Computer power 9 to 36 V DC, vibration resistant power pad
● Support for embedded operating systems Windows® WES 2009 and WES 7


Embedded computer Advantech UNO-2184G. Even more unique features - interfaces for all occasions.
The Embedded Computer UNO-2184G can connect up to 3 monitors using the DVI, HDMI, and DisplayPort interfaces. External interfaces include eSATA, 6 USB ports, 4 RS232 serial ports, 4 Gigabit Ethernet ports and an audio interface. A slot for installing a CompactFlash memory card is available outside.
If these interfaces are not enough for solving automation problems, the computer has a slot for installing 2 expansion cards with PCI-104 interface and 2 expansion slots Mini PCIe, in which you can install wireless and cellular modules (WiFi, 3G).
Additional Information
The Advantech UNO-2184G industrial computer is a high-performance solution based on the 2nd generation of Intel® Core ™ i7-2655LE processors with a clock frequency of 2.2 GHz and passive cooling. The computer is capable of operating at low temperatures and has a dustproof case with IP40.
Up to 3 monitors can be connected to a UNO-2184G computer using the DVI, HDMI, and DisplayPort interfaces. External interfaces include eSATA, 6 USB ports and 4 RS232 serial ports.
The Advantech industrial computer has 4 Gigabit Ethernet ports teaming with fault tolerance, link aggregation, load balance.
Serial ports and network interfaces are equipped with LED indicators for receiving / transmitting to monitor performance and simplify diagnostics in case of troubleshooting.


The model has a slot for installing expansion cards with a PCI-104 interface and two Mini PCIe expansion slots, in which you can install wireless and cellular modules (WiFi, 3G).

● 2x RS-232 and 2x RS-232/422/485 serial ports with automatic transmission control
● Audio interface with line and high sensitivity microphone inputs and line output
● 2 slots for installing boards with PCI-104
● Externally accessible CompactFlash flash memory card slot
● Integrated LED on the system board
● IP40 case isolated from ground
● Computer power 9 to 36 V DC, vibration resistant power pad
● Operating temperature range from -10 ~ 60 ° C with a relative humidity of 5 ~ 85% RH (with airflow)
● -40 ° C for the updated version of UNO-2184GX
● Advantech internal tests show up to 70 ° C
● Support for embedded operating systems Windows® WES 2009 and WES 7

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-2184G-D44E Промышленный компактный компьютер i7-2655LE, 4G RAM w/4xLAN,4xCOM,2xMini-PCIe  Не доступно к заказу
UNO-2184G-D45E Промышленный компактный компьютер i7-2655LE, 8G RAM w/4xLAN,4xCOM,2xMini-PCIe  Не доступно к заказу
UNO-2184G-D64E Промышленный компактный компьютер i7-3555LE, 4G RAM w/ 4xLAN,4xCOM,2xMini-PCIe  Не доступно к заказу
