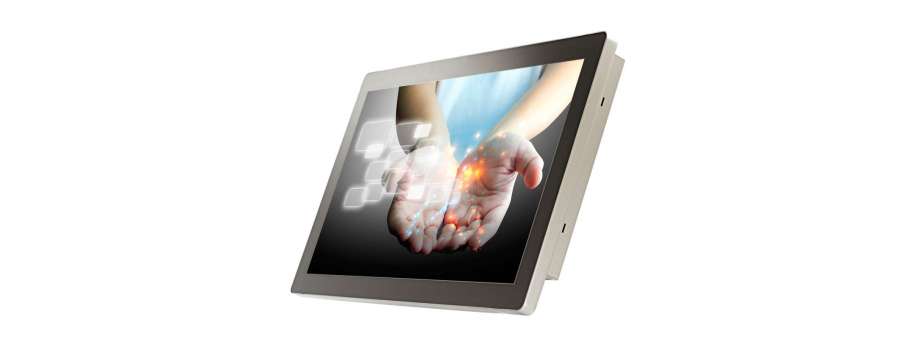

21.5" ultra-slim TFT-LCD display MTD-4021

21.5" 16:9 Full HD ultra-compact and slim TFT-LCD display MTD-4021 with IP65 front panel

System Components >> Industrial LCD monitors and kits

 Price and avalability

Manufacturer: Vecow

The ultra-compact and slim MTD-4021 is a 21.5" 16:9 Full HD(1920x1080) TFT-LCD display that combine high reliability multi-touch projected capacitive screen specifically designed for industrial applications. This elegant monitor provides precise image and reliable 24/7 non-stop operation. The IP65 front panel and 0°C to 50°C wide temperature helps to protect the display from harsh environments. It also supports VGA and DVI video inputs, Panel and VESA mount allowing system developer to easily incorporate MTD-4021 into a wide range of applications. It is an ideal partner with Industrial HMI Display System, Intelligent Factory Automation, various POS terminal, gaming, medical apparatus, central monitoring, machine vision applications.

  • 21.5” 16:9 Full HD (1920x1080) LCD Panel with LED Backlight
  • Projected Capacitive Multi-touch Screen
  • Touchscreen Works with Gloves
  • IP65 Front Panel Protection
  • Support Landscape and Portrait Modes
  • Mounting Methods : Panel/ VESA
  • Anti-scratch Surface : 7H Hardness
  • Sunlight Readable (Optional)

Price and avalability

Partnumber Description Price VAT incl Avalability
MTD-4021 Промисловий монітор Vecow 21.5”, 16:9 Full HD (1920 x 1080), Touch Screen 10-point P-CAP, VGA, DVI-D, Front Panel IP65 Waterproof, Power IN DC 12V, operating temp 0-50 C  40 105,7

Additional information

Panel
Panel Type a-Si TFT-LCD
Viewable Size Image 21.5" (16:9)
Max. Resolution 1920 x 1080 (Full HD)
Display Color 16.7M (RGB 8-bit)
Brightness (cd/m2) 250  (Optional, up to 1200)
Contrast Ratio 3000:1
Viewing Angle (H/V) 89/89/89/89  (L/R/U/D)
Touch Screen
Touch Screen Type 10-point Projected Capacitive
Transparency ≧ 85%
Surface Hardness 7H Surface Hardness
Control Interface USB Interface
Video
Input Connectors VGA, DVI-D
Input Signal Formats Analog : D-Sub (VGA) ; Digital :  DVI-D
OSD
Function OSD Keypad ; Multi-language
Power
Input DC Jack ; DC-in 12V
Power Adapter AC to DC 60W Power Adaptor
Mechanical
Dimensions (W x H x D) 537.6 x 329.06 x 44.1 mm  (21.2" x 13" x 1.7")
Gross Weight 6 kg (13.2 lb)
Front Panel Protection IP65 Compliant
Mounting

- VESA Mount (75 x 75mm, 100 x 100mm)

- Panel Mount

Environment
Operating Temperature 0°C to 50°C  (32°F to 122°F)
Storage Temperature -20°C to 60°C  (-4°F to 140°F)
Humidity 5% to 90% Humidity 40°C non-condensing
Shock

- IEC 60068-2-27
- 50G, half-sine, 20ms

Vibration

- IEC 60068-2-64
- Random Wave : 10Hz to 200Hz, 1.5 Grms, Duration : 30 mins each Axis

EMC CE, FCC
Packing List
VGA Cable     x 1
USB-A Cable (M) x 1
