Module Analog Output and Tachometer + Built-in anti-aliasing filter Advantech USB-5801
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| USB-5801-AE | Зовнішній модуль вводу-виводу Advantech 4-ch, 24-bit, 192 kS/s DSA USB3.0 module | 79 119,0 |

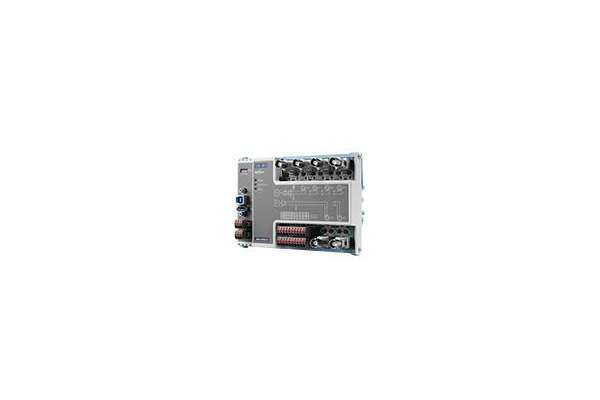

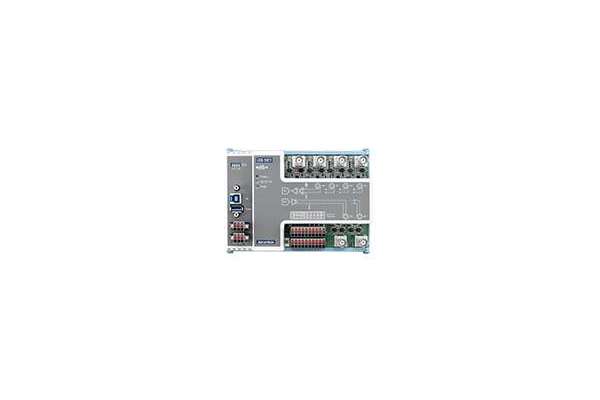

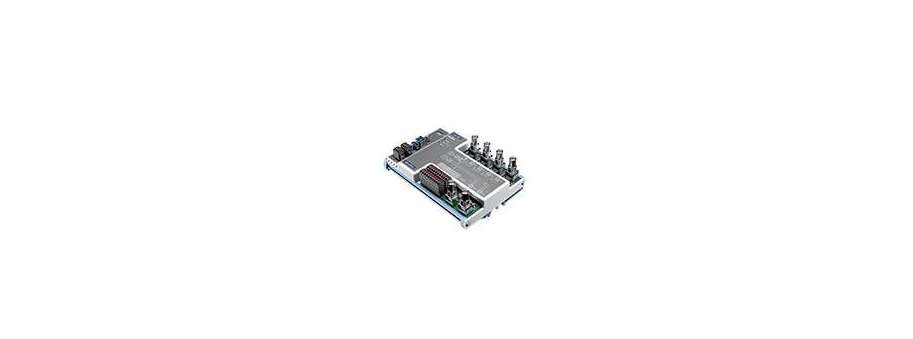

USB-5801 is a high accuracy dynamic signal acquisition USB 3.0 module specifically designed for vibration and acoustic measurements. It provides four simultaneously sampled, 24-bit, IEPE sensor inputs with up to 192 kS/s sample rate for high resolution measurements. It is also equipped with two 24-bit analog outputs with up to 192 kS/s update rate. In addition, it has two tachometer inputs whose data can be correlated to the sensor data. The built-in USB hub makes this module daisy chainable with other USB-5000 series products.
- USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
- 4 simultaneously sampled analog inputs, up to 192 kS/s
- 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
- Built-in anti-aliasing filter
- 2 mA integrated electronic piezoelectric (IEPE) excitation currents
- 2 analog outputs with update rate up to 192 kS/s
- 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
- 2 tachometer inputs for period or frequency measurement
- 4-ch isolated digital input and 4-ch isolated digital output
Additional information
| Part Number | USB-5801-AE |
Analog Input |
|
| Sampling Rates(S/s) | 1 ~ 192 kS/s |
| Resolution(Bits) | 24 |
| Channels | 4 |
| Input coupling | AC/DC |
| Type | Simultaneous Sample |
| Trigger Mode | Start, delay to start, stop, or delay to stop trigger |
| Bipolar Inputs (V) | ±1 V, ±2 V, ±5 V, ±10 V |
| IEPE Excitation | 2 mA |
Analog Output |
|
| Channels | 2 |
| Update Rate(S/s) | 1 ~ 192 kS/s |
| Resolution(Bits) | 24 |
| Output Ranges | ±1 V, ±10 V |
Isolated Digital I/O |
|
| Input Range | Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.) |
| Opto-isolator Response Time | 100us |
| Isolation Protection | 2,500 VDC |
| Output Ranges | 5 ~ 40 VDC |
| Input Channels | 4 |
| Digital Filter | 16 µs ~ 131 ms |
| Output Channels | 4 |
| Load current | 350mA/ch (sink) |
General |
|
| Bus | USB 3.0 |
| Dimensions | 168 mm x 120 mm x 40 mm |
| Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Power supply | External 10 ~ 30 V DC or USB bus power |
Timer/Counter |
|
| Channels | 2 (Tachometer Input) |
| Input Range | Logic 0: 3 V max.; Logic 1: 10 V min. (30 VDC max.) |
| Max. Input Frequency | 5 kHz |
| Isolation protection | 2,500 V DC |
| Digital Filter | 16 µs ~ 131 ms |
