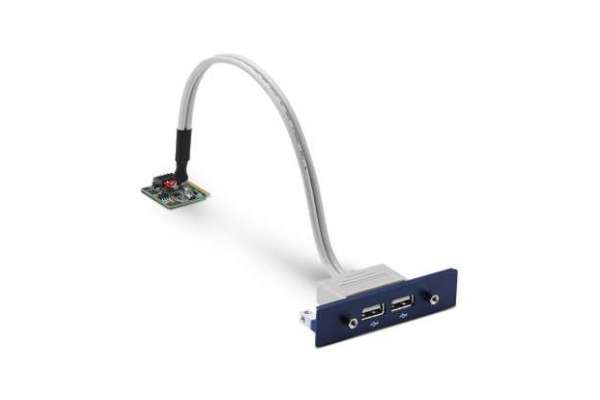

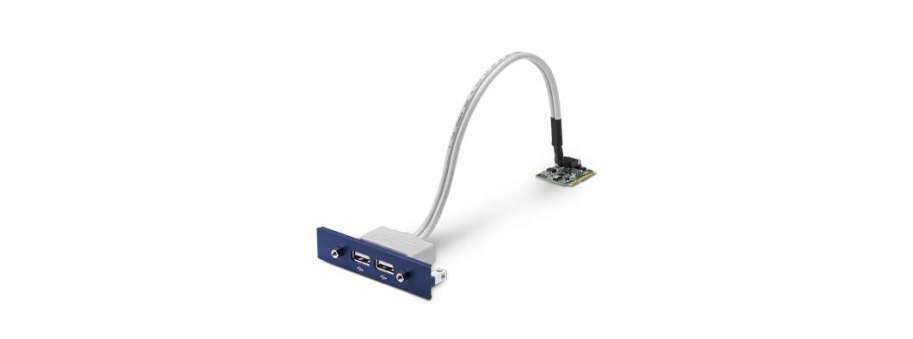

USB Port iDoor Module Advantech MOS-2110Z-1201E
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MOS-2110Z-1201E | Мережевий пристрій/Перетворювач інтерфейсів USB module, 2-Ch, PCIe I/F | 2 212,6 |
- 2-Ch USB 2.0 Hi-Speed ports
- Half size MiniPCIe type compliant with PCI Express TM 2.0
- Compliant with xHCI specification
- Support USB 2.0 and USB 1.1 devices
Additional information
| Technology | USB 2.0 port |
| Host site Interface | MiniPCIe thru PCIe interface |
| USB Connector | 2.0 mm, 2x5-pins, male pin header |
| Support Voltage and Current | + 5.0 V, 500 mA* |
| OS Supported | Windows XP/ Vista/ 7/ 8/8.1 (32 and 64-bits) |
| Temperature Ranges |
|
| Dimensions (L x W x H) | 26.65 x 30 x 15 mm |
