| Part Number |

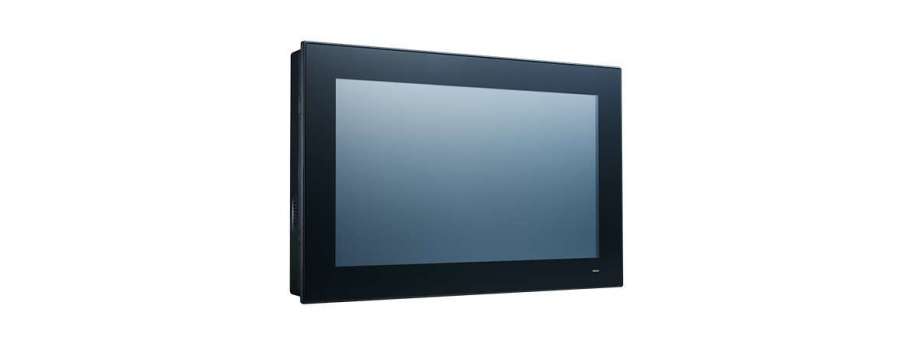

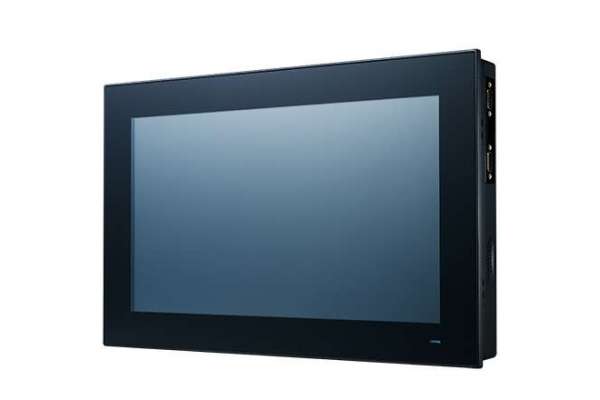

PPC-3151W-P75A |
Processor System
|
|
| CPU |
Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional) |
| Frequency |
2.6 GHz, up to 3.5 GHz with turbo |
| L3 Cache |
3M |
| Memory |
1 x SODIMM, DDR4 1866/2133, max. 16 GB (1.2V) |
| Storage |
1 x 2.5" SATA bay;1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
| Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) |

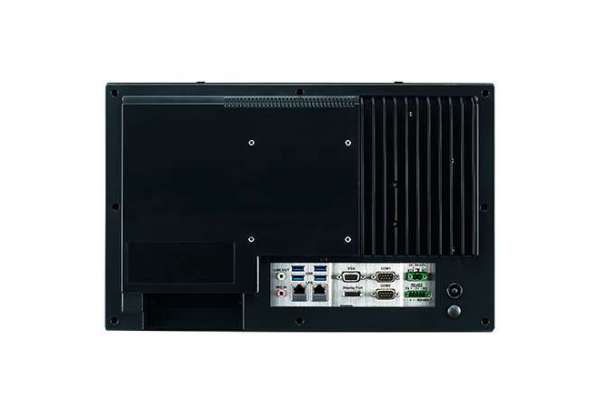

| I/O Ports |
2 x RS-232, 1 x RS-422/485 with 1K VDC isolation;Either 2 x RS-232 or 1 x RS-232 + 1 x GPIO(TTL, 8 pin programmable) on right side (optional module);4 x USB 3.0;1 x Line-out, 1 x Mic-in;1 x DB15 VGA;1 x Display Port (1.2);1 x TPM 2.0 internal(optional) |
| Watchdog Timer |
255 timer levels; setup by software |
| Speaker |
2 x 1W speakers |
System Hardware
|
|
| Expansion Slots |
1 x Mini PCIe 1 x PCIe x 4 (default); 1 x PCI (in the accessory box) |
Physical Characteristics
|
|
| Dimensions |
419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in) |
| Weight |
5.4 kg (11.90 lb) |
OS Support
|
|
| OS Support |
Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux |
Power Supply
|
|
| Input Voltage |
9-32 VDC |
| Power Consumption |
i5-7300U 65W( Burn-in test 8.1 in Windows 10 64bit |
LCD Display
|
|
| Display Size |
15.6" |
| Max. Resolution |
1920 x 1080 |
| Viewing Angle (H/V°) |
85 (left), 85 (right), 85 (up), 85 (down) |
| Contrast Ratio |
800:1 |
Display
|
|
| Luminance (cd/m2) |
450 |
| Backlight Life (hrs) |
50, 000 hrs (Min.) |
Touchscreen
|
|
| Touch Type |
Projected capacitive |
| Light Transmission |
88%±2% |
| Controller |
USB interface |
Environment
|
|
| Operating Temperature |
0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
| Temperature (Storage) |
-20 ~ 60° C (-4 ~ 140° F) |
| Relative Humidity |
10 ~ 95% @ 40° C (non-condensing) |
| Shock Protection |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
| Vibration Protection |
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| EMC |
CE, FCC Class B, BSMI |
| Safety |
CE, UL,CCC, BSMI |
| Front Panel Protection |
IP65 Compliant |
