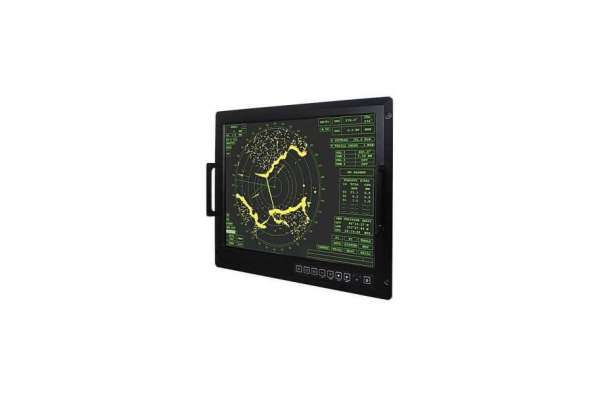

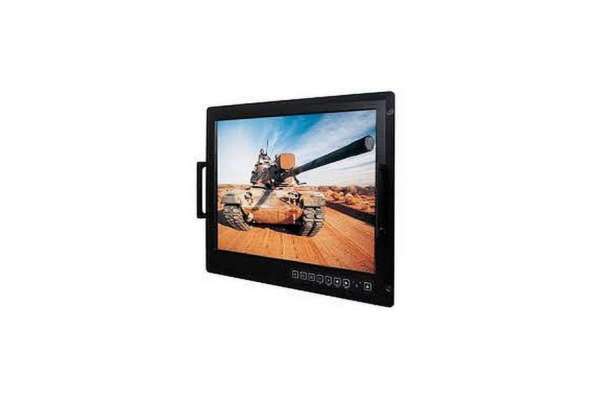

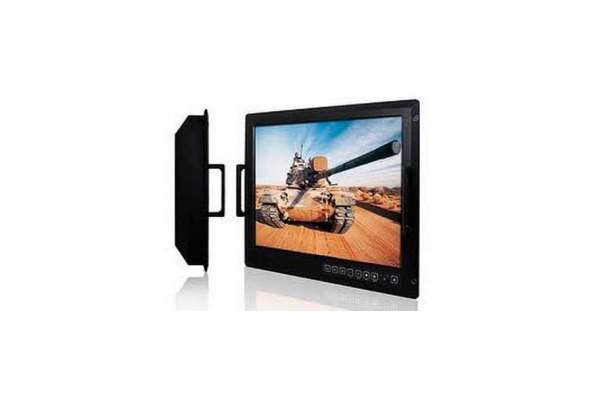

| Display Specification |
| Model Name |
R20L100-RKA2ML |
| Panel_Size |
20.1" |
| Active Display Area(mm) |
408mm (H) x 306mm(V) |
| Pixel Pitch(mm) |
0.255(H)x0.255(V) |
| Panel_Display Resolution |
1600x1200 |
| Panel_Contrast Ratio |
800:1(typ.) |
| Panel_Brightness |
300(typ.) |
| Display Color |
16.7 Million(8 bits/colors) |
| Panel_Viewing Angle |
-89~89 (H); -89~89 (V) |
| Synchronization Range_(H) / (V) |
31.5~80.0KHz / 60~75Hz |
| Recommended Resolution |
1600x1200@60Hz |
| Glass |
Standard Anti-Reflective Glass |
| Touch(Optional) |
5-wire Resistive Touch with EMI Mesh Filter |
| ITO Glass (Optional) |
Transmittance 88% |
| |
| I/O Connectors |
| Plug & Play |
VESA DDC 1/2B |

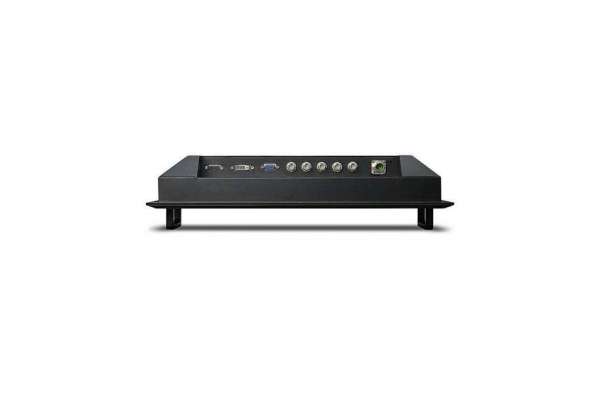

| Back Panel I/O Port |
1 x AC Power input (Military grade)
5 x BNCs (R,G,B,H,V)
1 x VGA
1 x DVI-D
1 x RS-232 Touch Interface (Optional)
|
| |
| In fornt Control |
| Control Button |
Menu / Auto-adjust / Brightness Up and Down / LED Adjustment / Power |
| Led indicator |
Power On / Off Sleep |
| |
| Mechanical and Environment |
| Dimensions (W x L x H) |
482.6 mm x 399.4 mm x 85 mm |
| Net Weight (kg) (with touch) |
9.4 |
| Power Input |
AC 110~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Power Consumption |
90W typical, normal operation |
| Power Management |
VESA DPMS Compliant |
| Panel_Operating Temp |
-20 deg. C to 60 deg. C |
| Operation Humidity |
95%RH ±3% |
| Shock* |
MIL-STD-810F/G Method 516.6 / Procedure I |
| Vibration* |
MIL-STD-810F Method 514.6 / Procedure I |
| Certifications |
CE, FCC ClassB MIL-STD 810F/G and MIL-STD 461E/F Designed & Tested |
| Humidity* |
MIL-STD-810F Method 507.5 |
| Transit Drop* |
MIL-STD-810F Method 516.6 / Procedure IV |
| High Temperature* |
Storage: MIL-STD-810F Method 501.5 / Procedure I
Opeartion: MIL-STD-810F Method 501.5 / Procedure II
|
| Low Temperature* |
Storage: MIL-STD-810F Method 502.5 / Procedure I
Opeartion: MIL-STD-810F Method 502.5 / Procedure II
|
