8AI/5DI/4DO Intelligent I/O Gateway ADAM-6717

Compact Intelligent Gateway with I/O ADAM-6717/ ADAM-6750 Advantech

Signal input/output >> Remote input/output

Manufacturer: Advantech Co., Ltd.

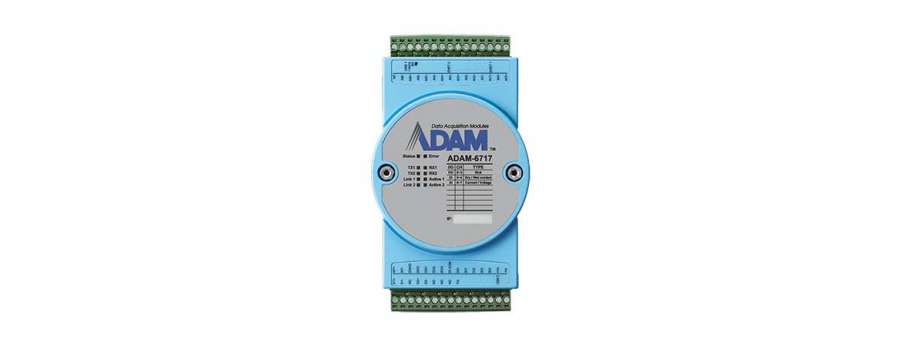

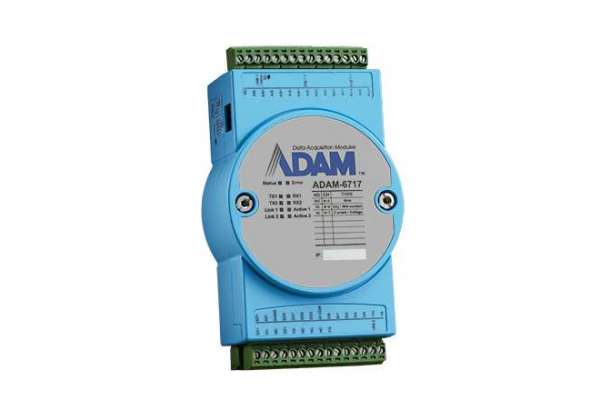

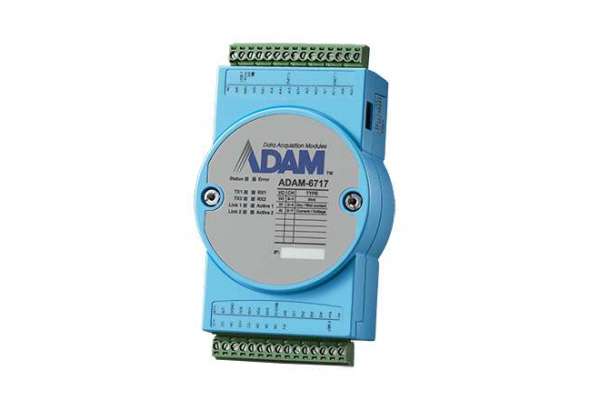

ADAM-6700 is the edge compact intelligent gateway offers an integrated solution in the form of a Linux-based gateway capable of performing multiple tasks at the edge. Unlike many of its competitors, the ADAM-6700 is equipped with a range of I/O for comprehensive data acquisition functionality

  • Linux Open Platform
  • 8ch analog input(current or voltage)/5ch digital input/4ch digital output
  • Program by linux C API, Node-RED (graphic programming environment)
  • Cloud/Database access ,edge data analysis and logic control, data visulization by dashboard
  • Interface:RS-485x2,Ethernet portx2 ,USBx2

Additional information

Specifications ADAM-6717 ADAM-6750

General


MCU Cortex-A8 32-Bit 1GHz Cortex-A8 32-Bit 1GHz
Memory DDR3L 512MB DDR3L 512MB
Storage

NAND flash 512MB for system storage

microSD Slot (Optional)

NAND flash 512MB for system storage

microSD Slot (Optional)

OS RT Linux V3.12 RT Linux V3.12
Programming Node-RED Linux C Node-RED Linux C
Power input 10 ~ 30 VDC 10 ~ 30 VDC
Operation temperature -40 ~ 70°C -40 ~ 70°C
Storage temperature -40 ~ 85°C -40 ~ 85°C
Isolation 2500 VDC 2500 VDC

Communication


LAN port 2 x RJ-45 10/100 Mbps (2MAC ID) 2 x RJ-45 10/100 Mbps (2MAC ID)
Serial port 2 x RS-485 2 x RS-485
USB port 1 x Type-A USB, 1 x Micro USB (Client) 1 x Type-A USB, 1 x Micro USB

Analog Input


Channels 8 (differential) -
Sampling Rate 10 or 100 samples/ second (total) -
Resolution 16 bits -
Input Range

0 ~ 150mV, 0 ~ 500mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V,

±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA,

0 ~ 20 mA, 4 ~ 20mA

-

Digital Output


Channels 4 12 (support 3KHz pulse output)
Output type Sink 30 VDC, 0.1A max. per channel Sink 30 VDC, 0.1A max. per channe

Digital Input


Channels 5

12

support 3KHz counter input

Dry contact

logic 0: close to ground

logic 1: Open

logic 0 close to ground

logic 1 Open

Wet contact

logic 0: 0 ~ 3 VDC

logic 1: 10 ~ 30 VDC

logic 0: 0 ~ 3 VDC

logic 1: 10 ~ 30 VDC
