Basic parameters
|
|
Sensitivity |
500 mv/g(±10%) |
Range |
±10 gpeak |
Linearity |
≤1% |
Frequency Response(±10%) |
0.2~5000Hz |
Frequency Response(±3dB) |
0.1~10000Hz |
Resonance Frequency |
About 16KHz |
Transverse Sensitivity |
≤5% |
Electrical character
|
|
Bias Voltage |
10.5-13.5VDCtypical:12VDC |
Constant Current |
2-20 m Atypical:4mA |
Excitation Voltage |
18-30 VD Ctypical:24VDC |
Settling time |
≤3S |
Electrical noise |
- 10Hz - 14μg/√Hz
- 100Hz - 5μg/√Hz
- 1000Hz - 3μg/√Hz
|
Output Impedance |
<100Ω |
Grounding |
Housingisolation, internalshielding |
Structural Features
|
|
Maximal Shock Level |
5000g |
Mount Thread |
M6×1 |
Weight |
102g |

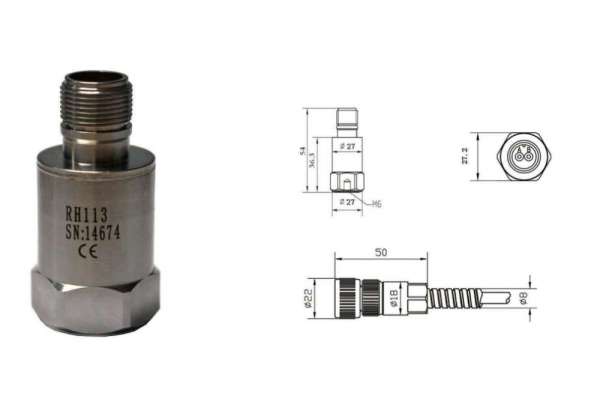

Dimension |
Diameter × Height:23 × 51.4(mm) |
Seal Method |
Laser Welding |
Protection Grade |
IP68 |
Casting Material |
316L Stainless Steel |

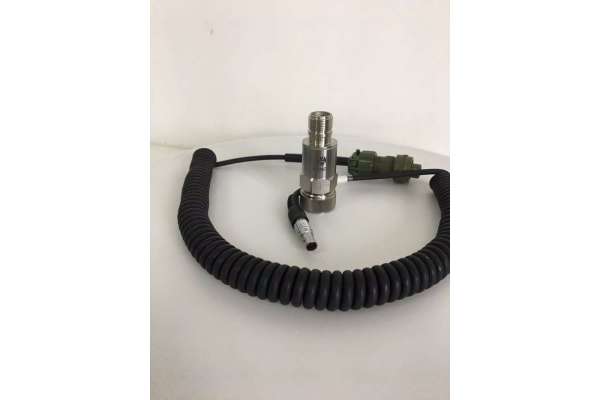

Output |
Topexit, 2pins Mil-C-5015 |
Temperature Range |
-55~+125°C |
Mount Torque |
About2.7~6.8N.m (M6thread) |
Certificate |
CE |
Explosionproof (Notstandard,optional)
|
|
Identification |
Ex ia IIC T4 Ga |
