Accelerometer CT11000L

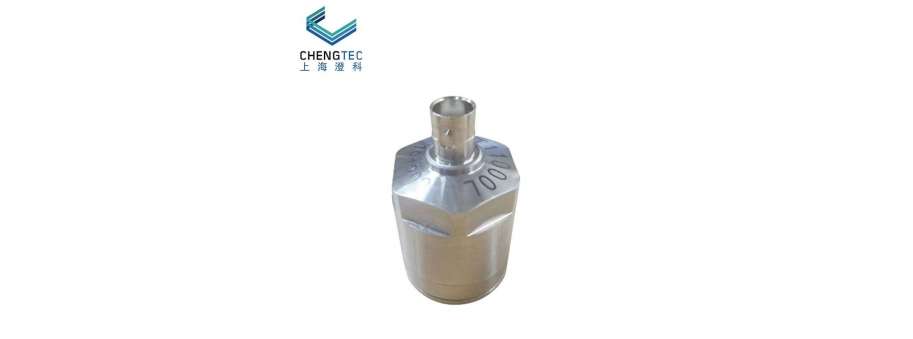

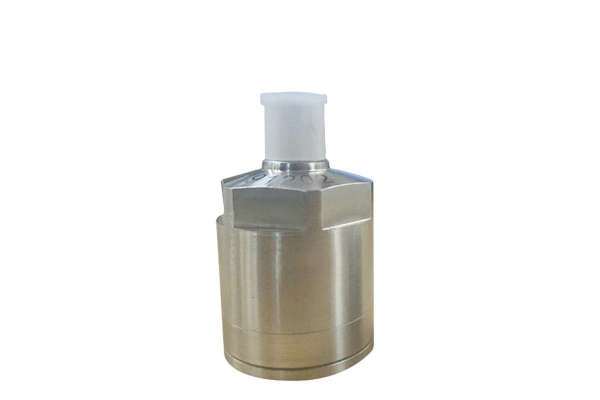

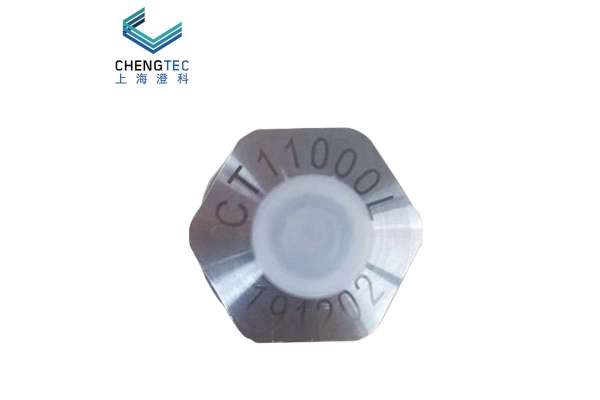

Piezoelectric Low Frequency Accelerometer Chengtec CT11000L

Signal input/output >> Sensors and Senders

 Price and avalability

Manufacturer: Chengtec

CT series ICP/IEPE acceleration sensor is the charge amplifier circuit integrated inside the piezoelectric sensor, using the two-wire system form (the wire shield layer as the ground, the core wire is constant current power input and signal output sharing).

The reliability of the series has been improved by strengthening test and aging treatment.

This series of sensors is compatible with constant current adapters. the product has good anti-interference, easy to use, high signal to noise ratio, good cost performance. The installation and use of the ICP/IEPE sensor is the same as that of the traditional charge sensor, and attention should be paid to the range value (the maximum output voltage of the sensor is ±5V).

Price and avalability

Partnumber Description Price VAT incl Avalability
CT11000L Перетворювач п'єзолектричний низкочастотний 0.1-500Hz, підвищенної чутливості 10В/g, IEPE  34 505,6

Additional information

Specification
Model Number
CT11000L
Usage VIBRATION SENSOR
Theory Piezoelectric
Output Analog SENSOR
Brand accelerometer
Amplifier Type Analog Output
Voltage - Supply 15-28VDC
Output Type -5~+5V
Current - Supply 2-10mA
Operating temperature -20-80 ℃
Mounting Type BNC
Package / Case metalic
Frequency 0.05-500
Size / Dimension 55*35mm
Measuring Range -0.5g~+0.5g
Acceleration Range -0.5g~+0.5g
Sensitivity (mV/g) 10000
Product name vibration sensor
Type Low Frequency
Technology Piezoelectric
