Module ADAM-3017

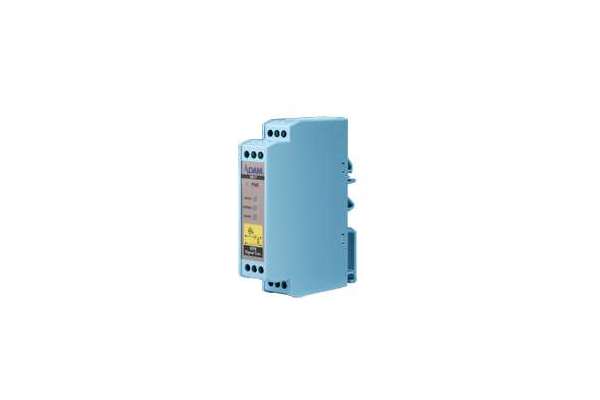

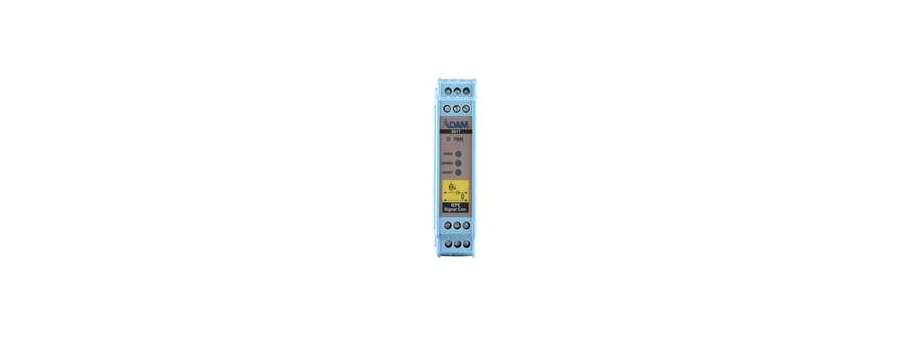

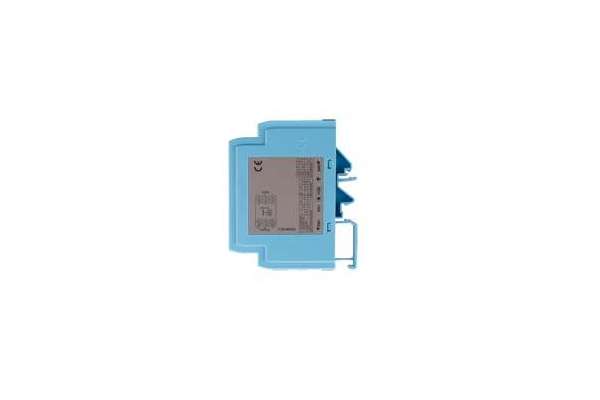

External Powered IEPE Signal Conditioner ADAM-3017

Signal input/output >> Normalizing converters

 Price and avalability

Manufacturer: Advantech Co., Ltd.

External Powered IEPE Signal Conditioner

  • IEPE current support: 4, 6, 10 mA
  • External powered operation eliminates line noise
  • LED indicator for sensor open, short and normal

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-3017-AE Модуль Advantech Adam-3017 для формування сигналів IEPE із зовнішнім живленням  6 150,8 Доступно

Additional information

Specifications ADAM-3017

Integrated Electronic Piezoelectric (IEPE)Excitation


Channels 1

Upper Cut-Off Frequency (for all couple settings)

x1, x10 gain (-5%) 100 kHz

x100 gain (-1%) 50 kHz

Lower Cut-Off Frequency (-3dB, 1 MΩ load, for all gain settings)


DC Couple DC
AC Couple (1 μF) 0.58 Hz
AC Couple (47 μF) 0.012 Hz

Accuracy

< ±2% for all gain settings
Compliance > 24 V
Current 0, 4, 6, or 10 mA ± 5%

Discharge Time Constant (1 MΩ load, for all gain settings)

DC Couple 0 second

AC Couple (1 μF) > 0.3 seconds

AC Couple (47 μF) > 13 seconds

DC Offset < 30 mV

Isolation Protection


Input/Output to Power 1,000 VDC

General


I/O Connectors Screw terminal (Including a female BNC to terminal block adaptor)
Dimensions (W x H x D) 23.2 x 101 x 93.5 mm (0.91" x 3.97" x 3.68")
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH, non-condensing
