Isolated RTD Input Module ADAM-3013

Isolated RTD Input Module ADAM-3013 Advantech with 1000 VDC 3-way isolation between input, output and power.

Signal input/output >> Normalizing converters

 Price and avalability

Manufacturer: Advantech Co., Ltd.

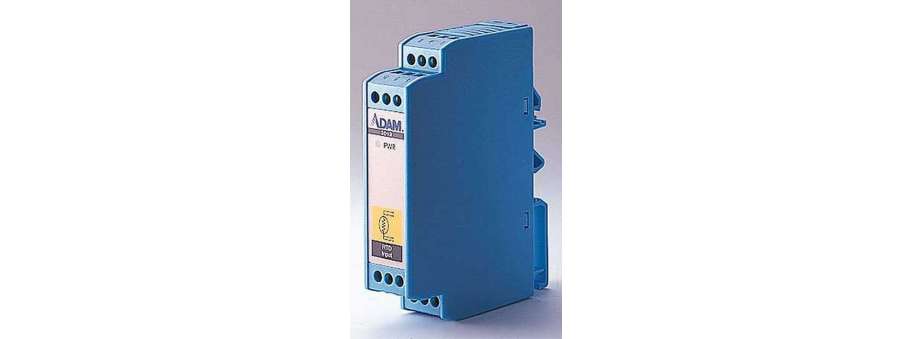

ADAM-3013 is a DIN-rail mounted, RTD input signal conditioning module with 1000 VDC 3-way isolation between input, output and power. The switch configurable input and output offers flexible, wide ranging capability for Platinum and Nichel RTDs. The input of the ADAM-3013 RTD input can be configured for any one of up to fourteen defined temperature ranges and two OEM-defined ranges. The output is linearized to the RTD temperature input and can be set for either 0~5 V, 0~10 V or 0~20 mA.

  • 1000 VDC 3-way optical isolation
  • Built-in microprocessor
  • Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
  • Switch configurable Pt and Ni RTD input ranges

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-3013-AE Ізольований модуль Advantech ADAM-3013, нормалізатор сигналів резистивних датчиків температури Pt або Ni.  6 551,7 Доступно
