Rugged Workstation DX-1100

Compact and Modular Rugged Workstation Cincoze DX-1100 9/8th Generation Intel® Xeon® and Core™ Processors Extreme Performance

Industrial Computer >> High-performance computer systems

 Price and avalability

Manufacturer: Cincoze

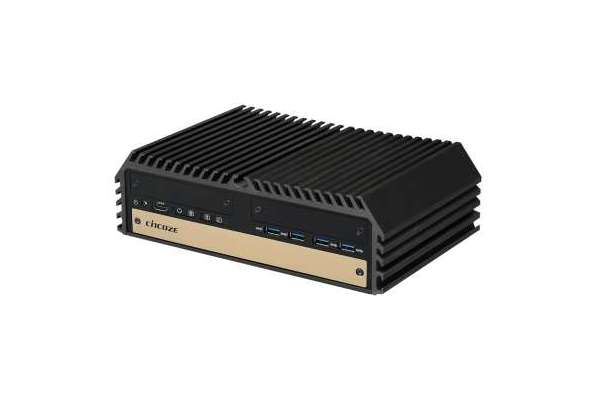

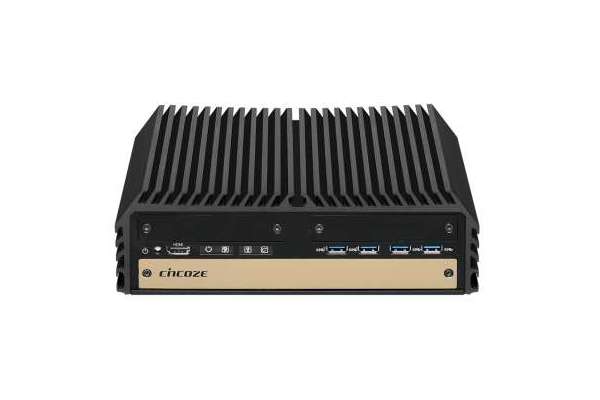

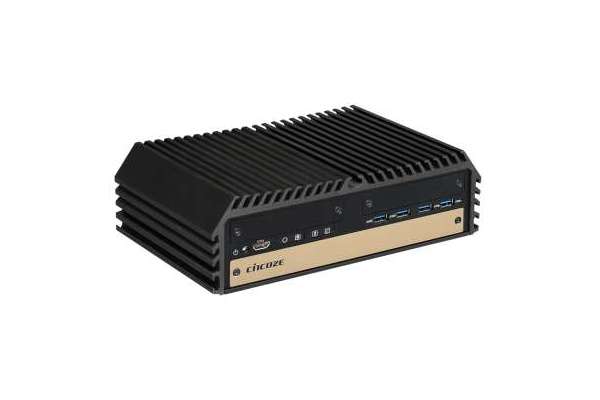

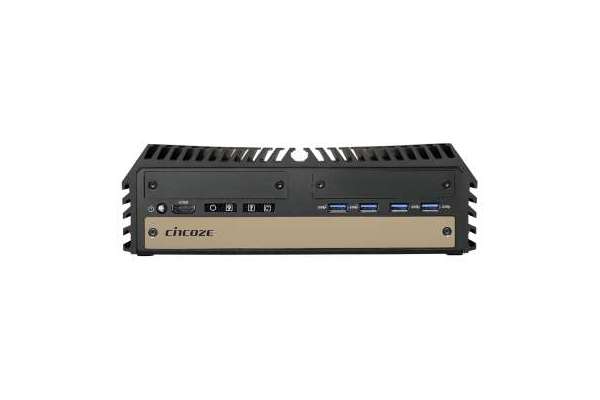

The Cincoze DX-1100 is a rugged workstation specifically designed to satisfy demands for the high-performance computing platform. Based on LGA 1151 socket and Intel® C246 chipset, the system supports 9/8th generation Intel Xeon® and Core™ processors (formerly codenamed Coffee Lake S) with up to 8 cores and 64GB memory capacity.
Despite its remarkably compact size, the DX-1100 still delivers the maximum flexibility of modular I/O expansions and provides dual hot-swap 2.5" HDD/SSD tray with RAID function. Thanks to Cincoze’ exclusive CFM (Control Function Module) technologies, the DX-1100 can be configured instantly with Power over Ethernet and power ignition sensing functions to be applied in many industrial applications, such as machine vision, in-vehicle transportation, and mobile surveillance.
Featuring rugged construction, fanless/cable-less/jumper-less design, wide operating temperature (-40 to +70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), the DX-1100 is maintenance-free and ideal to be deployed in harsh environments.]

  • Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core Processor
  • Triple Independent Display with 4K/2K UHD Resolution (HDMI / DP / DVI-I)
  • 2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
  • 2x USB 3.1 (10Gb/s) for Ultimate Data-transfer Speed
  • 1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket

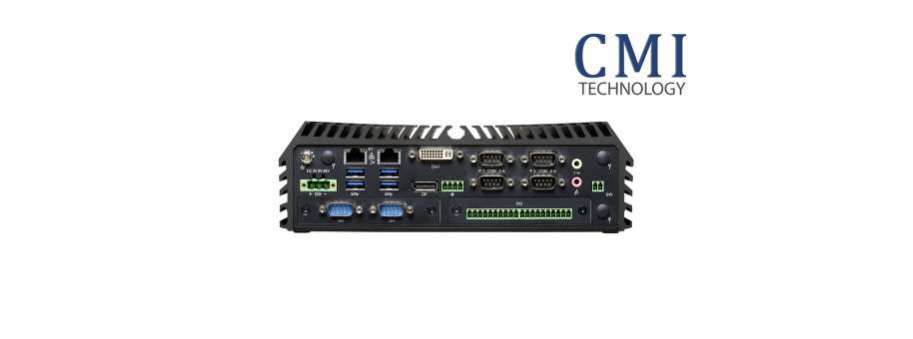

  • Supports CMI Interface for I/O Expandability
  • Supports PoE+ and Power Ignition Sensing (with optional CFM modules)
  • Wide Operating Temperature -40°C to 70°C
  • E-Mark (E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2

Price and avalability

Partnumber Description Price VAT incl Avalability
DX-1100-R10 Високопродуктивний компактний комп'ютер Cincoze DX-1100-R10, 9/8th Generation Intel Xeon and Core Processors, Extreme Performance, Compact and Modular Rugged Workstation  41 229,5 Доступно

Additional information

System

DX-1100

Processor

 • 9th Generation Intel® Coffee Lake-R S Series CPU:
 - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
 - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
 - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
 - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
 - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
 - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
 - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel® Coffee Lake S Series CPU:
 - Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz - 12M Cache, TDP 80W
 - Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz - 8M Cache, TDP 71W
 - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
 - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
 - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
 - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
 - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
 - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
 - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
 - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
 - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
 - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
Chipset Intel C246
Memory • 2x DDR4-2666/2400 MHz SO-DIMM Sockets
• Support up to 64 GB (Un-buffered and Non-ECC type)
* i3/Pentium/Celeron: DDR4 2400 MHz
Graphics • Integrated Intel® UHD Graphics
  (Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610)
• Supports Triple Independent Display (DVI-I/DisplayPort/HDMI)
Audio Realtek® ALC888, High Definition Audio
BIOS AMI 32 MB BIOS

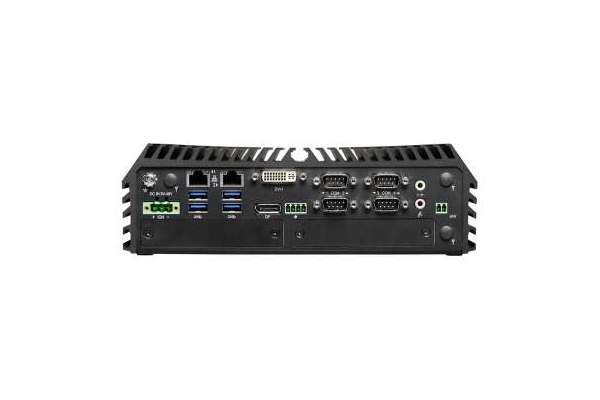

I/O Interface


DVI 1x DVI-I Connector
(VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz)
DP 1x DisplayPort Connector (3840 x 2160 @30Hz)
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
LAN 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45
   - GbE1: Intel® I219-LM
   - GbE2: Intel® I210-IT
Optional Module
4x 10/100/1000 Mbps, RJ45 Port
4x 10/100/1000 Mbps, M12 Port
PoE+ Optional Module
4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)
4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)
Serial Port 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Optional Module
2x RS-232/422/485, DB9 Connector
USB 2x USB 3.1 (Type-A)
6x USB 3.0 (Type-A)
Optical Isolated DIO Optional Module
16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Rest Button 1x Rest Button
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block

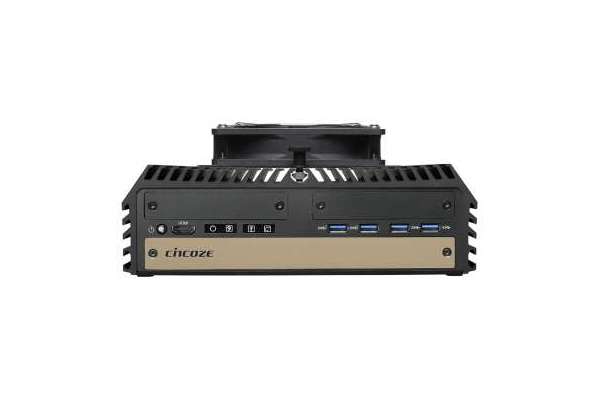

External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)

Storage


SSD/HDD 2x 2.5" Front Accessable SATA HDD/SSD Bay (SATA 3.0)
mSATA 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
RAID Supports S/W RAID 0, 1, 5 & 10

Expansion


PCI/ PCIe -
CFM (Control Function Module) Interface 1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface 3x CMI Interface for CMI Modules
Mini PCI Express 3x Full-size Mini-PCIe Sockets
M.2 Socket 1x M.2 2230 Socket (Key E)
SIM Socket 1x SIM Socket
Antenna Holes 3x Antenna Holes

Other


Instant Reboot Support 0.2sec
Power Ignition Sensing Optional Module
CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super Cap SuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power Requirement


Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter
AC/DC 24V/5A, 120W
AC/DC 24V/9.2A, 220W

Physical


Dimension (WxDxH) 242 x 174 x 77 mm
Weight Information 3.6 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / DIN Rail / Side
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Cable-less Design Yes

Protection


Reverse Power Input Protection Yes
Over Voltage Protection Protection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
ESD Protection +/-8kV (air), +/-4kV (contact)
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)

Operating System


Windows Windows® 10
Linux Support by project

Environment


Operating Temperature 35W TDP Processor: -40°C to 70°C
54~65W TDP Processor: -40°C to 45°C
71~80W TDP Processor: -40°C to 40°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 40°C (Non-condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
* w/ SSD, according to IEC60068-2-27
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
* w/ SSD, according to IEC60068-2-64
EMC CE, FCC Class A, EN50121-3-2, E-Mark (E13 No.10R-0515210)
Safety LVD EN62368-1
MTBF 407,391 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
