ADAM-6000 digital I/O modules

Ethernet digital I/O modules Advantech ADAM-6050, ADAM-6051and ADAM-6052 with MQTT, SNMP, MODBUS/TCP, P2P and GCL support

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Advantech's Ethernet I/O Modules, ADAM-6000 series, accomplishes this integration easily through the latest internet technology, so that it can remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by Peer-to-Peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation wiith Advantech's P2P and GCL technology. With the easy-to-use and intuitive graphic utility, system configurations can be done in an extremely short time. ADAM-6000 series models include Analog Input/Output Modules and Digital Input/Output Modules. ADAM-6000-D version and ADAM-6200-AE have supported the MQTT function as a new feature.

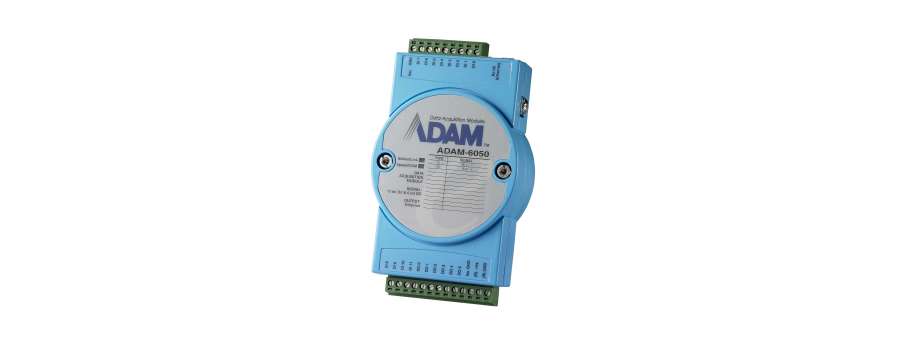

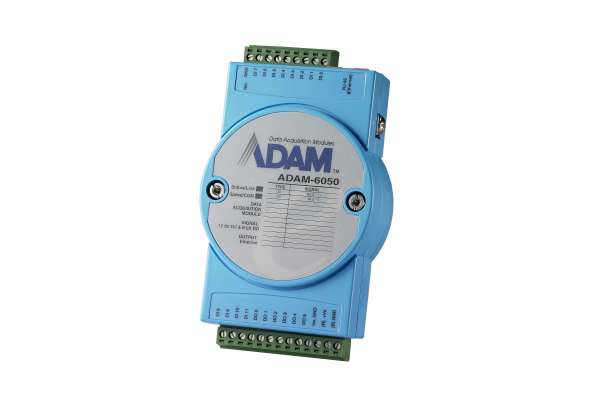

ADAM-6050 18-ch Isolated Digital I/O Modbus TCP Module

  • 12-ch DI, 6-ch DO, Ethernet-based smart I/O
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Active I/O message by data stream or event trigger function
  • Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
  • Web language support: XML, HTML 5, Java Script

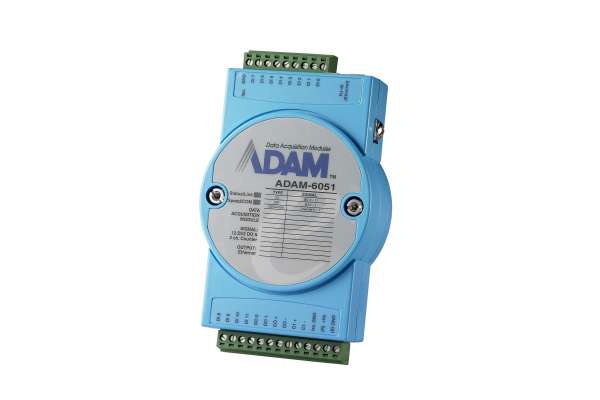

ADAM-6051 14-ch Isolated Digital I/O Modbus TCP Module with 2-ch Counter

  • 12-ch DI, 2-ch DO, 2-ch counter, Ethernet-based smart I/O
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Active I/O message by data stream or event trigger function
  • Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
  • Web language support: XML, HTML 5, Java Script

ADAM-6052 16-ch Source-type Isolated Digital I/O Modbus TCP Module

  • 8-ch DI, 8-ch DO, Ethernet-based smart I/O
  • Remote monitoring and control with mobile devices
  • Group configuration capability for multiple module setup
  • Flexible user-defined Modbus address
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Active I/O message by data stream or event trigger function
  • Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT
  • Web language support: XML, HTML 5, Java Script

Price and avalability

Partnumber Description Price VAT incl Avalability
ADAM-6050-CE Модуль вводу-виводу Advantech ADAM-6000 Ethernet 18-Ch Isolated DI/O Module  5 752,3
ADAM-6050-D Модуль цифрового вводу/виводу Advantech ADAM-6050, 12 DI, 6DO, Ethernet 18-Ch Isolated DI/O Module, IoT Modbus/SNMP/MQTT  5 437,2 Доступно
ADAM-6051-BE Модуль 16-Ch Isolated DI/O w/Counter Module  6 808,4
ADAM-6051-CE Модуль ввода-вывода 16-Ch Isolated DI/O w/Counter Module  5 752,3
ADAM-6051-D Модуль вводу-виводу Advantech ADAM-6051, 12 DI, 2 Counter, 2 DO, Ethernet 16-Ch Isolated DI/O w/Counter Module, IoT Modbus/SNMP/MQT  5 437,2 Доступно
ADAM-6052-BE Модуль 16-Ch Source Type DI/O Module  7 380,0
ADAM-6052-CE Модуль ввода-вывода 16-Ch Source Type DI/O Module  6 233,6
ADAM-6052-D Модуль цифрового вводу-виводу Advantech ADAM-6052, 8 DI, 8 DO, Ethernet 16-Ch Source Type DI/O Module, IoT Modbus/SNMP/MQTT  5 889,5 Доступно
