Computer ARK-1122

Fanless Industrial Compact Computer Advantech ARK-1122 with Intel® Atom™ N2600 and Power Supply

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The Advantech ARK-1122C and ARK-1122H compact industrial computers are powered by the 1.6GHz Intel® Atom ™ N2600 processor and are built in a robust embedded design developed by Advantech.
The compact computers ARK-1122 have passive cooling without fans and a robust metal case with IP40 protection. ARK-1122 industrial computers can be mounted on a surface, on a DIN rail, or on a VESA mount. Computers Advantech ARK-1122 are equipped with a power supply with a connector with a latch for increased reliability.
The operating temperature range of computers ARK-1122 is -20 ~ + 60 ° C when using special RAM modules and flash drives with an extended temperature range.

Advantech ARK-1122 Embedded Industrial Computers support a variety of I / O interfaces:

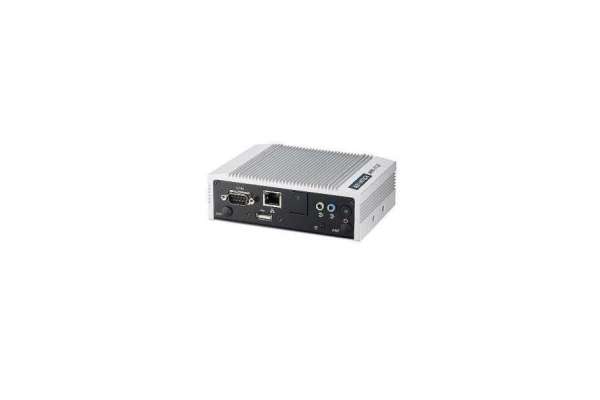

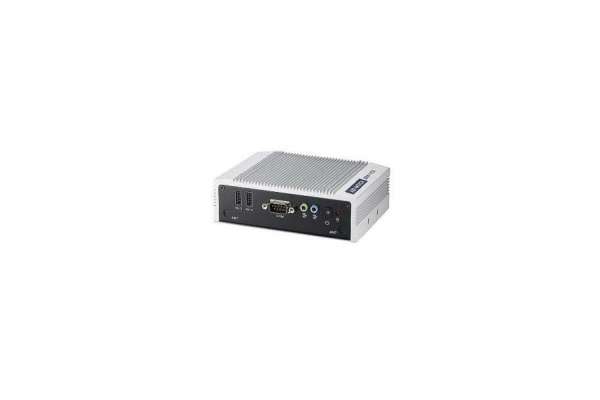

● Advantech ARK-1122H - 2 independent video outputs - VGA and HDMI, 4 USB 2.0 ports, 1 Gigabit Ethernet port, 1 RS-232 serial port. ARK-1122H compact computers have a 2.5" hard drive or SSD, and there is also a full-sized mini PCIe slot for installing solid-state drives (SSDs) with an mSATA interface.

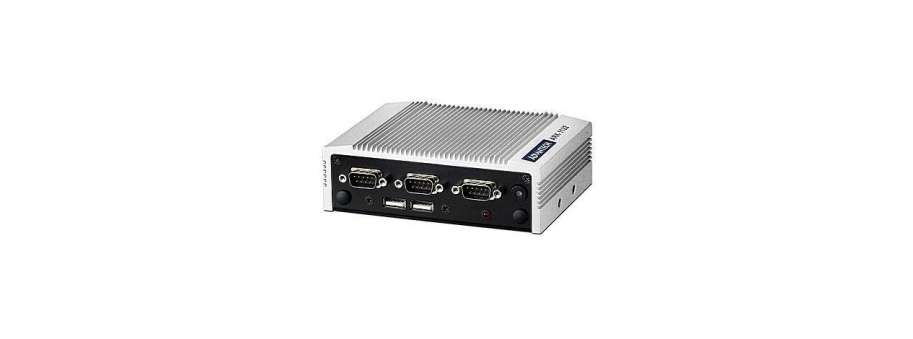

● Advantech ARK-1122C - 4 USB 2.0 ports, 1 Gigabit Ethernet port, 4 RS-232 serial ports, 2 of them can work as RS-485 interface. To connect the drive in compact computers ARK-1122C provides a full-sized mini PCIe slot for installing solid-state drives (SSD) with mSATA interface.
Industrial computers Advantech ARK-1122 are running on the following operating systems: Windows 7, Windows 7 Embedded, Windows XP Embedded, WinCE 7.0, Linux (including Ubuntu).


Standard equipment:

● Compact Advantech ARK-1122 computer with Intel Atom processor;
● External power supply 220V 12V / 3A with screw fixing of the connector on the computer case;
● Brief user manual.


Options available to order:

● 1, 2 or 4 GB SO-DIMM DDR3 RAM module for commercial (-0 ° ~ 60 ° C) or extended (-40 ° ~ 80 ° C) temperature range;
● Hard drive or SSD 2.5 "(for ARK-1122H or ARK-1122F) or solid state drive in mSATA format (for ARK-1122C) for commercial (-0 ° ~ 60 ° C) or extended (-40 ° ~ 80 ° C) temperature range;
● Half-length mini PCIe wireless module - WiFi, 3G, or GPS;
● Installation kit for installing the computer on the table;
● VESA mounting kit;
● DIN rail mounting kit;
● The operating system is Windows 7, Windows 8 / 8.1.

Old model ARK-1122C-S6A1E, new model - ARK-1124C-S1A1E

Old models ARK-1122F-S8A1E; ARK-1122H-S6A1E new model - ARK-1123H-U0A2E

Old model ARK-1122HS-S6A1E, new model - ARK-1123/ARK-1124

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-1124C-S1A1E Компактний промисловий комп'ютер Advantech ARK-1124C, Intel Celeron N3350 DC 1.1GHz w/4*COM+VGA  14 444,4
ARK-1123H-U0A2E Компактний промисловий комп'ютер Advantech ARK-1123H, Intel Celeron QC J1900 2.0GHz, w/dual HDMI+GbE D1,БЖ у комплекті  17 621,5 Доступно

Additional information

Модель
ARK-1122H
ARK-1122C
ARK-1122F
Производится
Массовое производство
Ориентировочная доступность до
2018 Q4
Processor System
Процессор
Intel Atom N2600 1.6GHz
Intel Atom N2800 1.86GHz
System Chipset
Intel® NM10 Express Chipset
BIOS
AMI EFI 16Mbit
System Memory
Up to 4GB DDR3 800MHz SODIMM
Up to 4GB DDR3 1066MHz SODIMM
Display Interface
CRT
Yes
Yes
Yes
HDMI
Yes

Yes
I/O Interface
Audio
High Definition Audio,
Line-in, Line-out

High Definition Audio,
Line-in, Line-out
Ethernet
1 x Gbe LAN
(Support WOL)
1 x Gbe LAN
(Support WOL)
2 x Gbe LAN
(Support WOL)
USB
4 x USB 2.0
4 x USB 2.0
3 x USB 2.0
Serial Port
1 x RS-232
2 x RS-232,
2 x RS-232/422/485, support auto flow control
1 x RS-232
Expansion
1 x half size mini PCIe
1 x half size mini PCIe
1 x half size mini PCIe
1 x full size mini PCIe with SIM card holder
Storage System
mSATA
1 x Full size mini-PCIe slot
1 x Full size mini-PCIe slot
1 x Full size mini-PCIe slot
HDD Drive Bay
1 x 2.5" SATA HDD/SSD
  (by T-P/N request)
Power Supply
Power Management
APM 1.2, ACPI 2.0
Input Voltage
AC to DC adapter DC12V/3A 36W, support lackable DC Jack

Mounting
support VESA, Desk and DIN-rail mounting
Dimensions (W x H x D)
133.8 x 43.1 x 94.2 mm (5.27" x 1.70" x 3.71")
Weight
0.7Kg
Operation Environment
Operating Temperature
-20°~60°C (With extended temperature SSD/mSATA devices) &
0~40? (With standard temperature HDD/SSD/mSATA devices)
Vibration During Operation
with SSD/mSATA: 3Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis
Shock During Operation
with SSD/mSATA: 30G, IEC 60068-2-64, half sine, 11ms duration
Relative Humidity
95% @ 40° C (non-condensing)
EMC
CE/FCC Class A, BSMI, CCC
Safety
UL,CB,CCC,BSMI
Embedded Software Options
WIN7 Pro, WES7, WES2009 (ARK-1122C)
