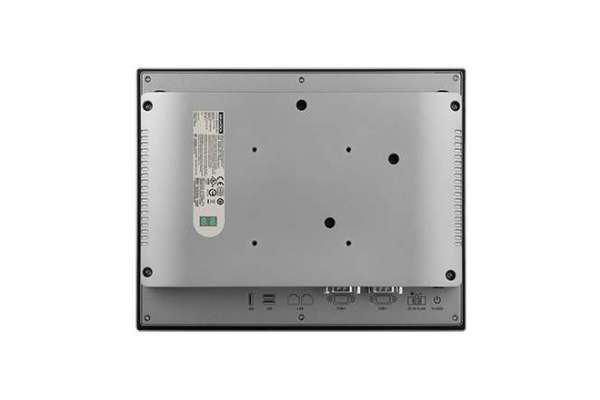

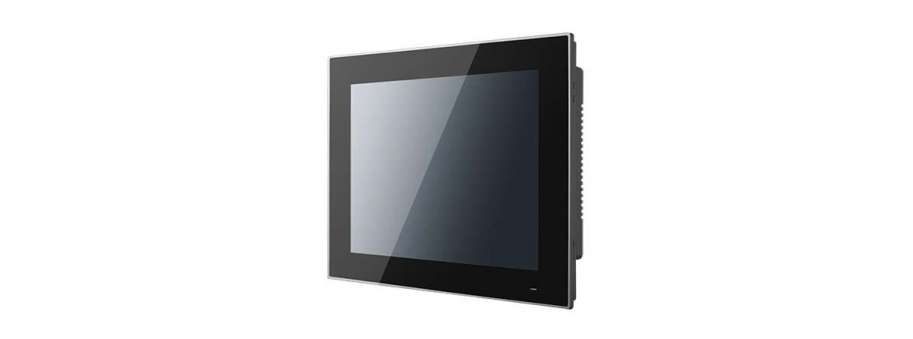

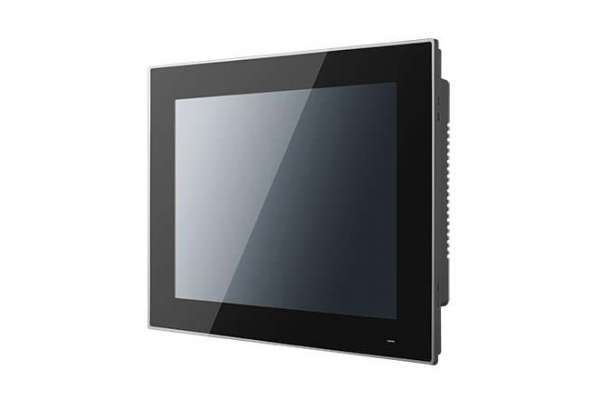

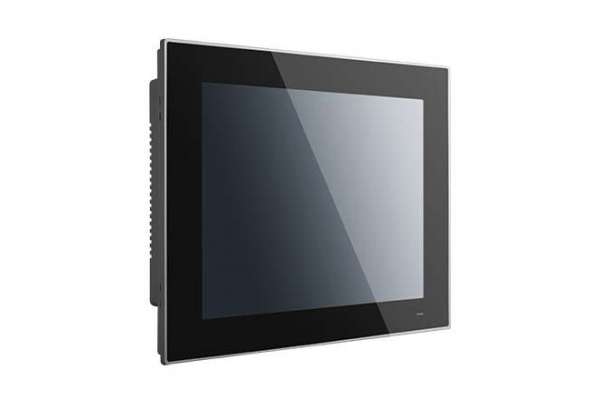

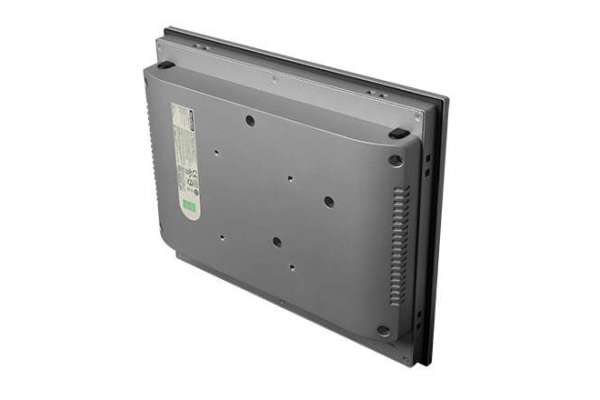

12" TrueFlat Panel PC PPC-3120S with Intel Celeron

12.1" XGA TrueFlat IP65 Panel PC Advantech PPC-3120S with fanless low power Intel Celeron N2930 Processor

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Industrial 12.1" TFT XGA LED panel with 30k (min.) lifetime backlight
  • Durable 5-wire Resistive Touch Screen
  • Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
  • System memory up to 8 GB DDR3L SDRAM
  • Compact Fanless Design with solid AI Alloy enclosure
  • True-flat with IP65 certified front panel protection
  • E-Eye Monitoring and Protection
  • Supports Full-size Mini PCIe Expansion
  • Supports USB 3.0
  • Supports Windows Embedded and Android
  • Supports VESA 75

The PPC-3120S high value ultraslim Panel PC with a 12.1" XGA LCD, low power Intel® Celeron N2930 1.86GHz Processor provides high computing performance in compact fanless embedded system. With a high durability design,the PPC-3120S is equipped with a true-flat touch screen with IP65 front panel protection,die-cast AI Alloy enclosure and 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in PPC-3120S rear cover gives a clear signal of system operating status, helping people detecting and analysis.

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-3120S-RAU Панельний комп'ютер Avantech Intel Celeron N2930 fanless 12.1" Panel PC  34 391,0
PPC-3120S/N2930/4G/128G/PS/W10ELTSB/(PROMO) Панельный компьютер Intel Celeron N2930 fanless 12.1" / 4Gb/ 128G mSATA SSD / Power Supply / Windows 10 Enterprise LTSB  43 136,8
PPC-3120S-RAE Панельний комп'ютер Advantech PPC-3120S, Intel Celeron N2930 fanless 12.1" Panel PC  32 827,7 Доступно
PPC-3100S-HDDE Монтажний набір для встановлення 2.5" SATA HDD/SSD module for PPC-31xxS  699,8
SQF-SMSM4-128G-S9C Твердотільний диск/накопичувач SQF MSATA 630 128G MLC (0~70°C)  5 832,6
SQF-SMSM4-64G-S9C Твердотільний диск/накопичувач SQF MSATA 630 64G MLC (0~70°C)  3 301,6
AQD-SD3L4GN16-SG Модуль пам'яті (ОЗП) 4G SO-DDR3-1600 512X8 1.35V SAM(G)  2 208,8
96PSA-A90W19OT-1 Блок живлення 19V DC power 100-240V 90W 1 (PHOENIX, 170203183C или PC-186-ML12)  886,6
EWM-W157H01E Модуль беспроводной связи 802.11 a/b/g/n/ac,RTL8821AE,with BT4.0  964,9 Доступно
PPC-ARM-A03 Монтажный набор PPC ARM VESA Standard (A-CLEVER)  7 839,7
PPC-174T-WL-MTE Монтажний набір Wall mount kit A800B for PPC-174T  3 239,7
2070014473 Програмне забезпечення/образ системи Image WEC7 PPC-3120S MUI v4.01  2 007,2
2070014419 Образ системи та ліцензія Image WS7P 64-bit PPC-3xx0S Multi V4.14  4 993,8
2070014862 Образ системи та ліцензія Image WIN10ENT LTSB 64-bit PPC-3xx0S Multi V6.01  2 946,3

Additional information

Power Supply


Power Consumption

18W (Burn-in test 7.0 in Windows 7 32 bit)

Input Voltage

12-24 VDC

LCD Display


Viewing Angle (H/V°)

80 (left), 80 (right), 70 (up), 70 (down)

Luminance (cd/m2)


Contrast Ratio


Display Type

12.1" TFT LCD (LED Backlight)

Backlight Life

30,000 hrs (Min.)



Relative Humidity

10 ~ 95% @ 40°C non-condensing





Operating Temperature

0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD

Storage Temperature

-40 ~ 60°C (-40~140°F)

Front Panel Protection

IP65 Compliant


Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64


Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Processor System



1 x SO-DIMM, DDR3L 1333, Max 8 GB


1.83 GHz

I/O Ports

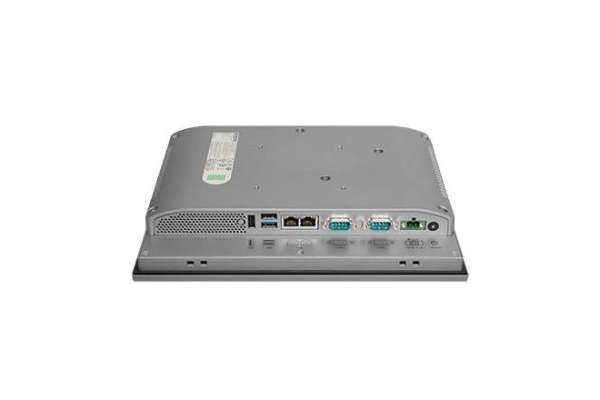

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211)

Storage 1

1 x 2.5" SATA bay, 1 x mSATA bay

Watchdog Timer

255 timer levels; setup by software


Intel® Celeron® N2930, Quad core

Expansion Slots

1 x Full size Mini PCIe slot



Light Transmission

80±5% at 550 nm wavelength


RS-232 interface

Durability (Touches)

Greater than 35 million touches in one location without failure

Touch Type

Elo Resistive 5 wires

OS Support


OS Support

Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/Android 4.4

Physical Characteristics



317 x 246 x 49 mm(12.5" x 9.7" x 1.9")


2.1 Kg (4.63 lb)
