Managed Ethernet Switch EKI-9512

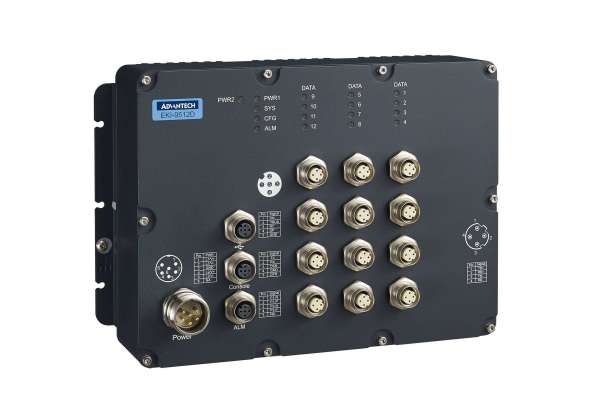

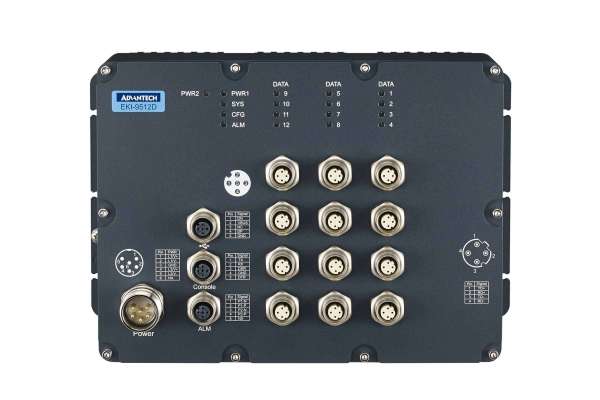

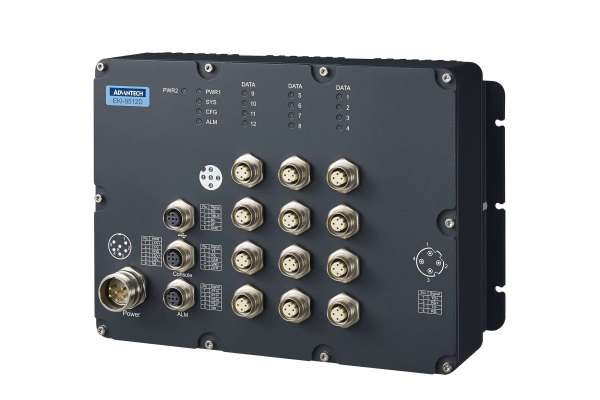

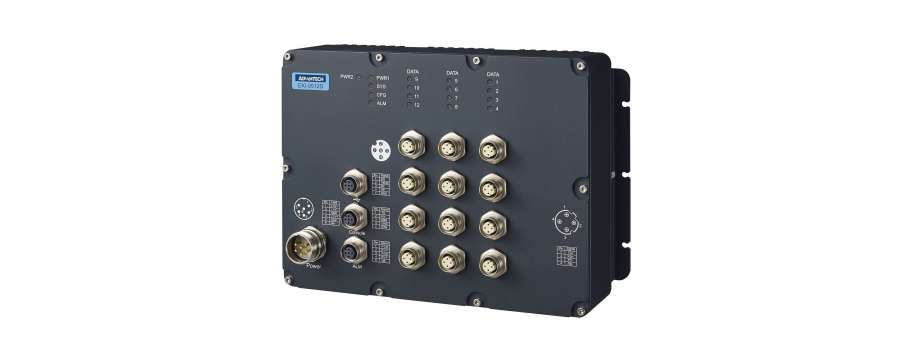

EN50155 12 port Managed Ethernet Switch Advantech EKI-9512 with POE, IP67 protection and M12 connection

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Complies with EN50155.

EKI-9512 M12 Managed Ethernet Switch series is designed for railway applications, including rolling stock. Advantech EKI-9512 switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock.

All 10/100 Mbps and Gigabit connections support dual ring protection and non-blocking traffic forwarding. X-Ring Pro supports rapid and predictable convergence.

Advantech EKI-9512 series provides a wide power input range of 24/36/48/72/96/110 VDC; the dual, isolated power input increases the reliability of your communications system. The -40 to 70° C operating temperature and IP67-rated waterproof enclosure allow deployment in harsh environments. EKI-9512 is compliant with the essential sections of the European railway standard EN 50155, EN50121-3-2 covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications

There are few different models in series with different port speed, POE support and acceptable input power

Model Name

Ordering P/N

PoE, 10/100/1000 Mbps M12 X-Coded

10/100/1000 Mbps M12 X-Coded

PoE, 10/100 MbpsM12 D-Coded

10/100 Mbps M12 D-Coded

Input Power

EKI-9512P-HV

EKI-9512-P0IDH10E

8

4

HV (72V/96V/110 VDC)

EKI-9512P-LV

EKI-9512-P0IDL10E

8

4

LV (24V/36V/48 VDC)

EKI-9512-WV

EKI-9512-C0IDW10E

12

WV (24/36/48/72V/96V/110 VDC)

EKI-9512DP-HV

EKI-9512-PFIDH10E

8

4

HV (72V/96V/110 VDC)

EKI-9512DP-LV

EKI-9512-PFIDL10E

8

4

LV (24V/36V/48 VDC)

EKI-9512D-WV

EKI-9512-CFIDW10E

12

WV (24/36/48/72V/96V/110 VDC)

POE Managed Ethernet Switch Advantech EKI-9512P and EKI-9512DP.

EKI-9512P provides 12 Gigabit Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE /PoE ports.

EKI-9512DP provides 12 Fast Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE /PoE ports.

EKI-9512DP and EKI-9512P provides a wide power input range of 24/36/48 VDC, 72/96/110 VDC;

The PoE+/PoE switch is classified as power source equipment (PSE) and provides up to 30/15.4 watts of power per port, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

  • IEEE 802.3at PoE+ to supply 30W power
  • IEEE 802.3af PoE to supply 15.4 power
  • IEEE 802.3af/802.3at per port with system PoE power management
  • Provides M12 connector with IP67 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9512-C0IDW10E Управляемый промышленный коммутатор Advantech Train Switch 12* M12 X 1G Port WV  72 426,7
EKI-9512-CFIDW10E Управляемый промышленный коммутатор Advantech Train Switch 12x M12 FE Port WV  62 791,4
EKI-9512-P0IDH10E Управляемый промышленный коммутатор Advantech Train Switch 12* M12 X 1G Port w/ 8* PoE Port HV  88 311,6
EKI-9512-P0IDL10E Управляемый промышленный коммутатор Advantech Train Switch 12* M12 X 1G Port w/ 8* PoE Port LV  90 922,6
EKI-9512-PFIDH10E Управляемый промышленный коммутатор Advantech Train Switch 12x M12 FE Port w/ 8* PoE Port HV  82 062,0
EKI-9512-PFIDL10E Управляемый промышленный коммутатор Advantech Train Switch 12x M12 FE Port w/ 8* PoE Port LV  84 470,5

Additional information

Mechanism



Dimensions (W x H x D)

254 x 64.5 x 174 mm

Enclosure

Metal

IP Rating

IP67

Mounting

Wall mount



Environment



Operating Temperature

-40 ~ 70°C (40~158°F)

Temperature (Storage)

- 40 ~ 85° C (-40 ~185° F)

Relative Humidity (Non-condensing)

10 ~ 95%



MTBF



Method

Telcordia(Relax), GB



Power Requirements



Operating Voltage

Dual 24~110VDC

Power Consumption

26.4W (system)

Connectors

M23 (power )

Reverse Polarity

Present



Certification



EMI

CE, FCC Class A

EMC

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Rail Traffic

EN 50155; EN50121-3-2



Warranty



Warranty Period

5 years
