Managed Ethernet Switch EKI-9516

EN50155 16 port Managed Ethernet Switch Advantech EKI-9516 with POE, IP67 protection and M12 connection

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Complies with EN50155.

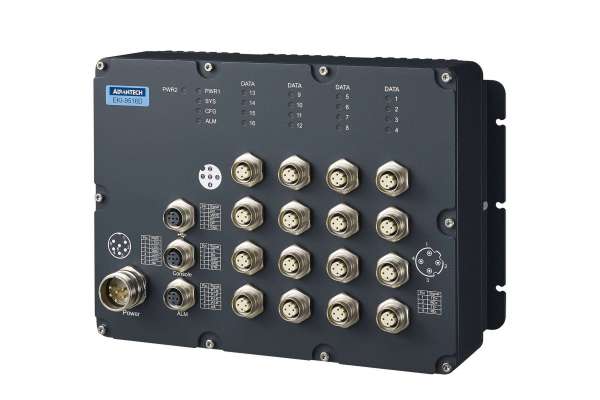

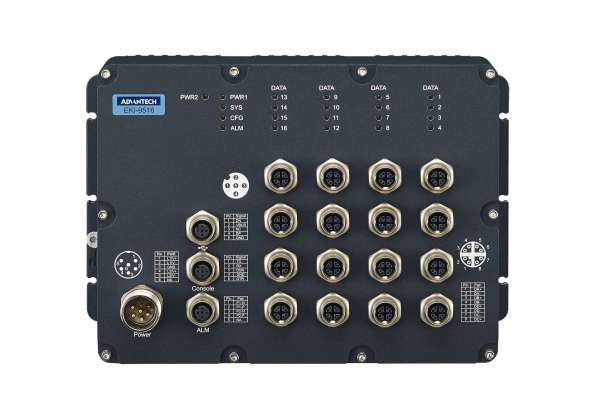

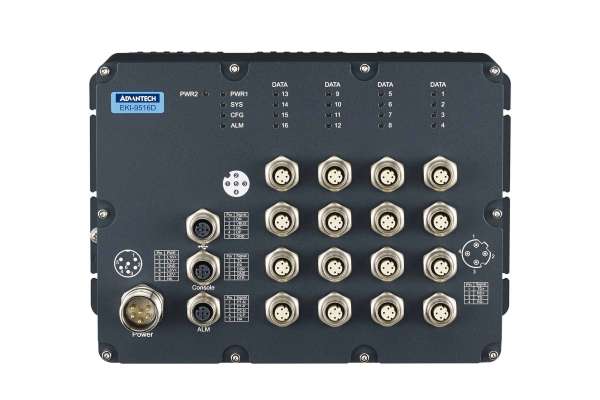

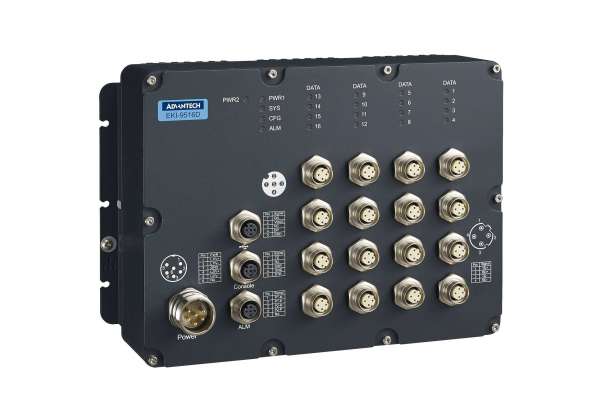

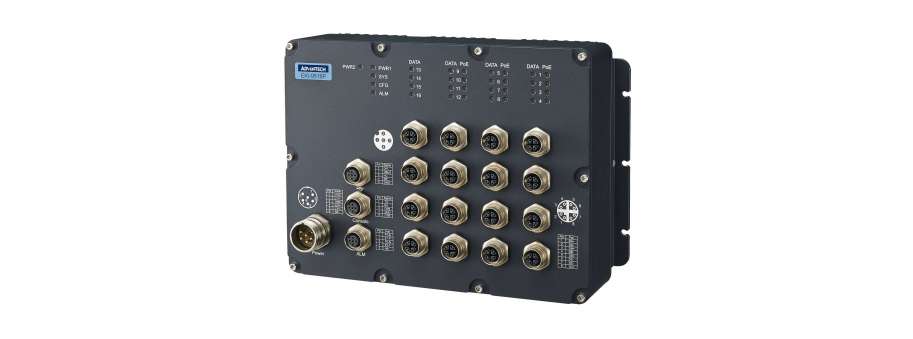

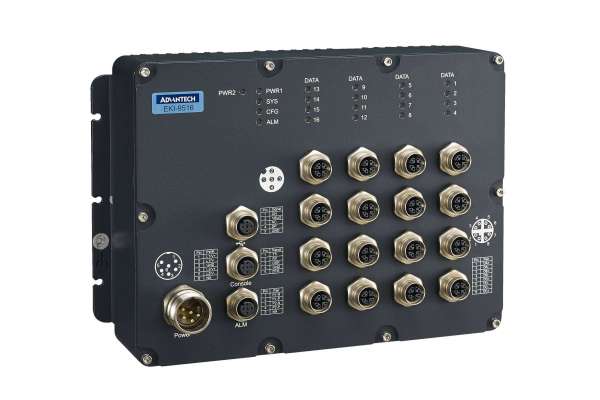

Advantech EKI-9516 Managed Ethernet Switch series is designed for railway applications, including rolling stock. EKI-9516 switches use M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock.

All 10/100 Mbps and Gigabit connections support dual ring protection and non-blocking traffic forwarding. X-Ring Pro supports rapid and predictable convergence.

Advantech EKI-9516 series provides a wide power input range of 24/36/48/72/96/110 VDC; the dual, isolated power input increases the reliability of your communications system. The -40 to 70° C operating temperature and IP67-rated waterproof enclosure allow deployment in harsh environments. EKI-9516 is compliant with the essential sections of the European railway standard EN 50155, EN50121-3-2 covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications

There are few different models in series with different port speed, POE support and acceptable input power

Model Name

Ordering P/N

PoE, 10/100/1000 Mbps M12 X-Coded

10/100/1000 Mbps M12 X-Coded

PoE, 10/100 MbpsM12 D-Coded

10/100 Mbps M12 D-Coded

Input Power

EKI-9516P-HV

EKI-9516-P0IDH10E

12

4

HV (72V/96V/110 VDC)

EKI-9516P-LV

EKI-9516-P0IDL10E

12

4

LV (24V/36V/48 VDC)

EKI-9516-WV

EKI-9516-C0IDW10E

16

WV (24/36/48/72V/96V/110 VDC)

EKI-9516DP-HV

EKI-9516-PFIDH10E

12

4

HV (72V/96V/110 VDC)

EKI-9516DP-LV

EKI-9516-PFIDL10E

12

4

LV (24V/36V/48 VDC)

EKI-9516D-WV

EKI-9516-CFIDW10E

16

WV (24/36/48/72V/96V/110 VDC)

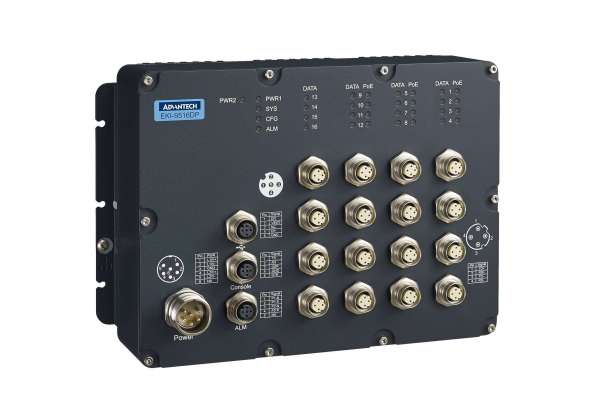

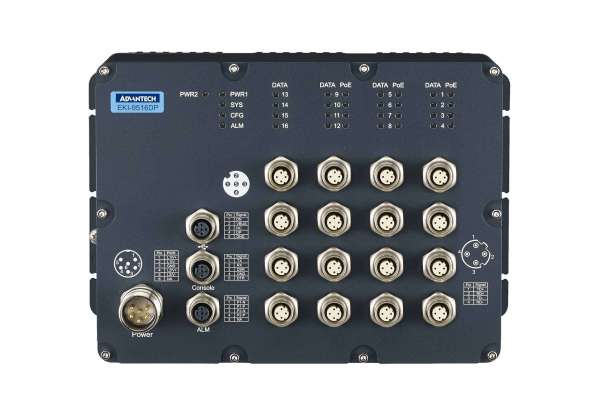

POE Managed Ethernet Switch Advantech EKI-9516P and EKI-9516DP.

EKI-9516P provides 16 Gigabit Ethernet M12 ports with 12 IEEE 802.3at/af compliant PoE /PoE ports.

EKI-9516DP provides 16 Fast Ethernet M12 ports with 12 IEEE 802.3at/af compliant PoE /PoE ports.

EKI-9516DP and EKI-9516P provides a wide power input range of 24/36/48 VDC or 72/96/110 VDC;

The PoE+/PoE switch is classified as power source equipment (PSE) and provides up to 30/15.4 watts of power per port, and can be used for IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

  • IEEE 802.3at PoE+ to supply 30W power
  • IEEE 802.3af PoE to supply 15.4 power
  • IEEE 802.3af/802.3at per port with system PoE power management
  • Provides M12 connector with IP67 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9516-C0IDW10E Управляемый промышленный коммутатор Advantech Train Switch 16* M12 X 1G Port WV  79 071,5
EKI-9516-CFIDW10E Управляемый промышленный коммутатор 16x M12 Managed Ethernet Switch, including 24/36/48/72/96/110 VDCdual power inputs  63 713,8
EKI-9516-P0IDH10E Управляемый промышленный коммутатор Advantech Train Switch 16* M12 X 1G Port w/ 12* PoE Port H  101 592,0
EKI-9516-P0IDL10E Управляемый промышленный коммутатор Advantech Train Switch 16* M12 X 1G Port w/ 12* PoE Port L  104 584,0
EKI-9516-PFIDH10E Управляемый промышленный коммутатор Advantech Train Switch 16* M12 FE Port w/ 12* PoE Port HV  88 723,0
EKI-9516-PFIDL10E Управляемый промышленный коммутатор Advantech Train Switch 16*M12 X FE Port w/ 12* PoE Port LV  91 328,8

Additional information

Mechanism



Dimensions (W x H x D)

254 x 64.5 x 174 mm

Enclosure

Metal

IP Rating

IP67

Mounting

Wall mount



Environment



Operating Temperature

-40 ~ 70°C (40~158°F)

Temperature (Storage)

- 40 ~ 85° C (-40 ~185° F)

Relative Humidity (Non-condensing)

10 ~ 95%



MTBF



Method

Telcordia(Relax), GB



Power Requirements



Operating Voltage

Dual 24~110VDC

Power Consumption

26.4W (system)

Connectors

M23 (power )

Reverse Polarity

Present



Certification



EMI

CE, FCC Class A

EMC

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Rail Traffic

EN 50155; EN50121-3-2



Warranty



Warranty Period

5 years
