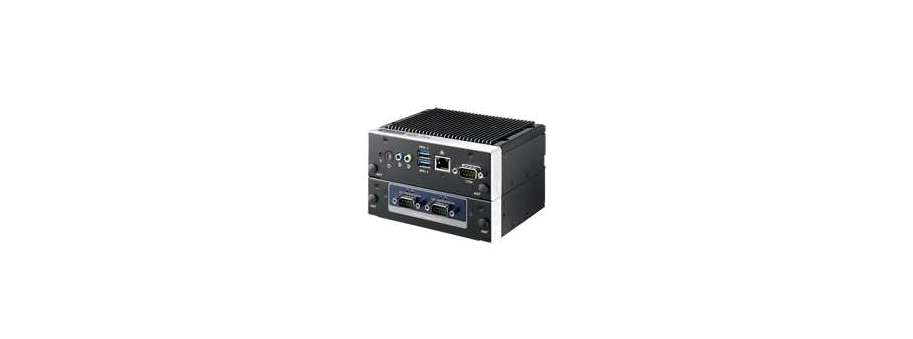

Modular Fanless Embedded PC Intel Atom™ E3940 QC SoC With Dual HDMI Advantech ARK-1124H
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-1124H-S6A3 | Компактний промисловий комп'ютер Advantech ARK-1124, Intel Atom™ E3940 QC , 2xHDMI/ 2xLAN/ 4xUSB, 1xCOM, блок живлення в комплекті | 29 590,2 | Доступно |
| AQD-SD3L2GN16-SQ | Модуль пам'яті (ОЗП) 2G SO-DDR3-1600 256X8 1.35V SAM(G) | 1 633,9 | |
| AMK-R001E | Монтажний набір для кріплення на DIN-рейку ARK-11XX series | 1 810,0 | Доступно |
| AMK-W001E | Монтажний набір ARK-11XX series wall mount kits | 1 020,4 | Доступно |
| AQD-SD3L4GN16-SQ | Модуль пам'яті (ОЗП) 4G SO-DDR3-1600 256X8 1.35V SAM | 2 934,9 | |
| ARK-1124H-S6A3 | Компактний промисловий комп'ютер Advantech ARK-1124, Intel Atom™ E3940 QC , 2xHDMI/ 2xLAN/ 4xUSB, 1xCOM, блок живлення в комплекті | 29 590,2 | Доступно |
| SQF-S25M4-64G-SBC | Твердотільний диск/накопичувач SQF 2.5" SSD 640 64G MLC (0~70°C) | 5 387,3 | |
| 96FD25-S128-TR7 | Твердотільний диск/накопичувач Transcend 370 SSD 128GB 2.5" SATAIII, MLC 7mm | 7 909,0 | |
| AMK-V006E | Кріплення ARK-112x Panel Mounting Kit | 4 116,3 | |
| 170203183C | Кабель живлення, POWER Code 3P Europe (WS-010+WS-083)183cm | 303,2 | Доступно |
| 2070015307 | Операционная система img W10 16EL ARK-1124C 64b 1701 ENU | 4 575,6 |

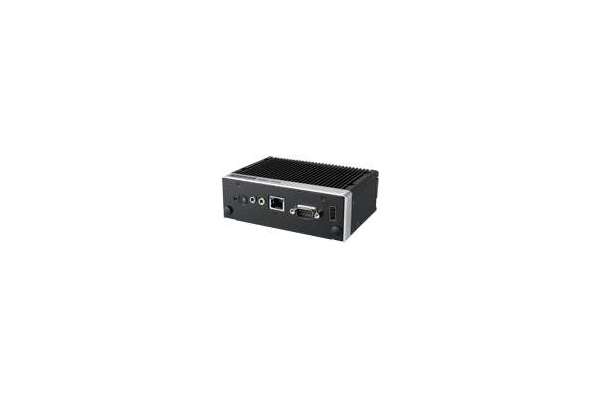

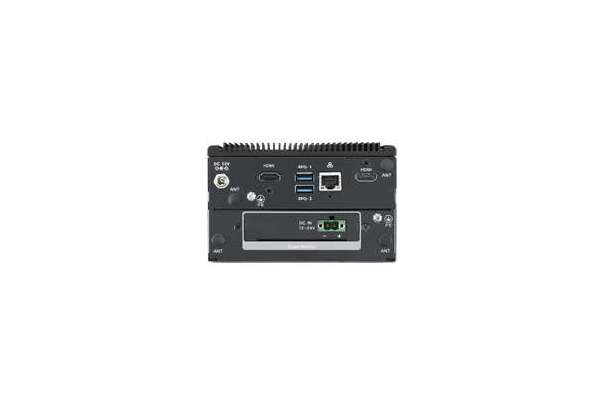

Intel Atom™ E3940 QC SoC With Dual HDMI/ Dual LAN/ Four USB Modular Fanless Box PC
- Intel Atom E3940 Quad Core SoC
- Dual HDMI independent display support 4k2k resolution
- 1 x Full-size miniPCIe with SIM holder for communication module
- 1 x M.2 E Key for WIFI module
- 1 x 2.5" SATA III SSD/HDD and 1 x mSATA
- TPM built in for well security
- -20 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Optional 12~24V power module (Dual Layer)
- Advantech iDoor module compatible (Dual Layer)
- Advantech WISE-PaaS/RMM support
Additional information
Product Specifications
|
|
ARK-1124U-S1A1E |
|
|---|---|---|
|
Processor |
CPU |
Intel Atom™ E3940 Quad Core SoC |
|
Core Number |
4 |
|
|
Frequency |
1.6 GHz, turbo burst 1.8GHz |
|
|
L2 Cache |
2 MB |
|
|
BIOS |
AMI EFI 64 Mbit |
|
|
Memory |
Technology |
DDR3L 1866 MHz |
|
Max. Capacity |
8 GB |
|
|
Socket |
1 x 204-pin SO-DIMM |
|
|
Graphics |
Chipset |
Intel® HD Graphics 500 |
|
Graphic Engine |
4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG |
|
|
HDMI |
HDMI 1.4b 3840 x 2160 @ 30Hz |
|
|
Dual Display |
Yes, HDMI + HDMI, dual display support 4K2K resolution |
|
|
Audio |
Interface |
Realtek ALC888S, High Definition Audio. Line-out, Line-in |
|
Ethernet |
LAN1 |
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
|
LAN2 |
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
|
|
I/O |
I/O |
1 x RS-232/422/485 port with auto flow control |
|
USB |
4 USB 3.0 |
|
|
Others |
Watchdog timer |
255 levels timer interval, setup by software |
|
|
|
|
|
Expansion |
Mini PCIe |
1 x full-size mPCIe for WLAN/WWAN with nano SIM holder |
|
iDoor Module |
1, optional (2nd layer) |
|
|
M.2 |
1 x M.2 E- key for WIFI |
|
|
Storage |
2.5" HDD/SSD |
Supports 1 x 2.5" SATA III Drive Bay (Compatible with 9.5mm height) |
|
mSATA |
1x Half-size mSATA (by CTOS or T-PN) |
|
| Software Support | Microsoft Windows |
Windows 10 Enterprise, Windows 10 IoT Core |
|
Linux |
Support by project |
|
|
Power |
Input Voltage |
12VDC (Optional 12~24V power module) |
|
Power Adaptor |
AC to DC, DC12 V/5 A, 60 W with lockable DC Jack |
|
|
Power Type |
AT/ATX |
|
|
Consumption |
Typical 6.02 W, Max. 33.7 W |
|
|
Mechanical |
Construction |
Aluminum housing |
|
Mounting |
DIN-Rail/Wall/VESA Mounting Kits (Optional) |
|
|
Dimensions |
133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") |
|
|
Weight |
0.7 кг (1.55 lb) |
|
|
Environment |
Operational Temperature |
With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow |
|
Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
|
|
Relative Humidity |
95% @ 40° C (non-condensing) |
|
|
Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis |
|
|
Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration |
|
|
Certification |
EMC |
CE/FCC Class В, CCC, BSMI |
|
Safety Certifications |
UL, CB, CCC, BSMI |
